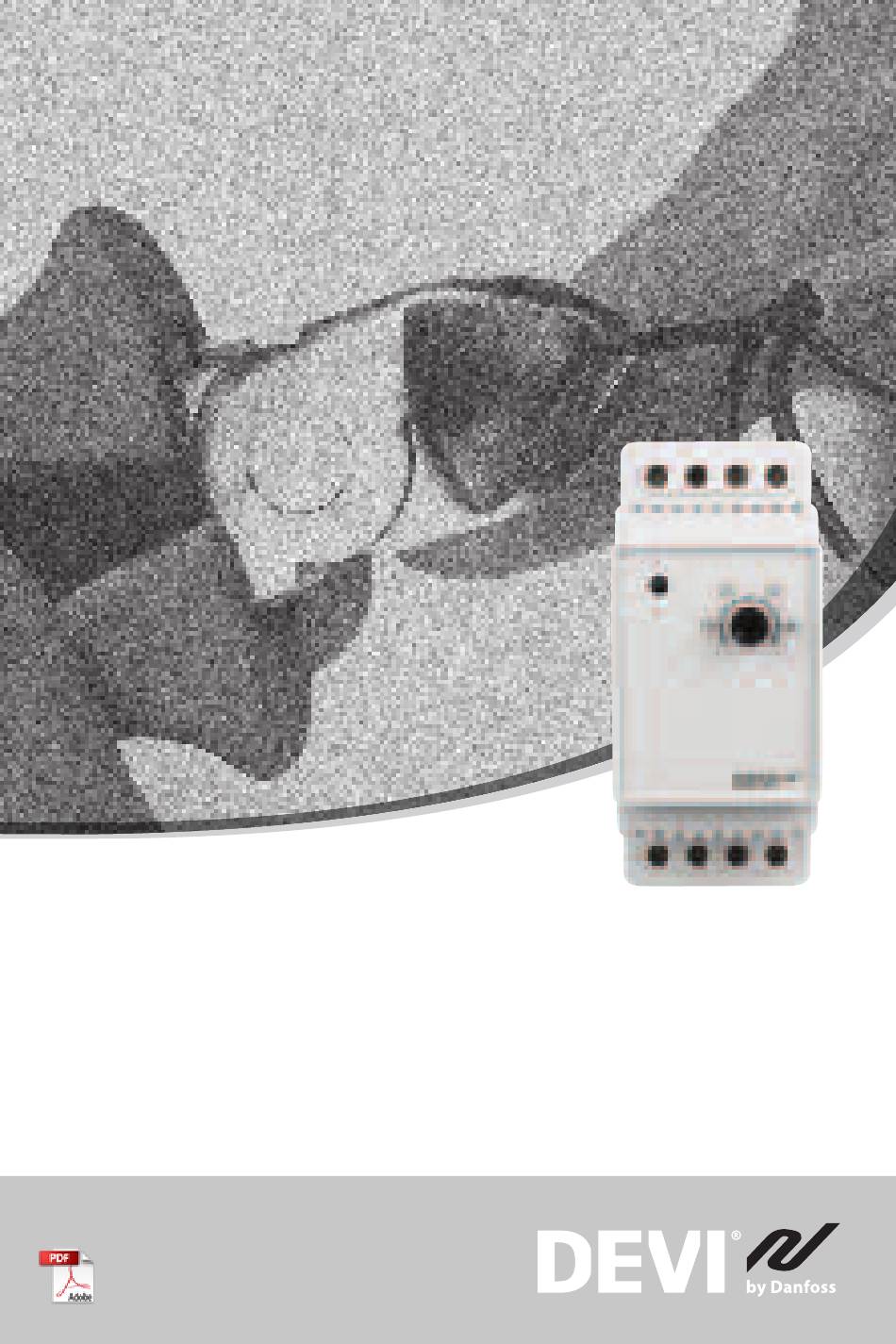

- Page 1 Installation Guide DEVIreg™ 330 (+5 to +45°C) Electronic Thermostat www.DEVI.com...
-
Page 3: Table Of Contents
DEVIreg™ 330 (+5 to +45°C) Table of Contents Introduction ....... . . 3 Technical Specifications . -
Page 4: Technical Specifications
DEVIreg™ 330 (+5 to +45°C) Technical Specifications Operation voltage 220-240 V~, 50 Hz Standby power consumption Max 0,25 W Relay: Resistive load Max 16 A / 3680 W @ 230 V Inductive load cos φ= 0,3 max1A Sensing units NTC 15 kOhm at 25 °C Sensing values: 0 °C 42 kOhm... -
Page 5: Safety Instructions
DEVIreg™ 330 (+5 to +45°C) Protection class Class II Dimensions 86 x 36 x 58 mm Weight 83 g The product complies with the EN/IEC Standard “Automatic electrical controls for household and similar use”: • EN/IEC 60730-1 (general) • EN/IEC 60730-2-9 (thermostat) Safety Instructions Make sure the mains supply to the thermostat is turned off before installation. -
Page 6: Mounting Instructions
DEVIreg™ 330 (+5 to +45°C) • Always connect the thermostat to continuous power supply. • Do not expose the thermostat to moisture, water, dust, and excessive heat. Mounting Instructions Please observe the following placement guidelines: • Install the thermostat in an electric cabinet with DIN rail attachment or a separate DIN attachment accord- ing to local regulation on IP classes. - Page 7 DEVIreg™ 330 (+5 to +45°C) The screen of the heating cable must be connected to the earth conductor of the power supply cable by using a separate connector. Note: When you use the wire sensor for floor heating, always install the sensor in a conduit. Turn on the power supply.
-
Page 8: Settings
DEVIreg™ 330 (+5 to +45°C) Settings If a floor sensor is used, please be aware of the following: • The floor temperature is measured where the sensor is placed. • The temperature of the bottom of a wooden floor can be up to 10 degrees higher than the top. -
Page 9: Warranty
All work will be invoiced in full if Danfoss is required to inspect or repair faults that have arisen as a result of any of the above. The DEVIwarranty shall not extend to products which have not been paid in full. - Page 10 WARRANTY CERTIFICATE The DEVIwarranty is granted to: Address Stamp Purchase date Serial number of the product Product Art. No. *Connected output [W] Installation Date Connection Date & Signature & Signature *Not mandatory...
-
Page 11: Disposal Instruction
DEVIreg™ 330 (+5 to +45°C) Disposal Instruction Danfoss A/S Nordborgvej 81 6430 Nordborg, Syddanmark Denmark 08091289 & AQ087986471595en-020204 Produced by Danfoss © 01/2023... - Page 12 Designed in Denmark for Danfoss A/S For UK customer only: Importer: 5 703466 209226 5 7 0 3 4 6 6 2 0 9 2 3 3 Danfoss Ltd., 22 Wycombe End, HP9 1NB, GB...
