Sway Bracing for High Air Movement and Outdoor Applications

Sway Bracing for High Air Movement and Outdoor Applications
For high air movement and outdoor applications, install side restraints (field supplied) to reduce side to
side swaying as shown in Fig. 3.10. Side restraints should be installed so that they are angled at 45° ± 10°
and should be placed at every designated suspension point. It may be necessary to add additional support
structures at the ceiling level for the connection of these side suspensions. Apply longitudinal (forward/
backward) bracing (P/N: THGH10-3 or field supplied) at each reflector hanging bracket. The desired
suspension material shall have a minimum work load rating of 200 pounds.

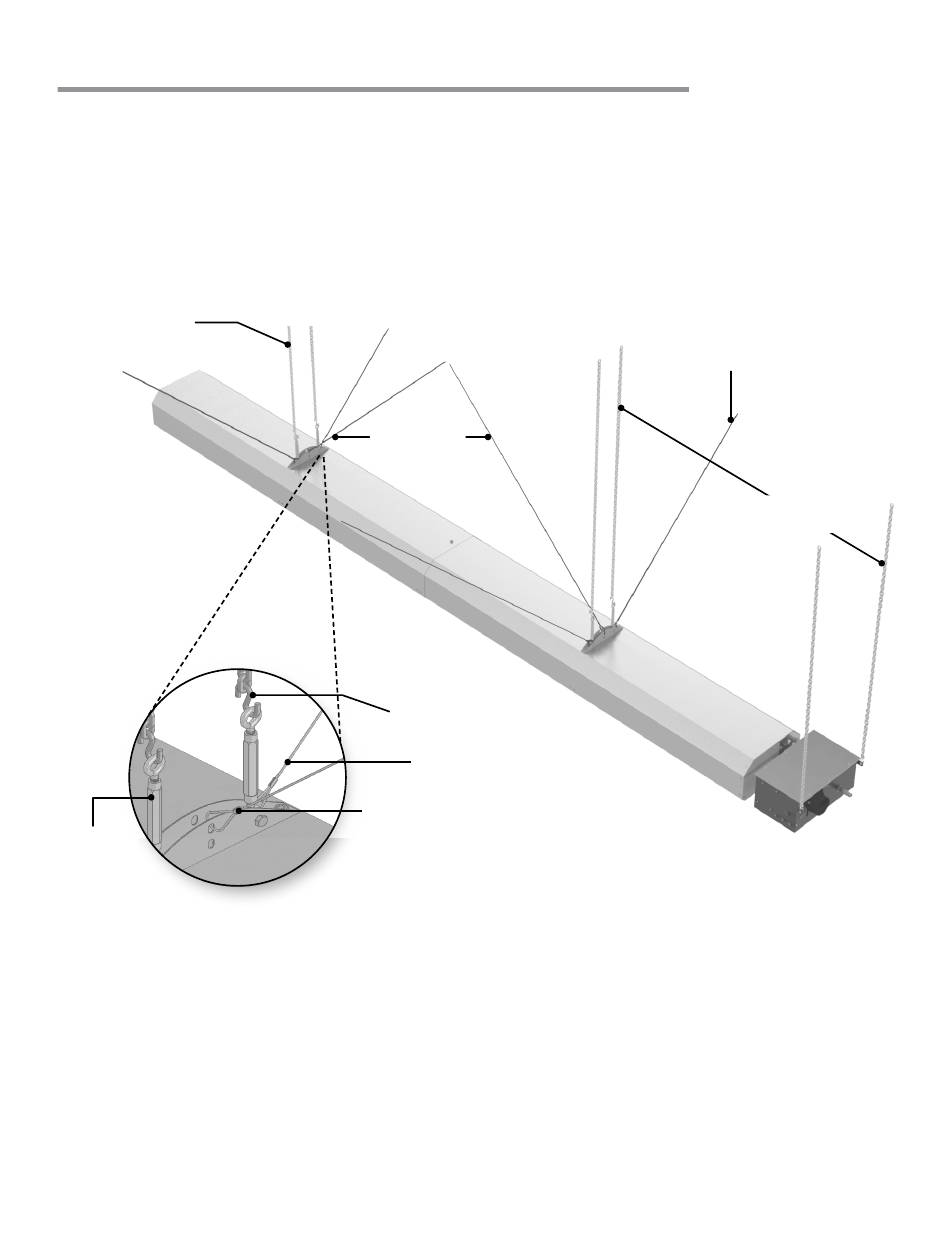

Figure 3.10 • Heater with Sway Bracing Installation
1/0 Stainless Steel
Bulldog Chain
Turnbuckle
(P/N: DS-TB)
Longitudinal
Bracing
(P/N: THGH10-3
or Field
Supplied)
Stainless Steel
S-Hook
Side Restraint
Longitudinal Bracing
16
MRL Series
Side Restraints
(Field Supplied)
1/0 Stainless Steel
Bulldog Chain
