Heater Dimensions; Recommended Mounting Heights - Modine Manufacturing MRL Series Installation And Service Manual

MRL Series

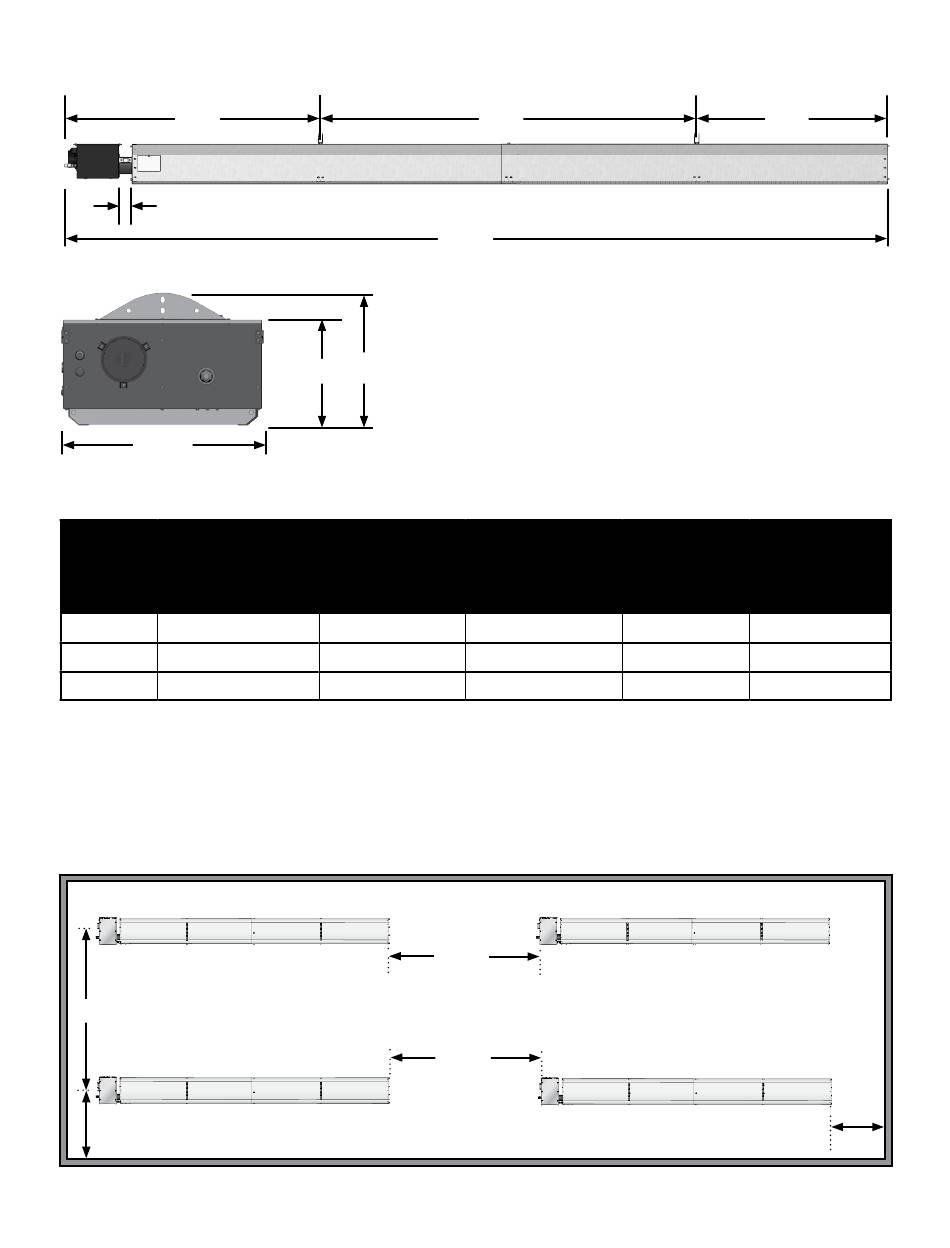

Figure 3.1 •

Heater Dimensions

59.4"
3.25"
18.25"
END VIEW
Chart 3.1 • Recommended Mounting Heights and Coverages for MRL Series Heaters
Typical or
Max. Input Recommended
(BTU/h) Mounting Height*
65,000 9' - 16'
80,000 9' - 16'
100,000 9' - 16'
* Factory recommended mounting heights are listed as a guideline. If infrared heaters are mounted too low
or too high, they may result in discomfort due to excessive heat or lack of heat. Modine generally
recommends observing the recommended mounting heights to optimize comfort conditions. However,
certain applications such as spot heating, freeze protection, outdoor patio heating or very high ceilings
may result in the heaters being mounted outside of the factory recommended mounting heights.
Figure 3.2 • Mounting Height Dimensions (see Chart 3.1 for dimensions)
Dim. B
Dim. C
NOTE: Dimensions A, B, & C are based upon heaters hung at the factory recommended mounting height.
90.5"
195.5"
SIDE VIEW
11.75"
9.5"
Coverage Area Distance Between
Straight Config.
(LxW)
26' x 12'
26' x 12'
26' x 12'
Dim. A
Dim. A
11
3.0 Installation •

Recommended Mounting Heights

Distance
Between
Heaters (ft.) Heater Rows
Dim. A Dim. B
10' - 20' 20' - 40'
10' - 20' 20' - 40'
10' - 20' 20' - 40'
45.6"
Max. Distance
Between
Heaters and
Wall - Dim. C
16'
16'
16'
Dim. C
