Humidistat Controlled Dehumidification - Daikin MicroTech III Installation And Maintenance Manual

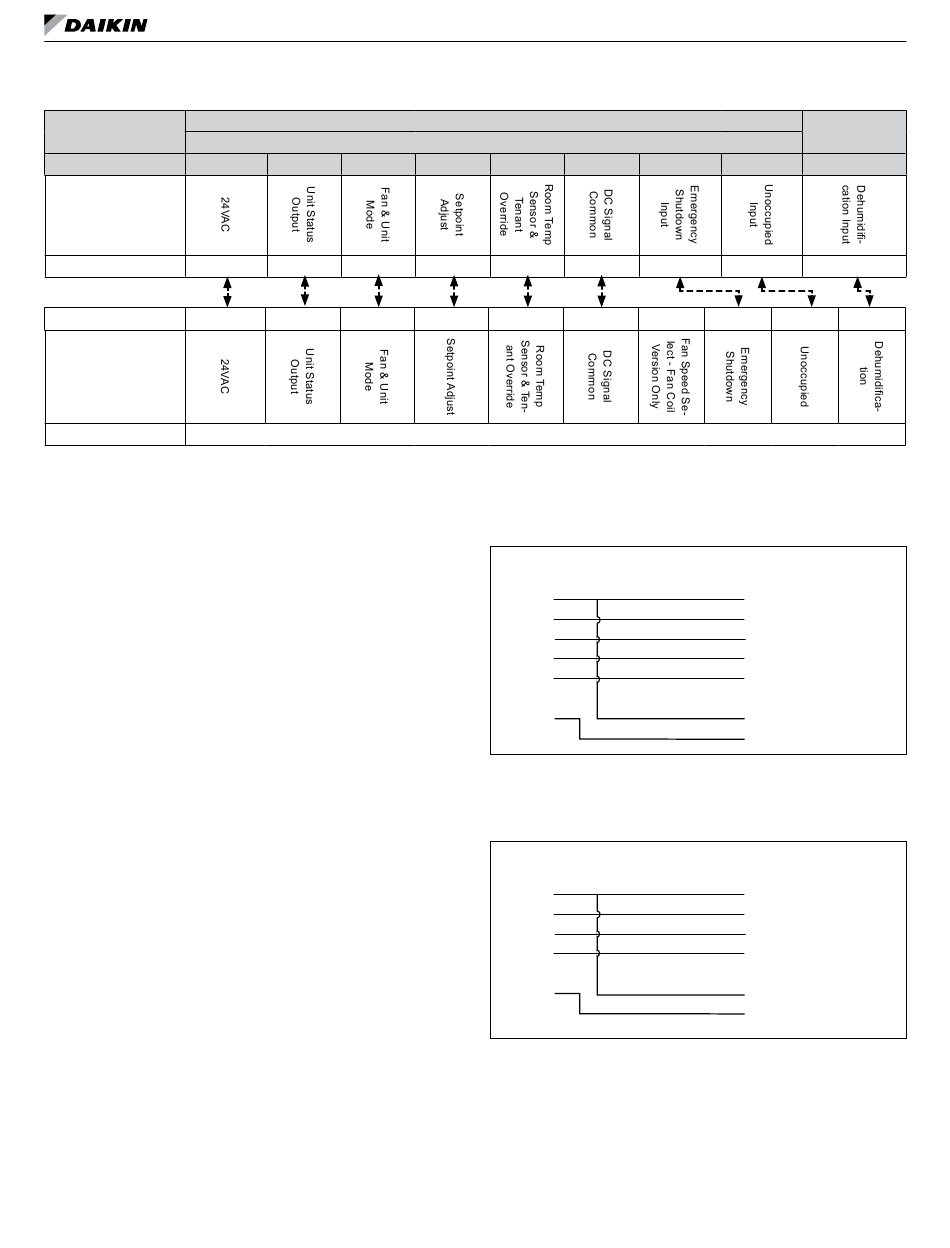

Figure 16: SmartSource MicroTech III controller to digital
room temperature sensor wiring
SmartSource Board
Terminal Block Label TB2-1
Description
Terminal Label R
Typical Wiring
Terminal Label R (24VAC)
Description
Sensor
Humidistat Controlled
Dehumidification
■ Application:
Similar to the simplified dehumidification option,
this option also maximizes latent capacity by using
a humidistat and thermostat . This option allows the
room thermostat to control sensible cooling, while the
independent humidistat controls room humidity levels
■ Items Required:
• Humidistat combined with a . . .
• Model GT = 3 stage thermostat
• Model GS = 2 stage thermostat
• Return air sensor
OR
• I/O Expansion Module Jumper Setting:
• JP5=Shorted
• JP6=Open
Note: This feature is not available if unit is controlled by
wall sensor
■ Unit Control Settings:
• I/O Expansion Module Jumper Settings:
• JP5=Shorted
• JP6=Open
■ Wiring:
• Thermostat/Sensor combination:
• Field supplied sensor
OM 1149-5
MicroTech III Board
Base Board
TB1-1 TB1-2 TB1-3
1 2 3
1 (ST) 2 (FM) 3 (SP)
Digitally Adjustable Room Temperature Sensor (Part No. 910121754)
M
TB1-4 TB1-5
4 5
4 (UTS) 5 (GND) 6 (FC)
Figure 17: Model GT thermostat and humidistat
combination - humidistat controlled dehumidification
wiring diagram
Model GT
Unit
R
C
G
Y1
Y2
TB-1
Figure 18: Model GS thermostat and humidistat
combination - humidistat controlled dehumidification
wiring diagram
Model GS
Unit
R
C
G
Y1
TB-1
24
t III u C
ICro eCh nIt ontroller
Expansion Module
TB3-1 TB3-2 TB1-1
E U
E U
Thermostat
R 24VAC
C Common
G Fan
Y1 Cool Stage 1
Y2 Cool Stage 2
Humidistat
R 24VAC
DH Dehumid
Thermostat
R 24VAC
C Common
G Fan
Y1 Cool Stage 1
Humidistat
R 24VAC
DH Dehumid
www .DaikinApplied .com
I/O
1
DH
