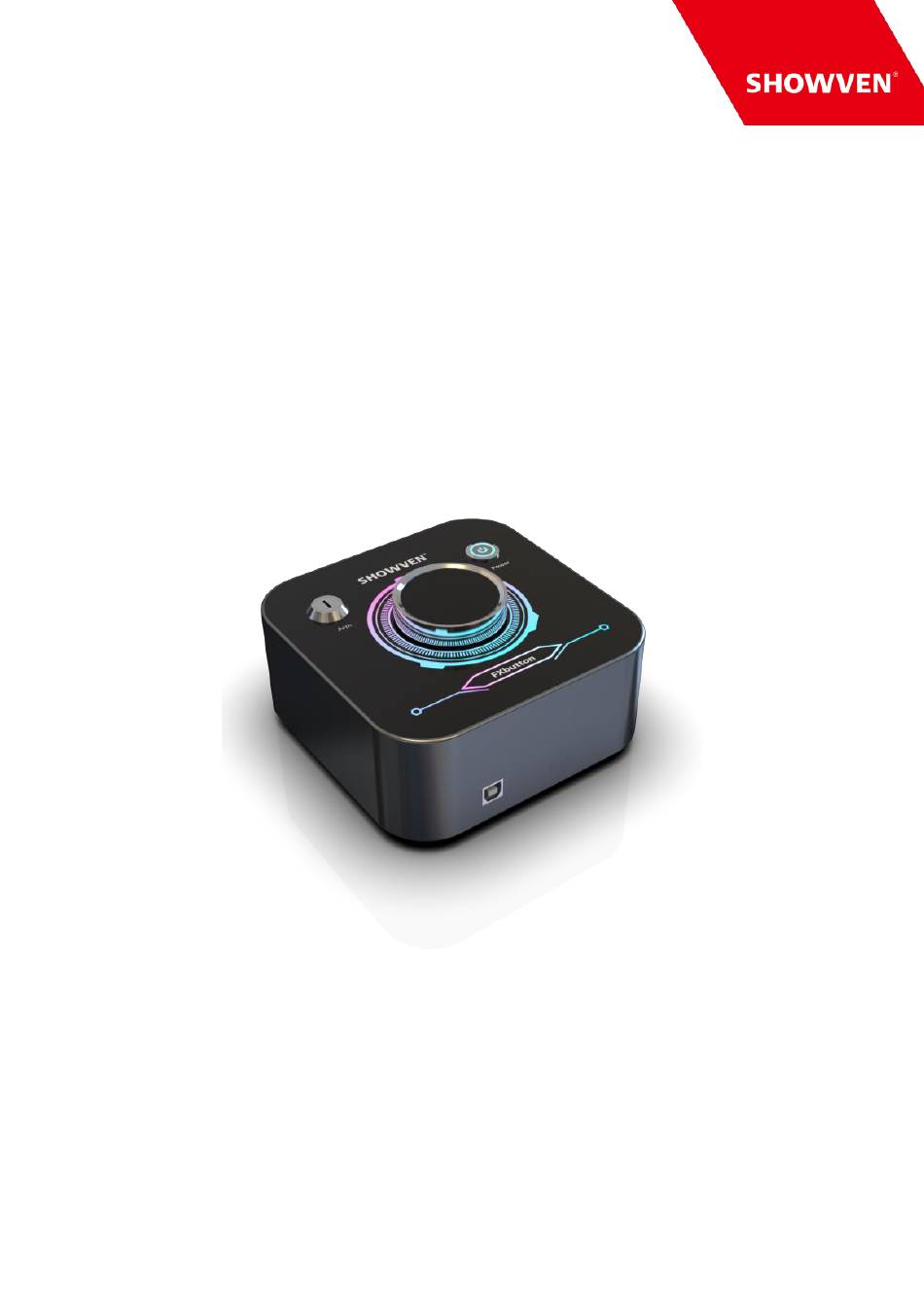

- Page 1 USER MANUAL FXbutton V1.1 2023/10/11 Showven Technologies Co., Ltd.
- Page 3 Product Description Δ The FXbutton is the most compact DMX console available on market, it is designed to be a simple and easy to use console for party, DJ etc. applications. All settings can be finished with an infinite rotary button simply yet efficiently.
- Page 4 Structure of FXbutton Δ 1. Button and Screen 2. DMX Arm switch 3. Power ON/OFF (the indicator light blinking when DMX armed) 4. AC Input indicator light 5. AC Input 6. DMX 5-PIN OUT (pin4 with 5V output to charge wireless DMX transmitter) 7.
- Page 5 : Firing mode rules (sync, center to ends, ends to center, right to left, left to right) NOTE: Menu switch disabled when DMX armed. Switch Arm key under setting menu, FXbutton will switch to main interface automatically. 2. Setting Menu Parameters in main menu show in below table, press “UP”/ “DOWN” to change the value, please remember to press “SAVE”...
- Page 6 Operation Guide Δ 1. Press Power button to turn on FXbutton. The indicator light on power button will blink three times. 2. Rotate the button clockwise or anti-clockwise to enter different setting menu interface. 3. In related setting menu, press the button to enter the editing mode (the edited value is red),...
- Page 7 Battery Installation Δ Remove the battery cover at the bottom of the FXButton as shown in the figure, and two 18650 cells needed, battery is not included in standard configuration, please prepare it by yourself. 1. Please install battery in the right direction;...
- Page 8 Showven Technologies Co., Ltd. Tel: +86-731-83833068 Web: www.showven.cn E-mail: info@showven.cn Add: No.1 Tengda Road, Liuyang Economic & Technical Development Zone, 410300, Changsha, Hunan, P.R.China...
