Fametech TP-9616 Quick Installation Manual page 2

15.6-inch touch screen pos terminal

Advertisement

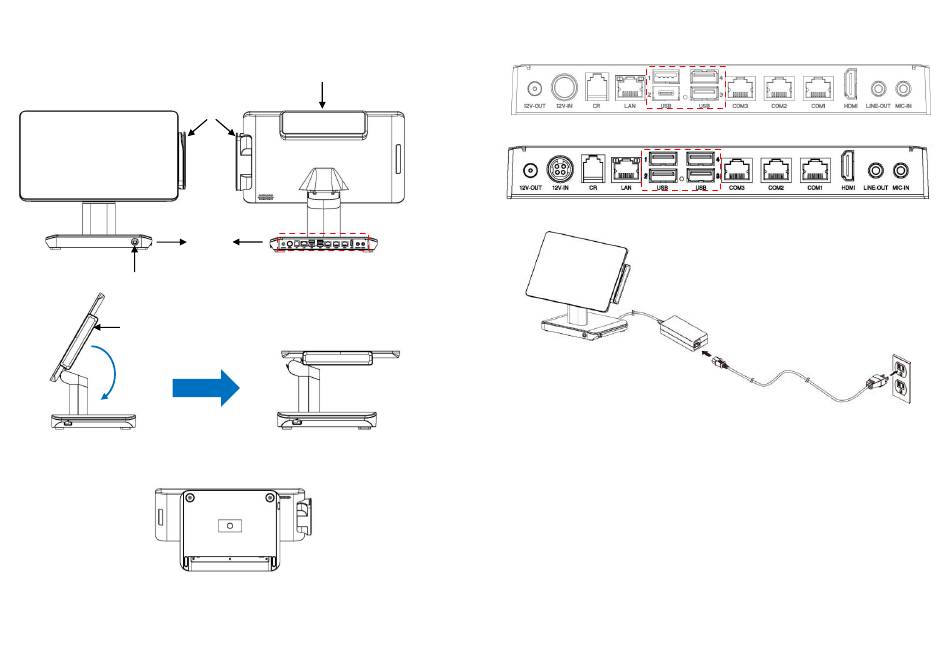

Parts Descriptions
LCD
Touch Screen
Power Button
MSR Module
(Optional)
*Tilt Adjustment: 0° ~ 90°
Customer Display (Optional)
MSR
Module
(Optional)
Base
I/O Ports
Base
 Bottom I/O Ports
TP-9616
TP-9716U
Install Your POS System
POS Terminal
1.
Place the POS terminal in a stable, proper location.
2.
Connect the power connector to the POS unit (Main Power Input).
3.
Connect the optional peripherals to the POS (for example: Receipt Printer,
Barcode Scanner, etc.)
4.
Connect the AC power cord to the power adapter, and plug the AC power
cord to the power source (for example: electrical outlet).
5.
Examine the Power Connector and Power Cord. They should be properly
connected to the POS terminal, Power Adapter, and Power Source.
6.
Switch on the Receipt Printer, Customer Display (if pre-installed) and other
optional peripherals.
7.
Turn on the POS terminal.
Power Adapter
Electrical Outlet
Power Cord
