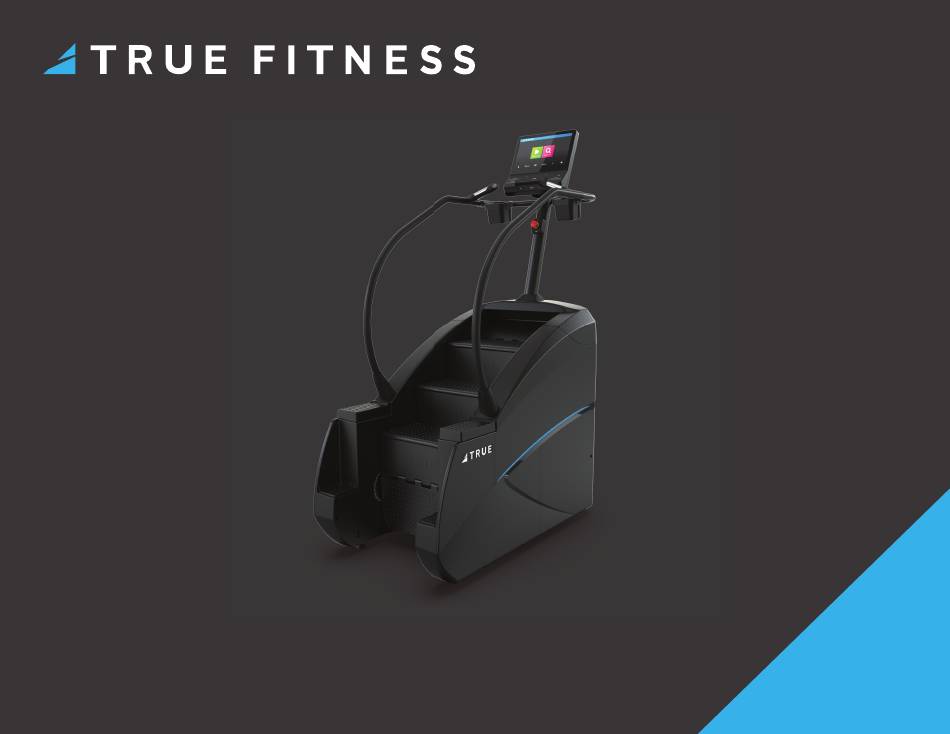

VAPOR PALISADE CLIMBER
OWNER'S MANUAL AND ASSEMBLY GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VAPOR PALISADE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for True Fitness VAPOR PALISADE

Summary of Contents for True Fitness VAPOR PALISADE

  • Page 1 VAPOR PALISADE CLIMBER OWNER’S MANUAL AND ASSEMBLY GUIDE...

  • Page 2: Important-Please Read

    Interested in owning more TRUE products? Please contact us with any product inquires so that we may direct you to the appropriate sales representative to help answer your questions. • Phone | 800.426.6570 • Email | sales@truefi tness.com • Hours | Monday - Friday 8:30am - 5:00pm (CST) © 2024 TRUE Fitness All Rights Reserved.

  • Page 3: Reporting Freight Claims Or Parts Damage

    fi le a claim if the carrier is not notifi ed in a timely manner. Once you have called the carrier you will need to gather the serial number, model number, description of damage, and photos of damage. Contact TRUE product support (service@truefi tness.com | 800.883.8783) or TRUE sales support (sales@truefi tness.com | 800.426.6570) Monday-Friday during normal business hours. © 2024 TRUE Fitness All Rights Reserved.

  • Page 4: Table Of Contents

    PROPER CLIMBER ENTRY AND EXIT SAFETY........10 ASSEMBLY INSTRUCTIONS PREASSEMBLY CHECKLIST............11 ASSEMBLY STEPS.................15 PRODUCT FEATURES BASE OVERVIEW................27 CONSOLE OVERVIEW..............28 CARE AND MAINTENANCE INSPECTION................30 CLEANING THE EQUIPMENT............30 LEVELING THE MACHINE..............30 PREVENTATIVE MAINTENANCE............31 LONG TERM STORAGE..............31 ADDITIONAL INFORMATION TROUBLESHOOTING..............32 © 2024 TRUE Fitness All Rights Reserved.

  • Page 5: Safety Instructions

    Do not use this product outdoors, near water, while wet, or in areas of high handlebar during a workout. humidity including extreme temperature changes. • Close supervision is necessary when used near children under the age of 15, or disabled persons. © 2024 TRUE Fitness All Rights Reserved.
  • Page 6 Do not use any type of extension cord with this product. • Never operate a TRUE product if it has a damaged power cord or electrical plug, or if it has been dropped, damaged, or even partially immersed in water. © 2024 TRUE Fitness All Rights Reserved.

  • Page 7: Power Requirements

    NOT exceed VC1-0A-35 NEMA 6-15* Up to 3 climbers 550 watts per 50/60Hz per circuit—DO machine NOT exceed *The plug confi guration for the power adapter may vary by country. © 2024 TRUE Fitness All Rights Reserved.

  • Page 8: Space Requirements

    STEP DIMENSIONS (L X W X H) 8” x 11.2” x 20” / 20.3cm x 28.4cm x 50.8cm 36” • STEP-UP HEIGHT (91.4cm) 13.3” / 33.7cm • MAXIMUM USER WEIGHT 400 lbs / 181.4 kg © 2024 TRUE Fitness All Rights Reserved.

  • Page 9: Warning Decals

    STAIRS number location Route cable through cable tie. COMPLIANCES This equipment complies with all applicable codes and regulations. For a complete list of compliances, please visit www.truefi tness.com. © 2024 TRUE Fitness All Rights Reserved.

  • Page 10: Proper Climber Entry And Exit Safety

    Step down onto the fl oor one foot at a time while maintaining a grip with both hands on the handrails. handrails handrails upper rear steps upper rear steps lower rear steps lower rear steps © 2024 TRUE Fitness All Rights Reserved.

  • Page 11: Assembly Instructions

    DO NOT use a box cutter. DO NOT slice into the packaging. TOOLS NEEDED FOR ASSEMBLY TOOLS NEEDED FOR ASSEMBLY 5mm and 6mm Allen Wrench Wire Cutters Level 17mm Wrench and 17mm Socket Wrench (recommended) Lifting Straps (recommended) #2 Phillips Screwdriver © 2024 TRUE Fitness All Rights Reserved.
  • Page 12 6. If the product is far from its fi nal resting position, use the moving wheels to move the product into place and then adjust the four leveling feet to verify the machine is level with the ground. moving wheel lifting straps leveling foot © 2024 TRUE Fitness All Rights Reserved.

  • Page 13: Box Contents

    VC90255-35 ASSEMBLY, RIGHT HANDRAIL & HR GRIP, FULL DIPPED VC90110 COVER, CONSOLE REAR VC900-TRAY COVER, SWEAT TRAY (OPTIONAL KIT) MAN-VC1-0A-35 MANUAL, VC1-0A-35 *NOTE: These parts come preassembled onto other parts. **NOTE: These parts are included in the hardware pack. © 2024 TRUE Fitness All Rights Reserved.

  • Page 14: Hardware Pack Contents

    HEX NUT M10 X 1.5 X 8 BZ VC90148 PHMS, M5-0.8 X 12MM, ZP Step 3 Hardware Used Part Description VC90205 SHCS, M8-1.25 X 20MM, SS VC90206 WASHER, FLAT, M8 X 18 OD X 1.5, © 2024 TRUE Fitness All Rights Reserved.

  • Page 15: Assembly Steps

    A. Using the four M8 hex bolts, fi nger tight the upper frame to the base. B. When all four bolts are fi nger tight, use a 6mm allen wrench to fully tighten. © 2024 TRUE Fitness All Rights Reserved.
  • Page 16 NOTE: It helps to partially thread each side screw and then slide the inner guard shroud over the two side screws to help hold it in place as you continue to install and tighten all screws. © 2024 TRUE Fitness All Rights Reserved.
  • Page 17 NEVER route cables near the steps or by any moving part of the machine. inner guard shroud base cables NOTE: You will be securing the cables to the frame with zip ties and then fastening the top shroud in step 10. © 2024 TRUE Fitness All Rights Reserved.
  • Page 18 Once the cables are connected, be sure to carefully route excess cable length back through the top of the console mast. D. Position the bottom of the handrails by the handrail mount brackets. handrail mount bracket © 2024 TRUE Fitness All Rights Reserved.
  • Page 19 Loosely fasten the cup holder VC90167 BHCS, M8-1.25 X 12MM, SS rings to the console mast and handrails. DO NOT fully tighten the hardware until step 7. NOTE: Cup holder rings are labeled left and right. © 2024 TRUE Fitness All Rights Reserved.
  • Page 20 Loosely attach the handrails and brackets VC90168 HHS, M10-1.50 X 50MM, NYLOC, BLK ZP to the base frame. DO NOT fully tighten VC90169 HEX NUT M10 X 1.5 X 8 BZ hardware until step 7. © 2024 TRUE Fitness All Rights Reserved.
  • Page 21 B. Using a 6mm allen wrench, securely fasten the cup holder rings, and then insert the cup holders into place. © 2024 TRUE Fitness All Rights Reserved.
  • Page 22 (00567800). e-stop D. Using a #2 Phillips screwdriver, NOTE: Depending on the installation, power I/O data attach the rear console cover. PVS power may not be used. © 2024 TRUE Fitness All Rights Reserved.
  • Page 23 Step 9—Attach Power Cord Parts Used in this Step Item Part Description VC90080 CABLE, VC900 POWER VC90250-35 VC900 BASE FRAME Insert the power cord and power on the machine. Verify the console powers up. power cord © 2024 TRUE Fitness All Rights Reserved.
  • Page 24 Always keep cables away from moving parts inside the machine. B. Using a #2 Phillips screwdriver, secure the top shroud to the base. C. Tuck the mast base cover into the top shroud. © 2024 TRUE Fitness All Rights Reserved.
  • Page 25 B. Using a 17mm wrench, verify all four lock nuts are securely tightened and fl ush against the bottom of the frame. lock nut lock nut leveling foot © 2024 TRUE Fitness All Rights Reserved.
  • Page 26 APEX UPRIGHT BIKE LAUNCH RECUMBENT BIKE VAPOR STRYKER APEX RECUMBENT ELLIPTICAL LAUNCH UPRIGHT BIKE VAPOR ALPINE RUNNER GRAVITY ELLIPTICAL VAPOR PALISADE VAPOR SPECTRUM GRAVITY RECUMBENT BIKE VAPOR XT-ONE GRAVITY UPRIGHT BIKE VAPOR LATERAL X © 2024 TRUE Fitness All Rights Reserved.

  • Page 27: Product Features Base Overview

    Delivers power from the wall outlet to the climber. Handrails A place for users to put their hands during a workout and helps provide balance. J. Leveling Feet An adjustable system used to aid in the leveling the Slat Treadmill. © 2024 TRUE Fitness All Rights Reserved.

  • Page 28: Console Overview

    CONSOLE OVERVIEW UNITE TOUCHSCREENS (16” SHOWN) Android OS Touchscreen Choose Workout Bluetooth Compatible Apple Watch Compatible Choose Language Galaxy Watch Compatible Lock Screen for Cleaning Tap to Pair Wireless Charging HDMI 3.5mm Headphone Jack © 2024 TRUE Fitness All Rights Reserved.
  • Page 29 UNITE LED Eight Dedicated Data Points Manually Adjust Level Dedicated Message Center Bright White LEDs Keypad Choose Workout © 2024 TRUE Fitness All Rights Reserved.

  • Page 30: Care And Maintenance

    CAUTION: Do not use any acidic cleaners. Doing so will weaken the paint or powder coatings and may void the TRUE Fitness Warranty. Never pour water or spray liquids on any parts of the machine. Allow the machine to dry completely before using. Frequently vacuum the fl oor underneath the unit to prevent the accumulation of dust and dirt, which can affect the smooth operation.

  • Page 31: Preventative Maintenance

    TRUE recommends that quarterly scheduled maintenance be performed by a qualifi ed service technician. Please contact your dealer or visit www.truefi tness.com to contact a local TRUE authorized service technician. IMPORTANT! Use only TRUE Fitness certifi ed service providers. Using non-authorized service providers could void the TRUE Warranty. Frequency...

  • Page 32: Additional Information Troubleshooting

    No TV displayed or low quality Verify video type with provider; analog (NTCS), digital air (ATCS), digital cable (QAM) Channels or format type not correct Rescan TV channels Tuner Invalid Contact TRUE Product Support © 2024 TRUE Fitness All Rights Reserved.
  • Page 33 Cables are pinched or damaged Contact TRUE product support Contact Heart Rate not displaying Nucleus board may be damaged Contact TRUE product support Heart Rate Grips may be damaged Contact TRUE product support © 2024 TRUE Fitness All Rights Reserved.

  • Page 34: Warranty Information Commercial Warranty

    Coax/TV, HDMI, USB, mirroring or Ethernet connections, and safety key. Cables and Linear 1 Year Bearings See Warranty Details for terms, conditions, and complete coverage details. Labor** 1 Year Wear Items*** 90 Days © 2024 TRUE Fitness All Rights Reserved.

  • Page 35: Limited-Use Commercial Warranty

    LIMITED-USE COMMERCIAL WARRANTY* TRUE Fitness may offer alternative warranties to purchasers of commercial CARDIO equipment for limited-use commercial* or in-home use.** This policy ensures that customers who use commercial equipment for limited-use commercial or WARRANTY VAPOR, GRAVITY in-home use may receive alternative warranty coverage, provided they meet...

  • Page 36: Warranty Details

    WARRANTY DETAILS All TRUE Fitness products are distributed by TRUE and are warranted to the original registered product purchaser and the parts of the TRUE product (the “Product”) listed below, under normal use and service, shall be free of manufacturing defects in workmanship and materials only for the specifi ed period of time.

  • Page 37: Warranty Registration

    St. Louis, MO 63366 WARRANTY REGISTRATION Base Serial Number Console Serial Number Purchase Date Company (if applicable) Customer Name (First and Last) Email Address Phone Number Street Address City State Postal Code Country © 2024 TRUE Fitness All Rights Reserved.
  • Page 38 CONTACT US service@truefi tness.com 800.883.8783 865 Hoff Road St. Louis, MO 63366 T R U E F I T N E S S . C O M MAN-VC1-0A-35 Owner’s Manual and Assembly Guide REV02 © 2024 TRUE Fitness All Rights Reserved.

This manual is also suitable for:

Vc1-0a-35Vapor palisade vc1-0a-35
