OWNER'S MANUAL
FAIRFIELD LEG PRESS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FAIRFIELD H09-LP and is the answer not in the manual?

Questions and answers

Summary of Contents for HUDSON STEEL FAIRFIELD H09-LP

  • Page 1 OWNER’S MANUAL FAIRFIELD LEG PRESS...
  • Page 2: Exploded View

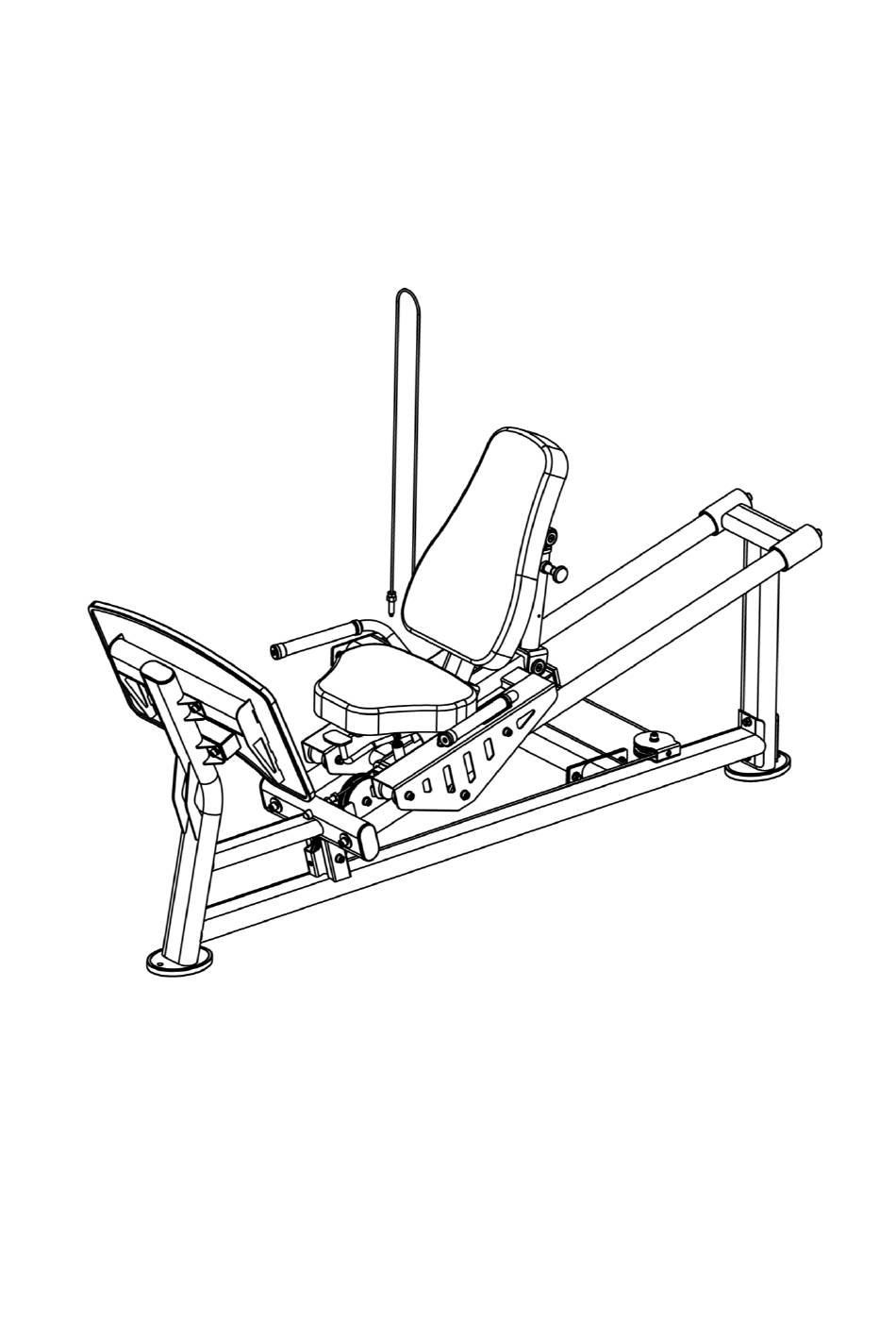

    EXPLODED VIEW...
  • Page 3: Parts List

    PARTS LIST Nº English description Specification Kick Main Frame Kick back Upright Frame Pedal Plate Sliding Adjustable Frame Seat Cushion Sliding Tube Back Cushion Tube Adjustable Inner Tube Adjustable Outer Tube Sliding Tube Adjustable Pin Frame Kick Connection Frame Left Handle Frame Right Handle Frame Back Pad Pin Shaft...
  • Page 4 Wheel Φ63*Φ35*58 Hollow Sleeve 200 94.4*44.8*200 Hollow Sleeve Cap 50*100 Base Rubber 70*45*10 Limit Washer 30*70*20 PVC Rubber Foot 169*129*16 Stopper PT40*80*3 Stopper PT40*80*2.5 Stopper F50*3 Stopper PT50*100*2.5 Φ95 Pulley Φ95*24 Φ115 Pulley Φ115*27.5 Link 08A(pitch is 12.7) Bearing 6202ZZ Flat Washer Φ11*Φ20*2 Flat Washer...
  • Page 5: Assembly Steps

    ASSEMBLY STEPS Step 1. 1. After unpacking the box, install the assembly parts #6 and #8 in the designated location as diagram. Put on #16 respectively, then fix the two ends using #32, #64; NAME SPECIFICATION QUANTITY Back Cushion Tube Adjustable Outer Tube Rotating Shaft Φ25*129*M8...
  • Page 6 Step 2. 1. Install #12 in the designated location as diagram:  2 #52  2 #56  2 #68 2. Install #13 in the designated location as diagram:  2 #52  2 #56  2 #68 NAME SPECIFICATION QUANTITY Left Handle Frame Right Handle Frame...
  • Page 7 Step 3. 1. Install #21 and #22 in the designated location as diagram:  #52  #68 NAME SPECIFICATION QUANTITY Back Cushion 550*320*65 Seat Cushion 400*260*65 Φ11*Φ20*2 Flat Washer Hex Socket-head Bolt M10*25...
  • Page 8 Step 4. 1. Install #3 in the designated location as diagram.  4 #52  4 #56  4 #68 NAME SPECIFICATION QUANTITY Pedal Plate Flat Washer Φ11*Φ20*2 Spring Washer Φ10 Hex Socket-head Bolt M10*25...
  • Page 9 Step 5. 1. Install #11 one end to the main frame of FAIRFIELD GYM using:  2 #52  2 #56  2 #68 2. Install #11 other end to the main frame of FAIRFIELD LEG PRESS using:  4 #52 ...
  • Page 10 Step 6. 1. First remove #62 from FAIRFIELD GYM; 2. Install the cable starting from the front end of the leg pree machine, as shown in the diagram. Fix #48 with #52, #58, and #69 according to the direction of the cable indicated in view "II". Then thread the cable upwards through pulley number #24 and Φ95 turning pulley frame in FAIRFIELD GYM, as shown in the diagram.
