HUDSON STEEL H8105 Owner's Manual

Leg extension
Hide thumbs

Advertisement

Quick Links

Download this manual

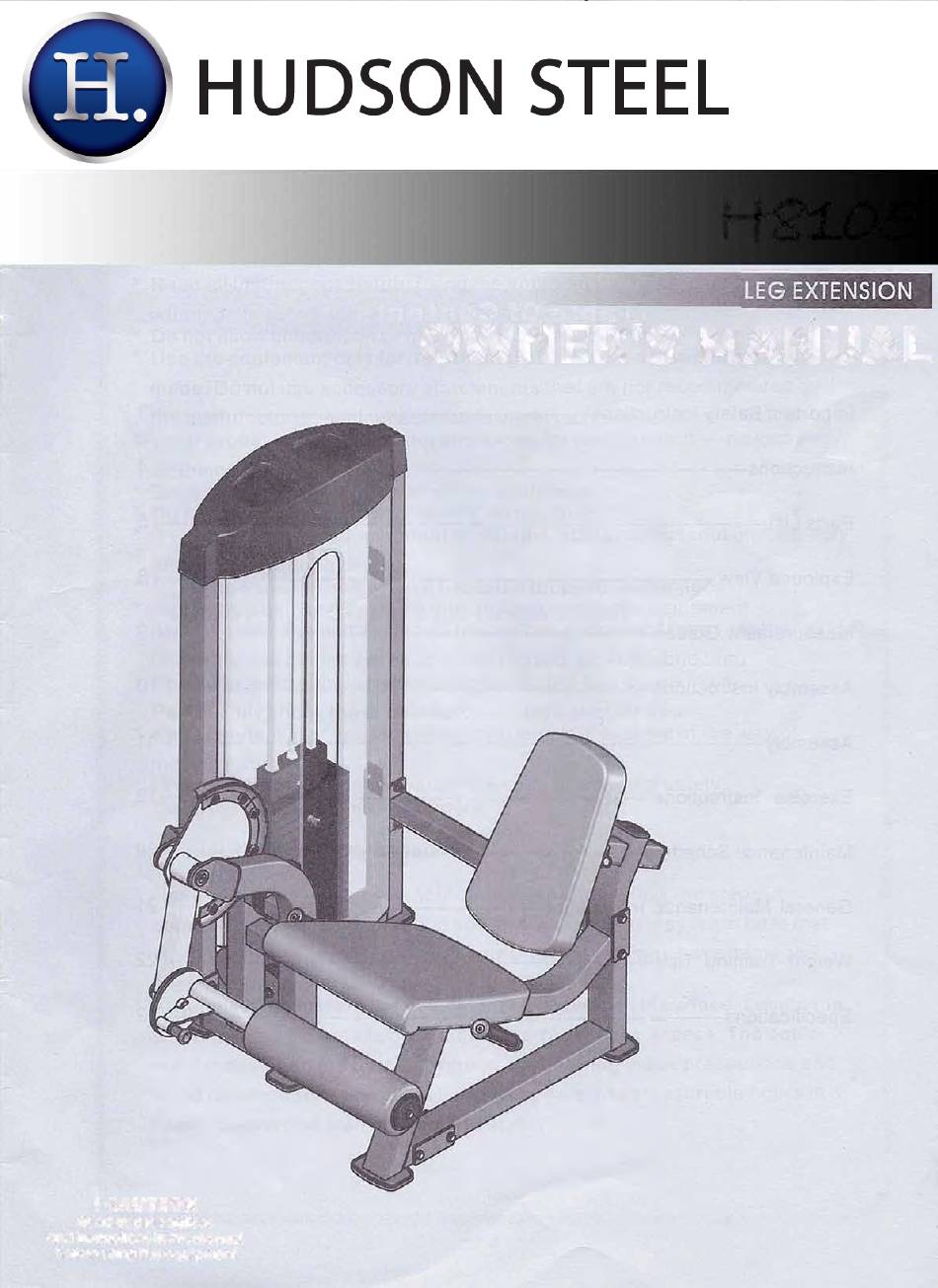

H-�1-05
i
OWNER'S MANUAL
CAUTION
!
Read all precautions
and instructions In this manual
before using this equipment

Advertisement

loading
Need help?

Need help?

Do you have a question about the H8105 and is the answer not in the manual?

Questions and answers

Related Manuals for HUDSON STEEL H8105

Summary of Contents for HUDSON STEEL H8105

  • Page 1 H-�1-05 OWNER'S MANUAL CAUTION Read all precautions and instructions In this manual before using this equipment...
  • Page 2 ! CAUTION R e a d all pre c a ution s a n d in s tr uc ti on s in thi s m a n u al b ef ore u s ing thi s e q ui pment . Import a nt S afety In s tr u c tion s-------------- ---- - - ------------------- ------------------ ----- 3 I n s t r u c ti on s------------------------------------------------------------------------------------ 4 P a rt s L i s t --------------------------------------------------------------------------------------- 5...

  • Page 3: Personal Safety During Assembly

    Before beginning any fitness program, you should obtain a complete physi­ cal examination from your physician. When using exercise equipment, basic precautions should always be taken, including the following: * Read all instructions before using the equipment. These instructions are written to ensure your safety and to protect the unit.
  • Page 4 Before beginning assembly please take the time to read instructions thoroughly. Please use the various lists in this manual to make sure that all parts have been included in your shipment. When ordering, use part number and description from the lists. Use only our replacement part when servicing. Failure to do so will void your warranty and could result in personal injury.
  • Page 5 NOTE: SOME OF THESE PARTS MAY COME PRE-INSTALLED Description Item NO. Part NO. Weight Stack Frame IF81060100 Main Frame IF81050200 Seat & Back Frame IF81050300 Lower Crossbeam IF81210900 Cam Frame IF81050500 Swing Tube IF81050600 Left Handle IF81100900 Right Handle IF81101000 Back Pad Tube IF81060900 Back Pad Support...
  • Page 7 ! There are three configuration of weights: 170LBS/200LBS/250LBS, please see following form for details. Weight Plate 170LBS Item No. Part No. Description PLWS1000 Weight Plate 10LBS Weight Plate 200LBS Item No. Part No. Description PLWS1000 Weight Plate 1 0LBS IF8WS1500 Weight Plate 15LBS Weight Plate 250LBS Item No.
  • Page 8 � al � ,-r. ®, / / <;:p �\ � m ,I_/@\ / / �\ �...
  • Page 9 BHCS = Button Head Cap Screw �1 � �1 1 1 1, � 1 , 1 1111 SHCS = Socket Head Cap Screw 1----- I I I I I I I I I I FHCS = Flat Head Cap Screw 1111111111 HHB = Hex Head Bolt 11 1 1 1 1 1 11l...
  • Page 11 Step 1 1.Attach the Main Frame (#2) to the Weight Stack Frame (#1) using: three M10*105 HHB (#62) one M10*110*30 HHB (#61) seven <t>11 *<t>23*2 Flat Washers (#68) three M 10 Nylon Lock Nut (#71) 2.Attach the Seat & Back Frame (#3) to the Main Frame (#2) using: two M 1O*105 H H B (#62) four <t>...
  • Page 12 Step 2 1.Attach the Cam Frame (#5) to the Main Frame (#2) using: two M10*25 FHCS (nylon patch) (#55) two ct>38*6 End Cap (#21) one ct>25*120 Main Shaft (#11) 2.Attach the Swing Tube (#6) to the Cam Frame (#5) using: one M 10*25 FHCS (nylon patch) (#55) one ct>38*6 End Cap (#21) 3.Attach the Left Handle (#7), the Right Handle (#8) to the Seat &...
  • Page 13 Step 3 1.Attach two 4.5" Pulley (#38) to the Weight Stack Frame (#1) using : two M10*50 HHB (#64) four ¢11*<1)23*2 Flat Washers (#68) two M10 Nylon Lock Nut (#71) 2.Attach three 4.5" Pulley (#38) to the Main Frame (#2) using: six <I) 11 *<1)23*2 Flat Washers (#68) three M10*50 HHB (#64) three M 10 Nylon Lock Nut (#71)
  • Page 15 Step 4 1.Attach: two ¢25*2.5*1229 Guide Rod (#20) two ¢76.2*¢26.9*38.1 Weight Rubber Bumper (#30) ten 10LBS Weight Plate (#83) six 15LBS Weight Plate (#84) one Top Plate (#28) to the Weight Stack Frame (#1) using: two ¢40*25 Mount Sleeve (#23) four M8*8 Socket Set Screws(#53) 2.Attach the Selector Pin W/Coil (#19) to Top Plate (#28).
  • Page 16 Step 4 1.Attach: two ¢25*2.5*1229 Guide Rod (#20) two <!)76.2*<P26.9*38.1 Weight Rubber Bumper (#30) sixteen 15LBS Weight Plate-(#84) one Top Plate (#28) to the Weight Stack Frame (#1) using: two <!)40*25 Mount Sleeve (#23) four M8*8 Socket Set Screws(#53) 2.Attach the Selector Pin W/Coil (#19) to Top Plate (#28). 3.Attach the Cable (#14) to the Top Plate (#28).
  • Page 17 Step 5 1.Attach the Seat Pad (#12) to the Seat Pad Plate (#24) & the Seat & Back Frame (#3) using two M10*35 HHB (#65) two M10*30 HHB (#66) four ¢11 *¢23*2 Flat Washers (#68) 2.Attach the Back Pad (#17) to the Back Pad Tube (#9) using two ¢11*¢23*2 Flat Washers (#68) two M10*50 HHB (#64) 3.Attach the Foam Assembly (#18) to Swing Tube (#6) using...
  • Page 18 Step 6 1.Attach the Front Shroud (#35) and the Rear Shroud (#36) to the Weight Stack Frame (#1 ); 2.Attach the Top Shroud (#34) to the Weight Stack Frame (#1) using: two M6*15 BHCS (#60) two<P6.6*<t>15*2 Flat Washers (#70) Note: Wrench Tighten bolts and Nylon Lock Nuts. -18 -...
  • Page 19 Exercise Instructions 1.Select an appropriate weight. 2.Adjust back pad to the desired position. 3.Select desired positioning,Hook both feet under the lower roller pad, Grasp handles extend legs. 4.Slowly return to the starting position. (Adjust weight according to the select pin) -19 -...

  • Page 20: Maintenance

    HOME COMMERCIAL LA TEST DATE ENTRY ROUTINE MAINTENANCE MAINTENANCE Inspect; DAILY Links, Pull Pins, Snap Locks, WEEKLY Swivels, Weight Stack Pins Clean; DAILY WEEKLY Upholstery Inspect; DAILY WEEKLY Cables or Belts and their tension Inspect; WEEKLY 3MONTHS Accessory Bars, and Handles Inspect;...
  • Page 21 Links, Pull-Pins, Snap Hooks, Swivels, Weight Stack Pins: *Check all pieces for signs of visible wear or damage. *Check springs in snap hooks and pull-pins for proper tension and alignment. *If the spring sticks or has lost its rigidity, replace it immediately. Upholstery: *To ensure prolonged upholstery life and proper hygiene, all upholstered pads should be wiped down with a damp cloth after every workout.
  • Page 22 Use this manual to guide you through the basic exercises you can perform on your equipment. To gain maximum results and avoid possible injury, consult a fitness professional to develop your complete exercise program. Always consult your physician before starting any exercise program. To be successful in your exercise program, it is important to develop an understanding of the basic principles of strength training.
  • Page 23 HUDSONSTEELCO.COM...
