Summary of Contents for HUDSON STEEL DR016B-USFS

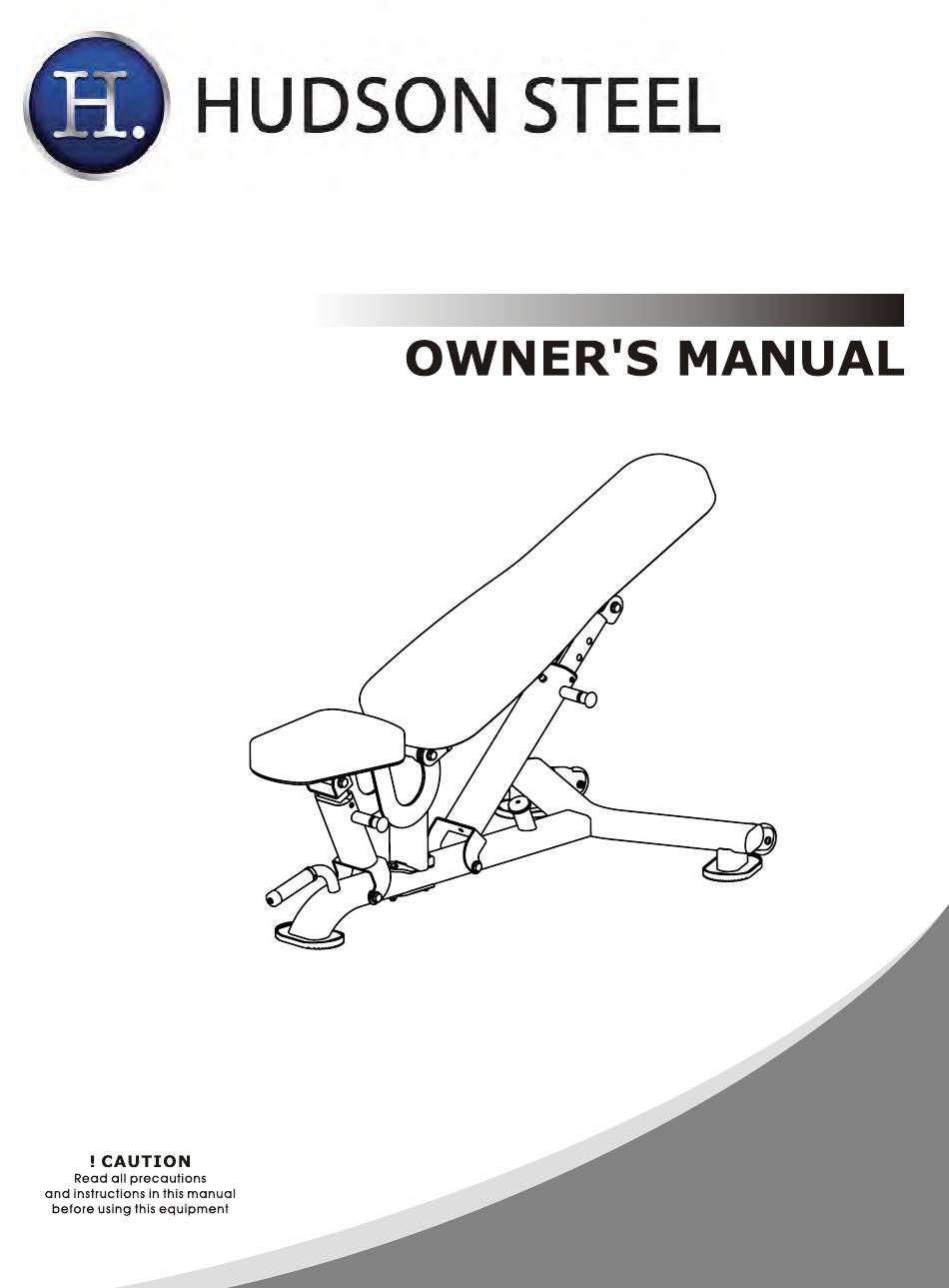

- Page 1 DR016B-USFS MULTI-ANGLE FID BENCH...
- Page 2 Exploded View And Parts List...
- Page 4 Overall Description Description Item NO. Item NO. Base Bracket ASSY Hex Head Bolt M12×140 Support Bracket ASSY Hex Head Bolt M12×110 Back Pad Bracket ASSY Hex Head Bolt M10×80 Hex Head Bolt M10×30 Front Adjustable Bracket ASSY Rear Adjustable Bracket ASSY Nylon Nut M12 Seat Pad Nylon Nut M10...
- Page 5 Base Bracket ASSY Description Description Item NO. Item NO. Base Bracket Nylon Nut M8 Rubber Foot Flat Washer φ9×φ16×1.6 Wheel 1.10 Aluminum Cap φ25 Plug PT50×100 1.11 Aluminium Ring φ25 Rubber Bumper 1.12 Grip Bushing φ25×φ12.2×13 1.13 Flat Head Cap Screw M6×16 1.14 Socket Set Screw M5×3 Button Head Cap Screw M8×45...
- Page 6 Back Pad Bracket ASSY Description Item NO. Back Pad Bracket Shaft φ25.4×φ12.5×132.5 Plug PT50×100 Bushing φ25×φ12.2×13 Hex Head Bolt M12×160 Nylon Nut M12 Flat Washer φ24×φ13×1.5...
- Page 7 Front Adjustable Bracket ASSY Description Item NO. Front Adjustable Bracket(Outer) Front Adjustable Bracket(Inner) Plastic Tube Guide Socket Head Cap Screw M8×30 Button Head Cap Screw M6×12 Hex Nut M6...
- Page 8 Rear Adjustable Bracket ASSY Description Item NO. Rear Adjustable Bracket(Outer) Rear Adjustable Bracket(Inner) Plastic Tube Guide Socket Head Cap Screw M8×30 Button Head Cap Screw M6×12 Hex Nut M6...
- Page 9 Support Bracket ASSY Description Item NO. Support Bracket Bushing φ38×φ25.4×18 Seat Pad Bracket ASSY Description Item NO. Seat Pad Bracket Bushing φ25×φ12.2×13 Bushing φ38×φ25.4×18...
- Page 10 Step1 Description Description Item NO. Item NO. Base Bracket Hex Head Bolt M10×80 Rubber Foot Nylon Nut M12 Wheel Nylon Nut M10 Plug PT50×100 Flat Washer φ23×φ11×2.0 Hex Head Bolt M12×140 Flat Washer φ24×φ13×1.5...
- Page 11 Step2 Description Description Item NO. Item NO. Base Bracket Hex Head Bolt M12×110 Back Pad Bracket ASSY Nylon Nut M12 Seat Pad Bracket ASSY Flat Washer φ24×φ13×1.5...
- Page 12 Step3 Description Description Item NO. Item NO. Base Bracket Hex Head Bolt M10×30 Seat Pad Flat Washer φ23×φ11×2.0 Back Pad...
