Summary of Contents for HUDSON STEEL H-PCL

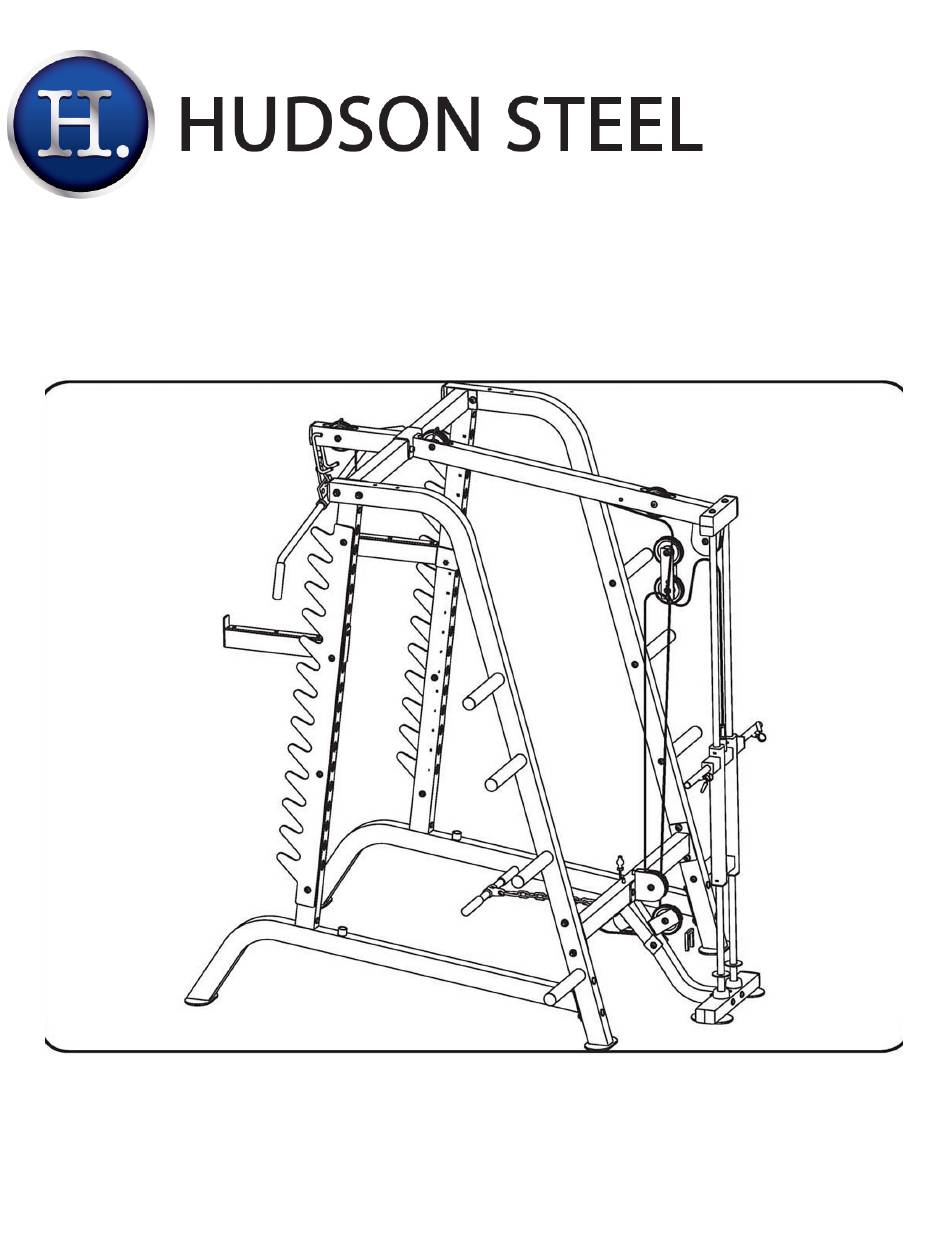

- Page 1 Owner's Manual H--P�L HALF CAGE LAT ATTACHMENT CAUTION Read all precautions and instructions in this manual before using this equipment. 215-00099 10/06 Rev A...
-
Page 2: Table Of Contents
• Table of Contents Important Safety Information Before You Sta rt Assembly Parts List Exploded View... -
Page 3: Important Safety Information
Important Safety Information This manual will guide you through the assembly process. -
Page 4: Before You Start
Before You Start � Keysfitness THANK YOU for making this unit a part of your exercise program. Keys Fitness assures the very best in value, appearance, durability � and biomechanics. ., _ •-, ,tness T his manual will guide you through the assembly process. If at any time you are having trouble with the assembly or use of this product, then please contact us at our Keys Fitness Helpline. -
Page 5: Assembly
• Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 1 Connect Lower Support (1), Footbrace (8) and Pulley Bracket (9) to Half Cage using: (19) Bolt M10x70 (20) Washer 10 (21) Nylon Lock Nut MlO (27) Bolt M10x95... - Page 6 • Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 2 Assemble weight carriage structure using: (6) Guide Rod (4) Slide Weight Support (11) Plastic Sleeve (12) Bumper for Weight Weight Base (Not Labeled) (20) Washer 10 (25) Bolt M10x20 Note: Bolts (25) will need to be tightened before moving to...
- Page 7 • Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 3 Connect Top Frame ( 4) to Half Cage and Guide Rods (7) using: 2 x (22) Bolt M 12x80 2 x (25) Bolt M 10x20 4 x (23) Washer M10 2 x (20) Washer 10 2 x (24) Nylon Lock Nut M12...
- Page 8 • Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 4 Connect all attachments using: 2 x (30) Pear Hook 1 x (15) Long Bar 1 x (8) Footbrace 1 x (32) U Pin 1 x (10) Chain 1 x (5) Short Bar (17) Plug...
-
Page 9: Parts List
• Parts List KF-HCL Parts List Rev B ---- Ref# Part# Description ---- KF-HC-REF ****Reference Only***** 223-00922 LOWER SUPPORT, H-HCL 223-00923 WEIGHT BASE, H-HCL 223-00924 TOP FRAME, H-HCL 223-00055 SLIDE WEIGHT SUPPORT 223-00092 LAT BAR H -GYM 223-00056 GUIDE ROD H-HCL 210-00123 SPRING CLIP... -
Page 10: Exploded View
• Exploded View... - Page 11 HUDSONSTEELCO.COM...
