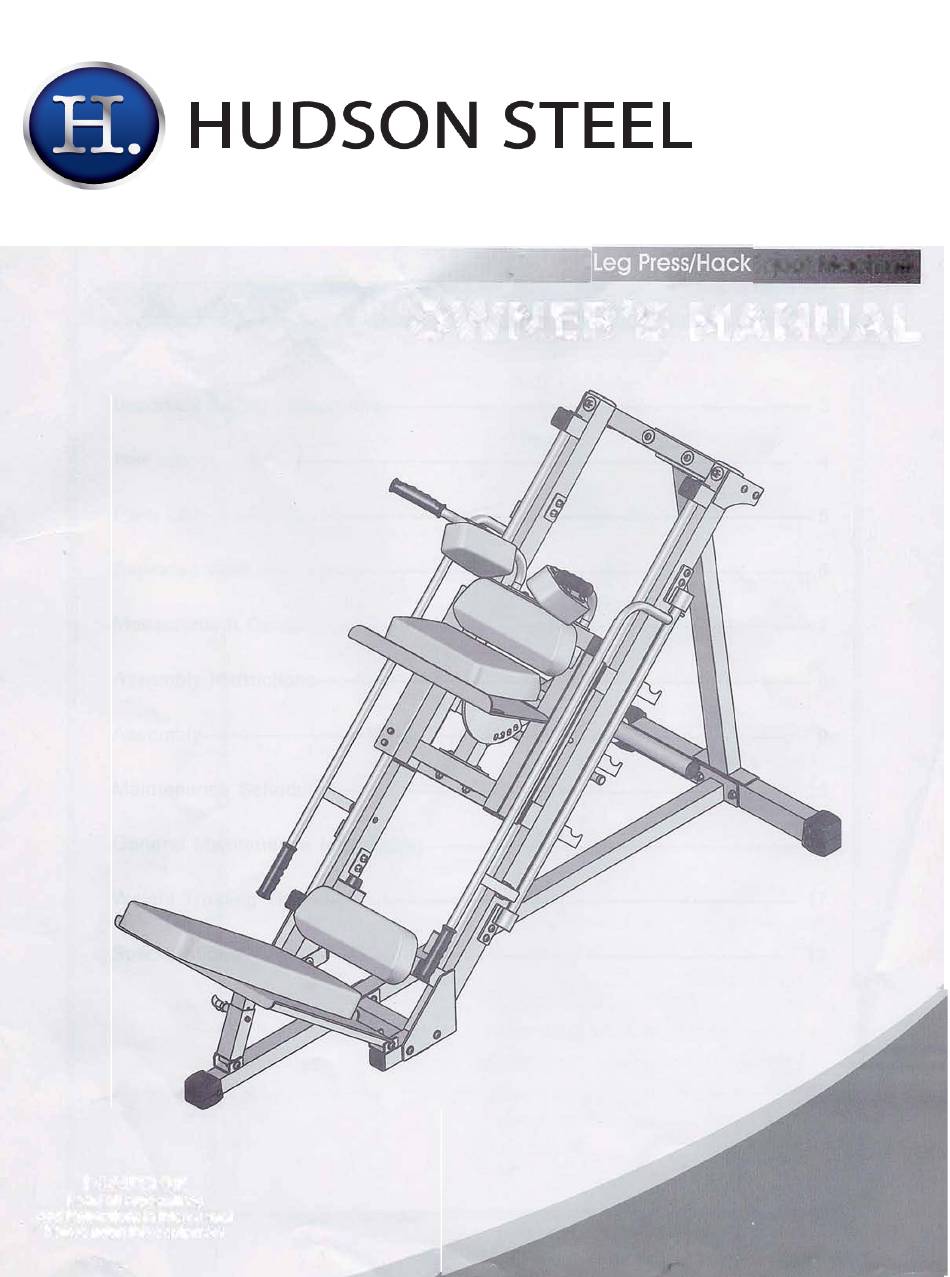

- Page 1 SguafMachine --: r. � OWNER'S MANUAL CAUTION Read all precautions and instructions in this manual before using this equipment...
- Page 2 ! CAUTION R ea d all p rec a utio ns an d in structions in this manual before using thi s e q ui pm ent . Important S afety Instructions -------------------- ---------------------- ------------------- 3 In stru cti on s ------------------------------------------------------------------------------------ 4 P a rts L ist --------------------------------------------------------------------------------------- 5 Ex pl od e d Vi e w ------------------------------------------------------------------------------- 6 Measurement Guid e ----------------------- --------------------------------------- ---------- 7...
- Page 4 Before beginning assembly please take the time to read instructions thoroughly. Please use the various lists in this manual to make sure that all parts have been included in your shipment. When ordering, use part number and description from the lists. Use only our replacement part when servicing. Failure to do so will void your warranty and could result in personal injury.
- Page 5 NOTE: SOME OF THESE PARTS MAY COME PRE-INSTALLED Description Description Item No. Item No. Rear Upright Big Back Pad Top Cross Frame Grip Left Slide Frame Plug 050.8*76.2 Right Slide Frame Right Foot Cap C50.8*76.2 Carriage Small Bumper Connecting Tube Plug 050.8 Weight Holder Plug 025...
- Page 6 �� I¼. � - i � ��-/...
- Page 7 1111111111 BHCS = Button Head Cap Screw 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 SHCS = Socket Head Cap Screw I I I I I I I I I I FHCS = Flat Head Cap Screw 111111111 1 HHB = Hex Head Bolt...
- Page 8 Assembly of the equipment takes professional installers about 2 hours. If this is the first time you have assembled this type of equipment, plan to spend more time. It is strongly recommended to assemble the equipment by professional installers. You may find it quicker, safer, easier to assemble this equipment with the help of a friend, as some of components may be large, heavy or awkward to handle alone.
- Page 10 Step 1 -70-...
- Page 11 Step 2 1. Complete Big Foot Plate (#22) assembly using: one Telescope Frame for Adj. Foot Plate (#20) one Adj. Support (#21) one M12*80 BHCS (#57) two<l>13*<l>24*1.5 Washer (#49) one M12 Nylon Lock Nut (#61) 2. Attach Big Foot Plate (#22) assembly to main unit using: three M 12*80 BHCS (#57) six<l>13*<!>24*1.5 Washer (#49) three M12 Nylon Lock Nut (#61)
- Page 12 Step 3 1. Attach Linear Shaft (#32) to Right and Left Frame (#3,#4) then install 2 Aluminium Pillow Block Bearing (#31) onto each Linear Shaft (#32), secure the Linear Shaft (#32) to Right and Left Frame (#3,#4) using: two 5/16"-18*115 HHB (#70) two <P8.5*<t>22*2 Washer (#71) two <P10*<P13*2 Spacer(#33) two <P38 Plug (#68)
- Page 13 CARRIAGE UNDERSIDE...
- Page 14 Step 4 1. Attach Shoulder Pads (#37) to Left and Right Handle Bars (#10,#11) using: two Shoulder Connector (#28) eight M 10*25 BHCS (#53) eight ¢>11 *¢>20*2 Washer (#48) two M8*12 Screw (#50) 2. Attach remaining Pads (#40,#38,#26) using: one M8*25 Screw (#51) four ¢>...
- Page 15 HOME COMMERCIAL LATEST DATE ENTRY ROUTINE MAINTENANCE MAINTENANCE Inspect; DAILY WEEKLY Links, Pull Pins, Snap Locks, Swivels, Weight Stack Pins Clean; DAILY WEEKLY Upholstery Inspect; DAILY WEEKLY Cables or Belts and their tension Inspect; WEEKLY 3 MONTHS Accessory Bars, and Handles Inspect;...
- Page 16 Links, Pull-Pins, Snap Hooks, Swivels, Weight Stack Pins: *Check all pieces for signs of visible wear or damage. *Check springs in snap hooks and pull-pins for proper tension and alignment. *If the spring sticks or has lost its rigidity, replace it immediately. Upholstery: *To ensure prolonged upholstery life and proper hygiene, all upholstered pads should be wiped down with a damp cloth after every workout.
- Page 18 HUDSONSTEELCO.COM...
