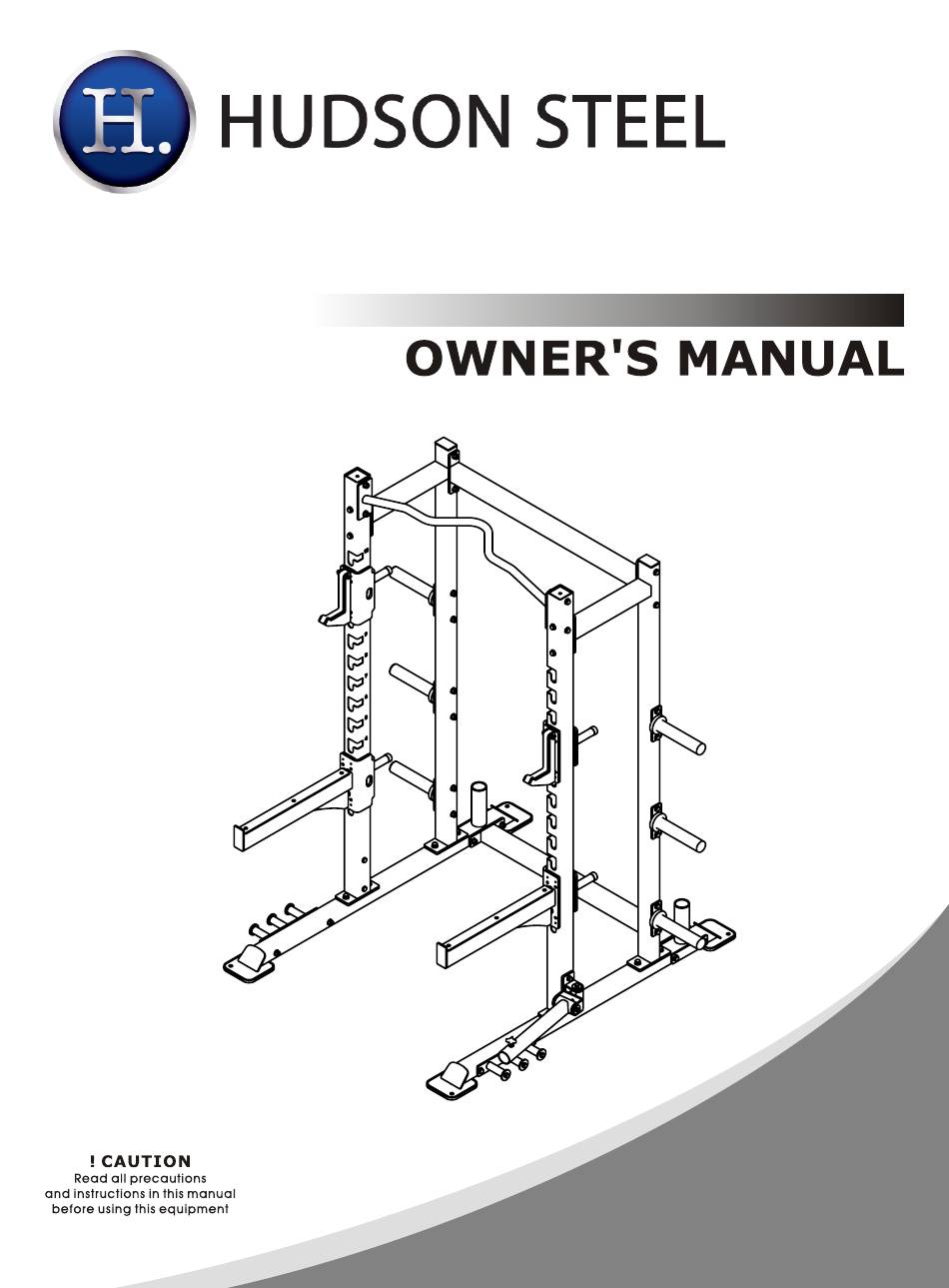

- Page 1 BS018 HALF RACK...
- Page 5 overall DESCRIPTION DESCRIPTION ITEM NO. ITEM NO. Base FrameⅠASSY Battery Base ASSY Base FrameⅡASSY Bumper Front Standing FrameⅠ Hex Head Bolt M12*110 Front Standing FrameⅡ Hex Head Bolt M12*105 Bottom Cross Frame Hex Head Bolt M12*100 Rear Upright Frame ASSY Hex Head Bolt M12*30 Lat Bar Hex Head Bolt M10*30...
- Page 6 Base FrameⅠASSY DESCRIPTION ITEM NO. Base FrameⅠ Rubber Foot Bushing φ 60*φ 51.5*63.5 B ase Frame Ⅱ ASSY DESCRIPTION ITEM NO. Base FrameⅡ Rubber Foot Bushing φ 60*φ 51.5*63.5...
- Page 7 Rear U U p ri ght Frame ASSY DESCRIPTION ITEM NO. Rear Upright Frame Plug □50.8*76.2 Rear We igh t Stor ag e ASSY DESCRIPTION ITEM NO. Rear Weight Storage Plug φ 48...
- Page 8 CarriageⅠASSY DESCRIPTION ITEM NO. CarriageⅠ Plastic PlateⅠ Plastic PlateⅡ Long Plastic Plate Aluminum Ring φ 25 Aluminum Cap φ 25 Grip φ 30*φ 22*95 Button Head Cap Screw M6*16 Flat Head Cap Screw M6*12 Socket Set Screw M5*3 CarriageⅡASSY DESCRIPTION ITEM NO.
- Page 9 Weight HookⅠASSY DESCRIPTION ITEM NO. Weight HookⅠ Hook Aluminum Cap φ 25 Grip φ 30*φ 22*95 Aluminum Ring φ 25 Plastic PlateⅠ Plastic PlateⅡ Hex Head Bolt M8*55 Button Head Cap Screw M6*16 Flat Head Cap Screw M6*12 Socket Set Screw M5*3 Nylon Lock Nut M8 Flat Washer φ...
- Page 10 Strap Hook ASSY DESCRIPTION ITEM NO. Strap Hook Sleeve φ 30*φ 20*91 End Cover Hex Head Bolt M10*25 Flat Washer φ 11*φ 20*2 Battery Base ASSY DESCRIPTION ITEM NO. Fixing Frame Rotating Frame Turret Mounting Bracket Bronze Bearing φ 38*φ 25.4*18 Pivot φ...
- Page 11 Assembly STEP 1 DESCRIPTION DESCRIPTION ITEM NO. ITEM NO. Base FrameⅠASSY Hex Head Bolt M12*110 Base FrameⅡASSY Hex Head Bolt M12*105 Front Standing FrameⅠ Hex Head Bolt M12*100 Front Standing FrameⅡ Hex Head Bolt M12*30 Bottom Cross Frame Nylon Lock Nut M12 Flat Washer φ...
- Page 12 Assembly STEP 2 DESCRIPTION DESCRIPTION ITEM NO. ITEM NO. CarriageⅠASSY Weight HookⅠASSY CarriageⅡASSY Weight HookⅡASSY...
- Page 13 Assembly STEP 2 DESCRIPTION DESCRIPTION ITEM NO. ITEM NO. Rear Weight Storage ASSY Nylon Lock Nut M12 Flat Washer φ 13*φ 24*1.5 Battery Base ASSY Flat Washer φ 11*φ 20*2 Bumper Spring Washer φ 10 Hex Head Bolt M12*100 Hex Head Bolt M10*30...
