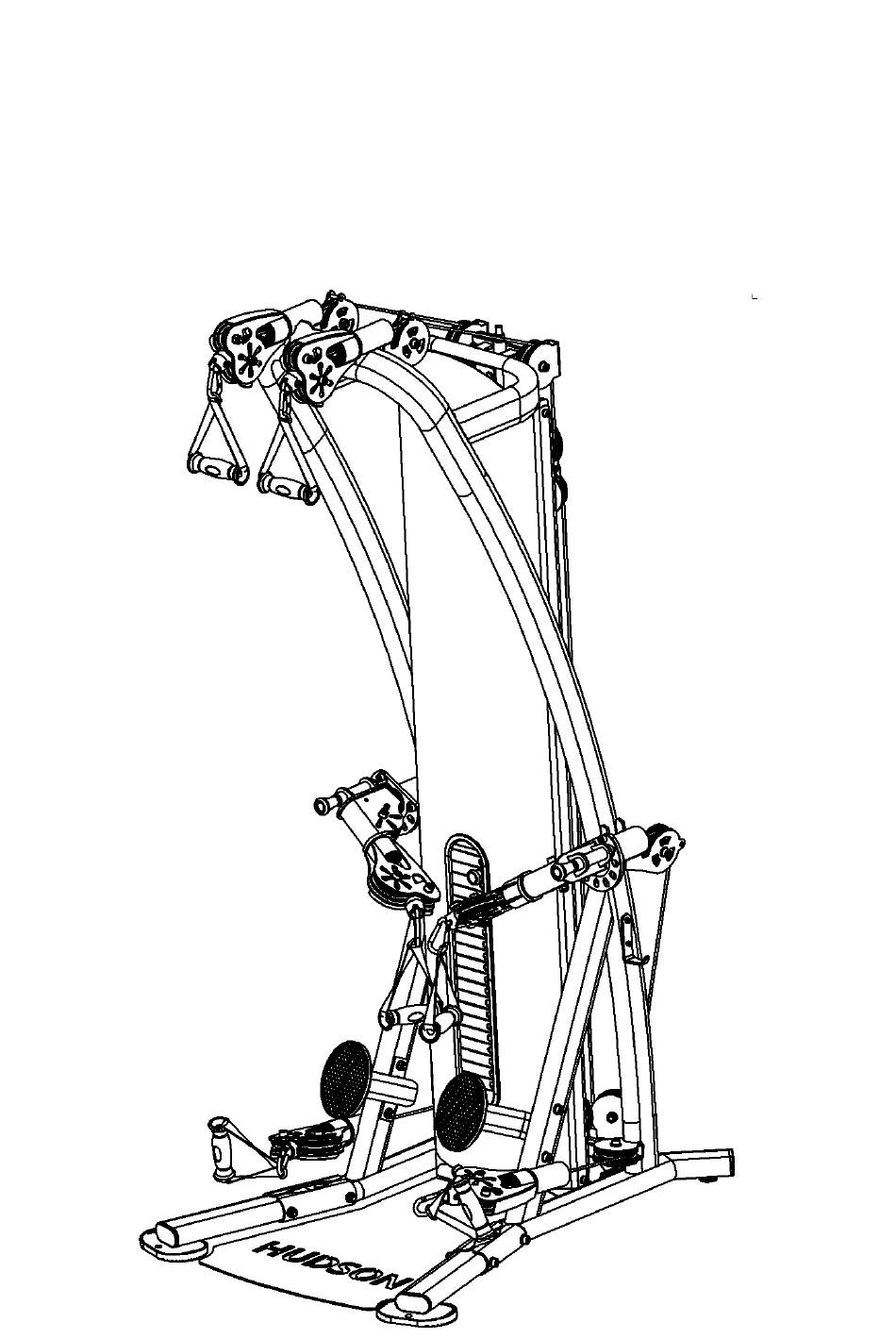

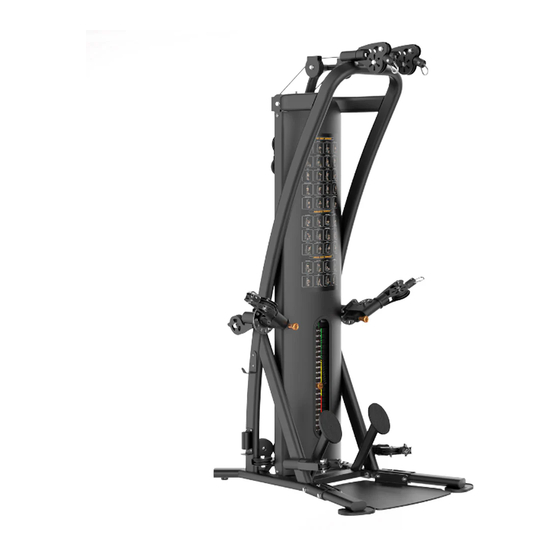

- Page 1 OWNER’S MANUAL MODEL# HG20...
-
Page 2: Assembly Steps
ASSEMBLY STEPS Step 1. NAME SPECIFICATION QUANTITY Shroud 1787*390*169*1.5 Flat Washer Φ9*Φ16*1.6 Hex Socket Head Bolt M8*10 Adjust the middle left and right swivel frame according to the direction of the arrow and fix well. Loose #57 and #71 and remove #16. - Page 3 Step 2. NAME SPECIFICATION QUANTITY Base Frame Curved splint 170*49*42*4 Adjustable Feet Φ36*M10*20 Flat Washer Φ11*Φ20*2 Hex Pan-head Bolt M10*15 Hex Socket Head Bolt M10*105 Attach 2 #43 to the base frame and tighten. Attach #2 and #36 to the base frame using: ...
- Page 4 Step 3. NAME SPECIFICATION QUANTITY Guide Rod Φ19*1700 Top Plate 210*60*40 Weight Plate 252*101.6*25.4 Pedal 544*673*50*3 Flat Washer Φ11*Φ20*2 Hex Socket Head Bolt M10*100 Loose #58 and remove #62. Make the #17 lean towards the direction of the arrow and remove #25. Install 20 pieces #26 one by one.
- Page 5 Step 4. NAME SPECIFICATION QUANTITY Shroud 1787*390*169*1.5 Flat Washer Φ9*Φ16*1.6 Hex Socket Head Bolt M8*10 Attach #16 to the main fram using: #57 #71 #16...
- Page 6 Step 5. NAME SPECIFICATION QUANTITY Left Pedal Holder Right Pedal Holder Flat Washer Φ11*Φ20*2 Hex Socket Head Bolt M10*60 Attach #14 and #15 to the main frame using: #56 #58 #73...
- Page 7 Step 6. NAME SPECIFICATION QUANTITY Handle Combo Hook Φ8*80 Install 6 pieces #51 on each terminals and attach handles to the hooks.
