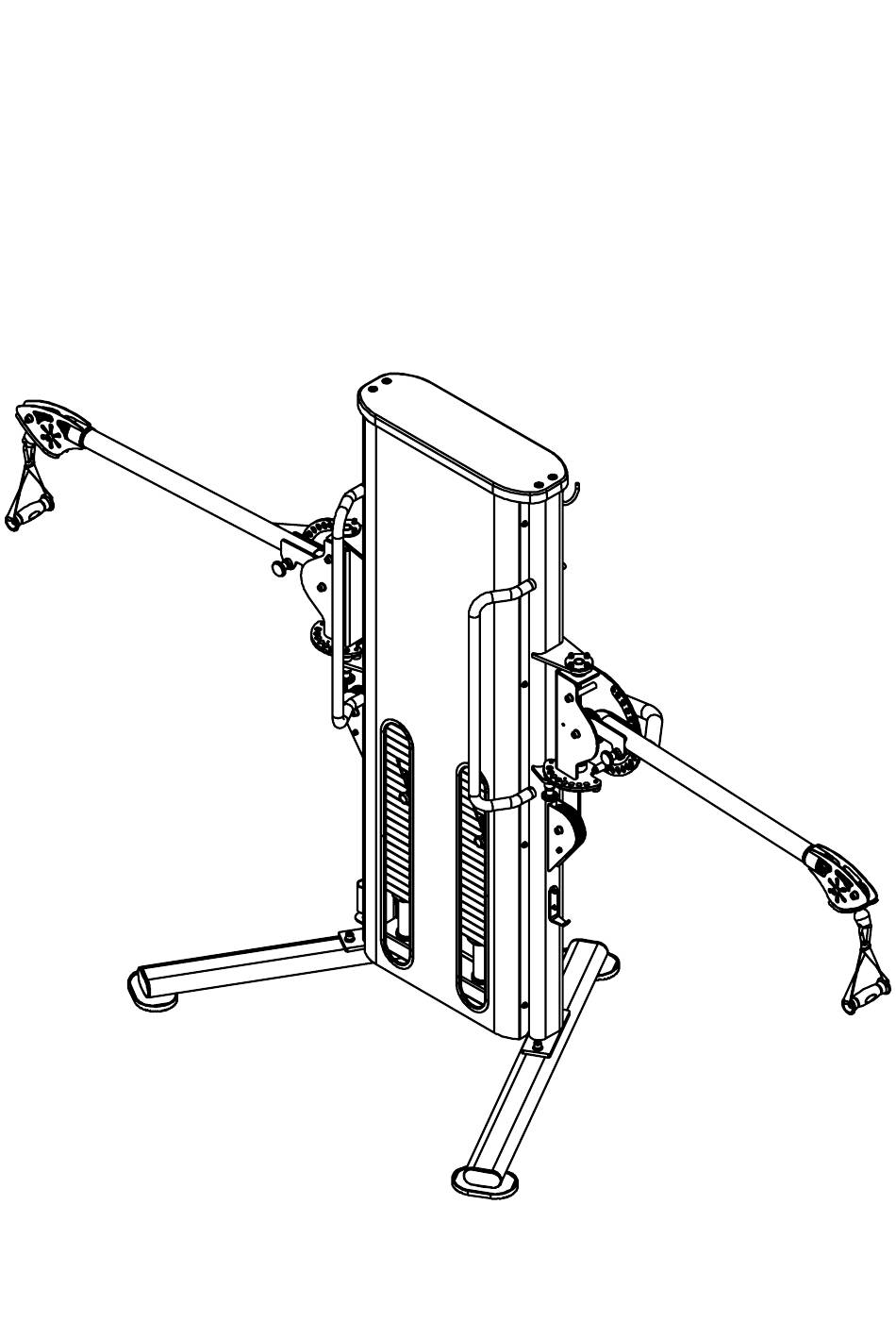

- Page 1 OWNER’S MANUAL MODEL# FTS70...
- Page 2 ASSEMBLY STEPS Step 1. NAME SPECIFICATION QUANTITY Main Frame Base Frame Hex Bolt M12*40 Flat Washer Φ13.5*Φ24*2.5 Spring Washer Φ12 1. Attach #2 to #1 using: #74 #81 #85...
- Page 3 Step 2. NAME SPECIFICATION QUANTITY Main Frame Left Turn Frame Right Turn Frame Left Arm Right Arm Cable Φ5*6170 Φ95 Pulley Φ95*Φ10.2*24 Hex Bolt M10*105 Flat Washer Φ11*Φ20*2...
- Page 4 1. Remove the C, A, B from #29. Through #29 to #7 then install B, A and C. 2. Attach #46 and #3 to #7 using: #73 #80 #87 3. Attach #8 to #4 in the same way. Step 3.
- Page 5 Step 4. NAME SPECIFICATION QUANTITY Front Shroud 1697*560*60*1.5 Back Shroud 1697*560*60*1.5 Top Cover 660*210*30 Hex Bolt M5*10 Hex Bolt M8*25 Flat Washer Φ5.3*Φ15*1 Flat Washer Φ9*Φ16*1.6 1. Attach #15 to Step 3 Assembly using: #65 #77 2. Attach #14 to Step 3 Assembly using: ...
- Page 6 Step 5. NAME SPECIFICATION QUANTITY Handle Cable Φ5*6220 Hex Bolt M10*105 Flat Washer Φ11*Φ20*2 Spring Washer Φ10 1. Tighten the #29 then attach #9 to Step 4 Assembly using: #73 #80 #84...
