OWNER'S MANUAL
DEFINITION LAT PULL/ROW

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DEFINITION LAT PULL/ROW and is the answer not in the manual?

Questions and answers

Related Manuals for HUDSON STEEL DEFINITION LAT PULL/ROW

Summary of Contents for HUDSON STEEL DEFINITION LAT PULL/ROW

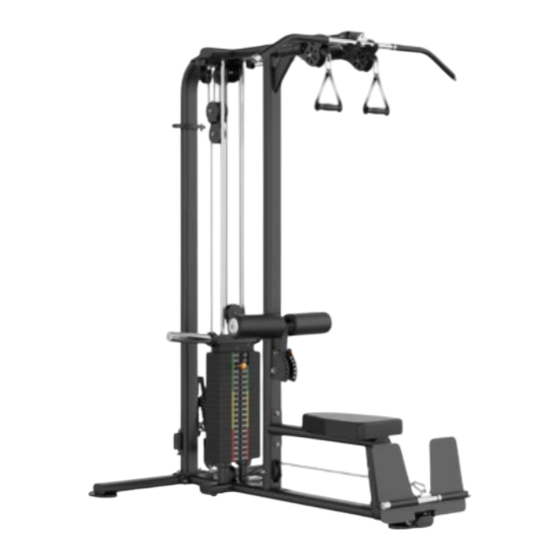

  • Page 1 OWNER’S MANUAL DEFINITION LAT PULL/ROW...

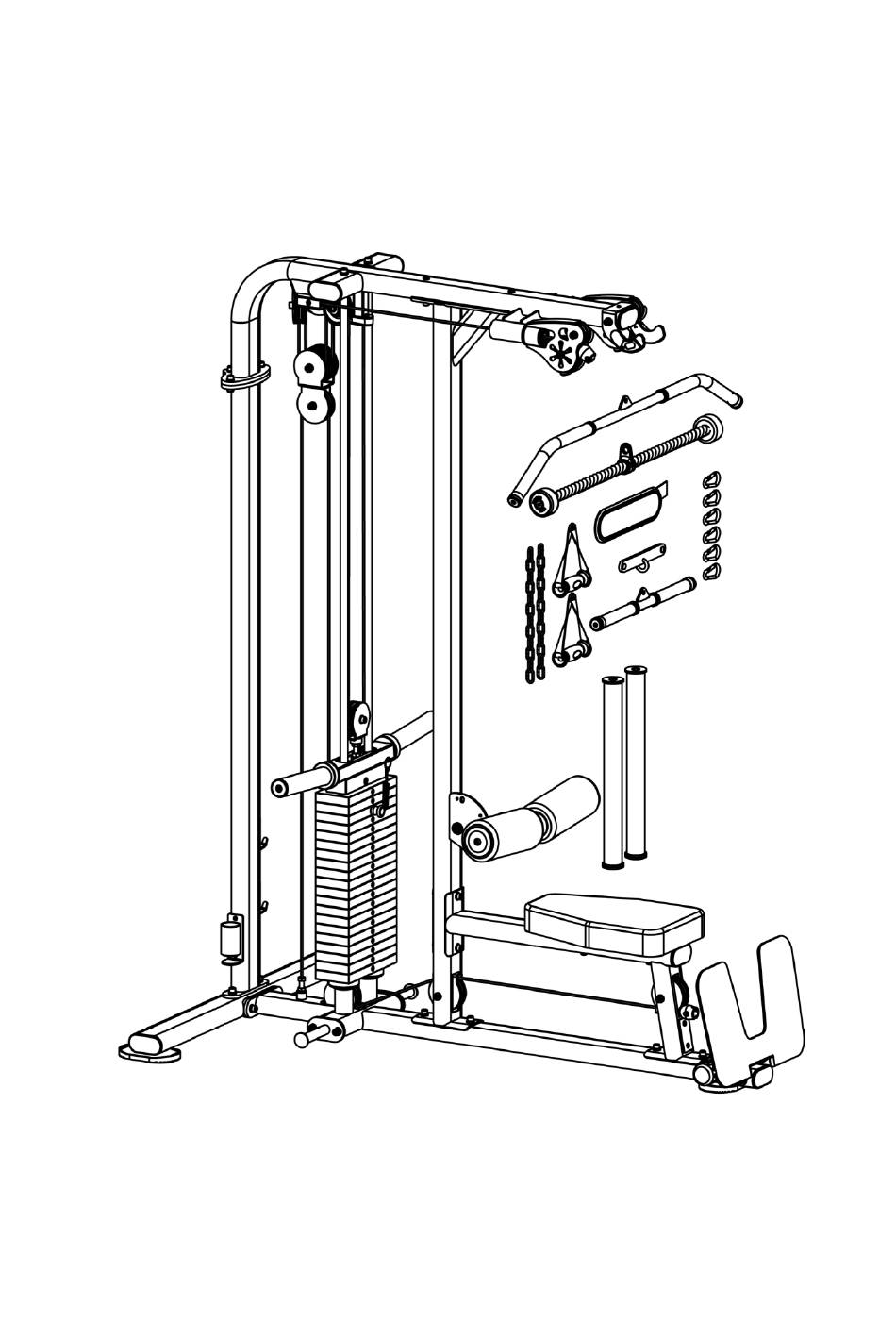

  • Page 2: Exploded View

    EXPLODED VIEW...

  • Page 3: Parts List

    PARTS LIST Item Description Specification Front Base Tube Front Upright Frame Back Upright Frame Bottom Base Tube Upper Support Frame Seat Cushion Tube Barbell Stand Foam Roller Pulley Bracket Pulley Frame Side Storage Rack Bands peg Long Support Frame Handle Frame Lat Pull down Frame Handle Bracket Rorating Pulley Frame...
  • Page 4 Bearing Washer Φ32*Φ25.5*1 Powder metallurgy sleeve Φ18*Φ14*Φ10*6 Small Ring Φ1.5*31 Magnetic Pin Φ10*100 Seat Cushion 450*280*70 Leg Curl Foam Roller Φ110*Φ26*250 Rope Φ28.5*915 Ankle-cap 340*90*10 Handle Φ44*132*182 12 Link Φ5*21*370 Upper Cable Φ5*5655 Lower Cable Φ5*4500 Upper Handle foam Φ24*3*394(HDR) 175 Handle foam Φ24*3*175(HDR) Nylon Washer...
  • Page 5 Flat Nut 1/2"-13UNC Hex Socket-head Bolt M6*20 Hex Socket-head Bolt M8*10 Hex Socket-head Bolt M10*25 Hex Socket-head Bolt M10*35 Hex Socket-head Bolt M10*45 Hex Socket-head Bolt M10*70 Hex Socket-head Bolt M10*75 Hex Socket-head Bolt M10*80 Hex Socket-head Bolt M10*115 Hex Socket-head Bolt M10*120 Hex Socket-head Bolt M10*130...

  • Page 6: Assembly Steps

    ASSEMBLY STEPS Step 1. NAME SPECIFICATION QUANTITY Front Base Tube Bottom Base Tube Flat Washer Φ11*Φ20*2 Spring Washer Φ10 Hex Socket-head Bolt M10*251 Attach #1 to #4 using:  #74  #75  #80 Then tighten all the bolts;...
  • Page 7 Step 2. Attach #25 to #1 using:  #74  #92 Then tighten all the bolts; Install #58, #32, #31, #7 on #25 one by one. Attach #7 to #31 using:  #74  #75  #80 Then tighten all the bolts; Install #40 on #10, then screw #10 onto selector shaft on (31).
  • Page 8 Step 3. Attach #1, #2, #3 to #4 using:  #74  #75  #80 Then tighten all the bolts; Attach #25, #2, #3 to #5 using:  #74  #75  #76  #80  #81 M12*40 Then tighten all the bolts; NAME SPECIFICATION QUANTITY...
  • Page 9 Step 4. NAME SPECIFICATION QUANTITY Front Base Tube Front Upright Frame Seat Cushion Tube 50178 Fixing Board with two holes 178*50*5 Flat Washer Φ11*Φ20*2 Spring Washer Φ10 Hex Socket-head Bolt M10*25 Hex Socket-head Bolt M10*75 Attach #2, #6, #24 to #1 using: ...
  • Page 10 Step 5. Attach #12 to #1 using:  #74  #75  #80 Then tighten all the bolts; Attach #19 to #1 using:  #74  #76  #83 Then tighten all the bolts; Attach #20 to #1 using:  #51 ...
  • Page 11 Step 6. Attach #8 to #2 using:  #27  #28  #36  #91 Make sure #27 with narrow edge facing inward, Then tighten all the bolts; Attach #41 to #6 using:  #74  #84 Then tighten all the bolts; NAME SPECIFICATION QUANTITY...
  • Page 12 Step 7. NAME SPECIFICATION QUANTITY Front Base Tube Front Upright Frame Upper Support Frame Seat Cushion Tube Pulley Bracket Pulley Frame Upper Cable Φ5*5655 Lower Cable Φ5*4500 Remove the cable buffer terminal from one end of #47, and then connect #5, #9 and #10 as shown in the diagram, and finally reinstall the cable buffer terminal back to #47.
  • Page 13 Step 8. NAME SPECIFICATION QUANTITY Long Support Frame Handle Frame Lat Pull down Frame Handle Bracket 10LBS Weight Stack 252*101.6*25.4 Rope Φ28.5*915 Ankle-cap 340*90*10 Handle Φ44*132*182 12 Link Φ5*21*370 Bumper Φ80*25 Safety Hook Φ8*80 Install #14, #15, #16, #43, #44, #45, #46,#68 and other accessories on the machine according to the needs of the exercise;...
