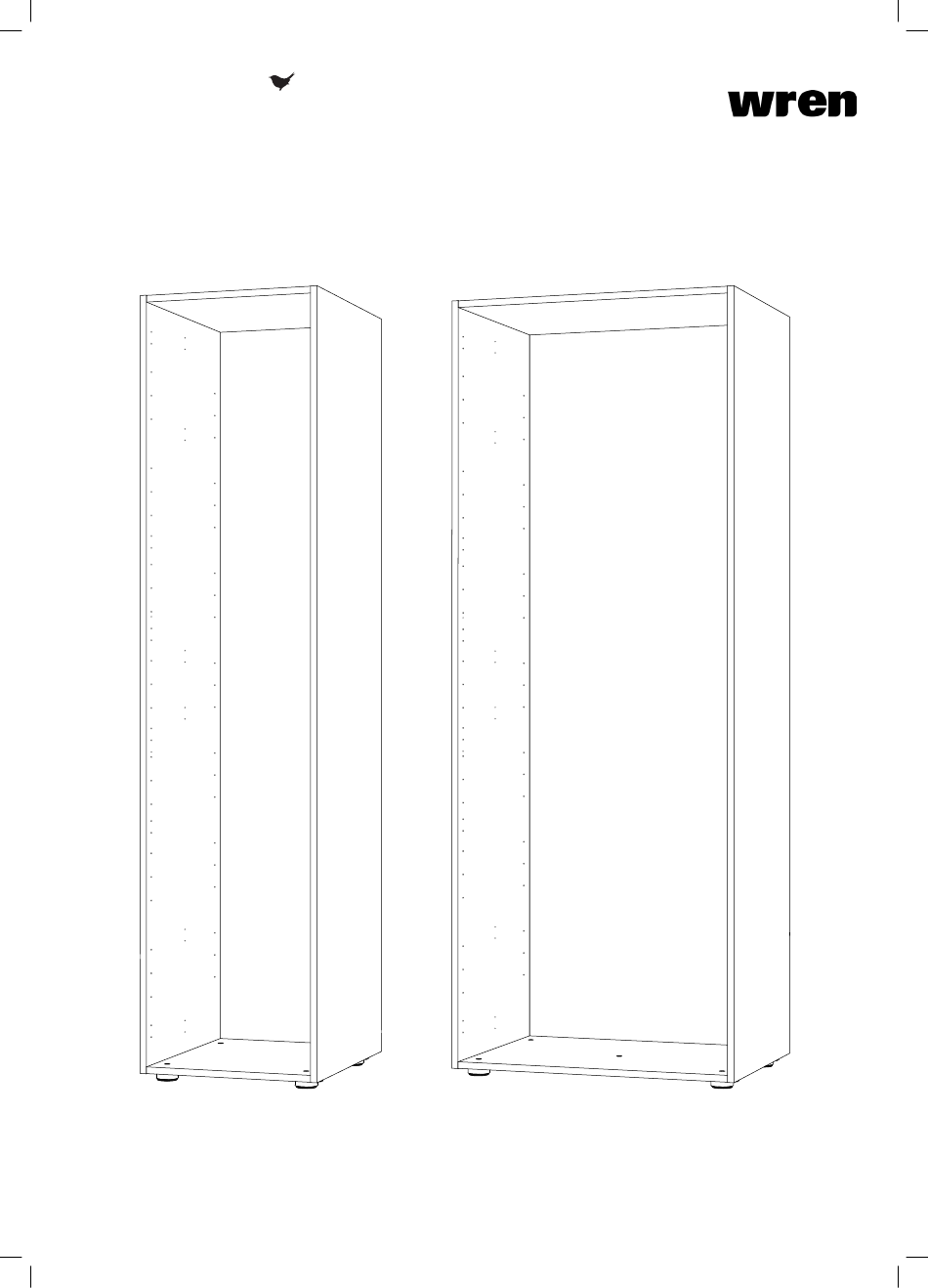

- Page 1 ROBE UNIT 590 Open Robe Assembly Guide For Internal Use: FI.WR.INS.141_590_OPENRobe_AssemblyGuide_Rev2...
- Page 2 ROBE UNIT 590 Open Robe Assembly Guide BEFORE YOU START THIS PRODUCT MUST BE SECURED TO THE WALL INSTALLATION SHOULD BE PERFORMED BY A COMPETENT PERSON ONLY. THIS PRODUCT COULD BE DANGEROUS IF INCORRECTLY INSTALLED Hex Key NOT to be used with CAM DOWEL &...
- Page 3 ROBE UNIT 590 Open Robe Assembly Guide CONTENTS Robe panels Components 6-11 Robe Assembly Leg Attachment Sliding Robe Leg Attachment Secure Robe To Wall & Adjacent Units Internal Layout Options Hanging Rail Locations 17-18 Internal Drawer Installation 19-20 Sliding Robe - Internal Drawer / Storage Installation Loose Shelf Fitting For Internal Use: FI.WR.INS.141_590_OPENRobe_AssemblyGuide_Rev2...
- Page 4 ROBE UNIT 590 Open Robe Assembly Guide Back Panel End Panels Bottom Fixed Shelf Top Fixed Shelf Rails Loose Shelf Pack (Cb) (Ct) (Inc Fixings) RAILS PROVIDED WITH THIS UNIT MAY DIFFER IN COLOUR TO THE REST OF THE UNIT See Pages 15 for hanging rail / loose shelf layouts For Internal Use: FI.WR.INS.141_590_OPENRobe_AssemblyGuide_Rev2...
- Page 5 ROBE UNIT 590 Open Robe Assembly Guide (F) x20 (KK) x4 (L) x28 (K) x12 (W) x12 (H) x12 Wooden 13mm 15mm 30mm Cam Dowel Cam Lock Dowel Screw Screw Screw (JJ) x4 (LL) x5 (T) x16 15mm Back Panel...
- Page 6 ROBE UNIT 590 Open Robe Assembly Guide Step 1. Seat dowels (F) into holes in both end panels (B) as shown. For Internal Use: FI.WR.INS.141_590_OPENRobe_AssemblyGuide_Rev2 Page 6...
- Page 7 ROBE UNIT 590 Open Robe Assembly Guide Step 2. Seat cam dowels (W) into holes in both end panels (B) as shown. Do not use power tools with cam dowel (W) or cam lock (H) For Internal Use: FI.WR.INS.141_590_OPENRobe_AssemblyGuide_Rev2 Page 7...
- Page 8 ROBE UNIT 590 Open Robe Assembly Guide Step 3. Attach panels (Ct), (Cb) & (D) to panels (B), using cam dowels (W), and dowels (F) in positions as shown. All cam locks (H) are to be positioned facing the outside of the unit, for ease of tightening.
- Page 9 ROBE UNIT 590 Open Robe Assembly Guide Step 4. Insert cam locks (H). Do NOT tighten until Step 6. Step 5. Trim the edgeband covering the groove on the bottom of the end panels. Slide back panel (A) into groove of end panels (B).
- Page 10 ROBE UNIT 590 Open Robe Assembly Guide Step 6. Hand tighten all cam locks (H), this will tighten the unit together. Do not use power tools with cam dowel (W) or cam lock (H) Step 7. Ensure unit is square. Secure back panel (A) with 15mm screws (L) equally spaced at the top and bottom of back panel (A) into the fixed shelves (Ct) and (Cb) as shown.
- Page 11 ROBE UNIT 590 Open Robe Assembly Guide Step 8. Secure back panel using 16 x back panel clips (T). Slide the back panel clips (T) into the groove of both end panels (B). The back panel clips (T) should be evenly spaced as shown . Once in place, tighten screw.
- Page 12 ROBE UNIT 590 Open Robe Assembly Guide Step 9. Position top section of legs as shown. Ensure legs are rotated to provide support to the end panels (B). Secure with 2 x 15mm screws per leg. Attach bottom section of legs and set all legs to the same height.
- Page 13 ROBE UNIT 590 Open Robe Assembly Guide Sliding Robe Specific Step 9. The rear 2 legs (+ extra 5th leg if required) will use the existing leg positions. Position the 2 front legs as shown. Ensure legs are rotated to provide support to the end panels (B).
- Page 14 Ensure the unit is level and positioned correctly. Wren recommends securing the robe to the wall using rails (D). Drill pilot holes through back panel (A) and rails (D) into the wall. Screw through the pilot holes into the wall, place cover stickers on the heads to conceal them.
- Page 15 ROBE UNIT 590 Open Robe Assembly Guide ROBE INTERNAL LAYOUT OPTIONS 1. 1 Shelf and 1 Rail 5. 1 Rail, 2 Internal Drawers 2. 1 Shelf and 2 Rails 6. 4 Shelves, 2 Internal Drawers 3. 4 Shelves and 1 Rail 7.
- Page 16 ROBE UNIT 590 Open Robe Assembly Guide Hanging Rails. Attach hanging rail plates onto end panels (B) as shown using 2 x 15mm screws (L) provided per hanging plate. Using the measurements below screw the hanging rail plate onto the end panel using the top hole. Ensure the hanging plate is straight and screw into the bottom hole.
- Page 17 ROBE UNIT 590 Open Robe Assembly Guide Ensure d ecor end panels are installed before fitting internal drawer unit. Internal Drawers. A. Insert the internal drawer unit into the robe unit. Align the back of the drawers with the back of the robe unit, ensuring the drawer unit is centred inside the robe unit.
- Page 18 ROBE UNIT 590 Open Robe Assembly Guide C. Screw through drawer end panel, into the filler panel using 2 x 30mm screws (K). Repeat on opposite side. D. Screw down through the drawer unit fixed shelf into the Robe fixed shelf using 4 x 30mm screws (K).
- Page 19 ROBE UNIT 590 Open Robe Assembly Guide Sliding Door Robe Internal Drawers & Storage. A. Insert the internal drawer unit into the robe unit. Align the back of the drawers with the back of the robe unit, position the unit against the left or right of the unit. (Away from where the sliding doors overlap) B.
- Page 20 ROBE UNIT 590 Open Robe Assembly Guide C. Secure the storage unit to the robe unit with 2 x 30mm screws (K) by screwing through the end panel into robe end panel. Lift the loose shelves and screw in-line with where the shelf sits to conceal the screw head.
- Page 21 ROBE UNIT 590 Open Robe Assembly Guide Loose Shelves Secure shelf peg (JJ) to end panels (B) using 1 x 13mm screw (KK) per shelf peg. 4 x shelf pegs (JJ) are required per loose shelf. Shelf Peg Position loose shelf onto shelf pegs (JJ) ensuring the spikes on the shelf pegs locate in the holes on the bottom of the loose shelf.
- Page 22 ROBE UNIT 590 Open Robe Assembly Guide For Internal Use: FI.WR.INS.141_590_OPENRobe_AssemblyGuide_Rev2 Page 22...
- Page 23 ROBE UNIT 590 Open Robe Assembly Guide For Internal Use: FI.WR.INS.141_590_OPENRobe_AssemblyGuide_Rev2 Page 23...
