TROUBLESHOOTING GUIDE

1. Many problems with the operation of exit
devices are caused by factors other than
the device itself. Among the most common
is a misalignment or an improper fit of the
door within the frame.
2. Another common source of problems is
improper installation. Even if all cutouts
and screw holes are properly located, exit
devices must be securely fastened to
properly reinforced doors. Hollow doors
and frames with a structural thickness
(metal skin plus reinforcement, or solid
hardwood) must have at least three full
screw threads to be considered reinforced.
3. Most problems with dogging occur on
vertical rod devices. When the dogging
function is hard to engage or will not work
at all, the rods may be incorrectly adjusted
allowing the mechanism to bottom out.
Readjust rods per the device instructions
or as outlined on the previous pages.
Copyright © 2002-2024, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole
36
or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
Patent pending and/or patent www.assaabloydss.com/patents.

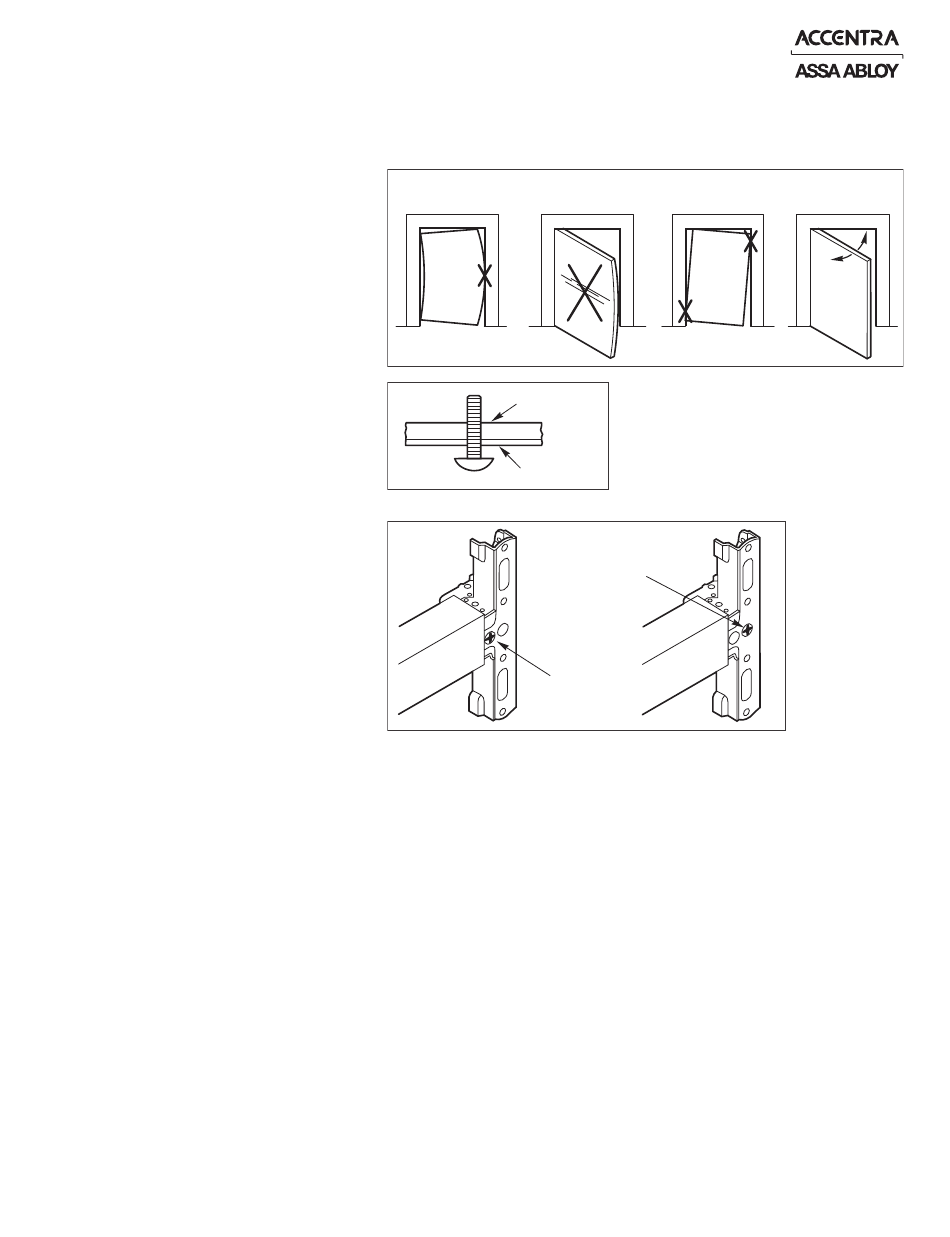

DOOR MUST DOOR MUST NOT
