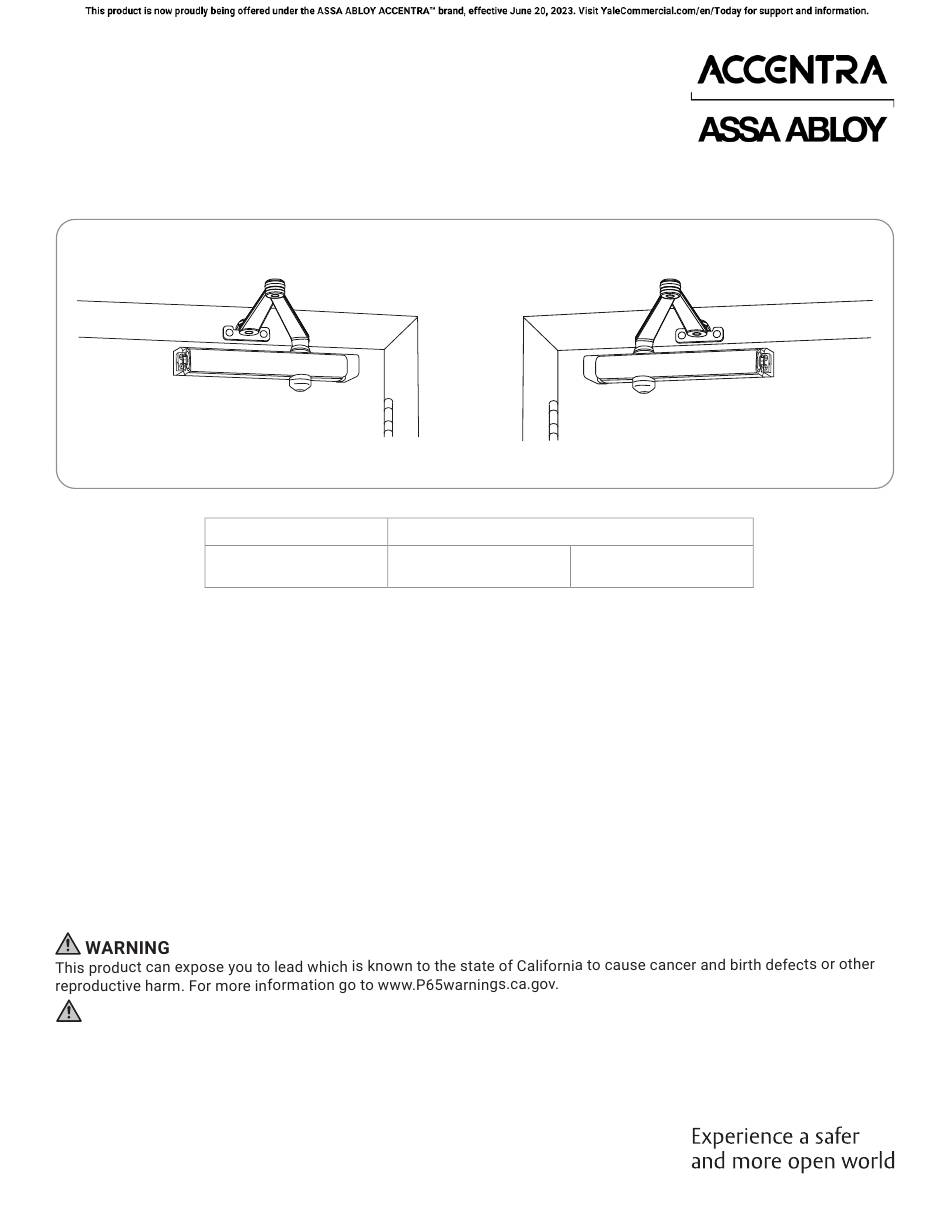

Assa Abloy ACCENTRA 3000 Series Installation Instructions

3000 Series Door Closer
Models R3301 and R3501
Rigid Regular Arm, Non-Hold Open
Installation Instructions
Closer mounts on hinge (pull) side of door. Models shown with narrow cover installed.
Left Hand Door - LH
Right Hand Reverse - RHR
NOTE: For Special Applications a separate door and frame preparation template is packed with these instructions. Use
this instruction sheet for installation sequence and closer adjustments only.
Multi-Size Closer
Series can be adjust from power size 1 thru 6
1
Size 1 = weakest power, size 6 = strongest.
†
*With or without "DL" suffix (delayed action).
This series of door closers is not available with a hold open function.
MAXIMUM HINGE SIDE FRAME REVEAL IS 1/8" (3mm).
y
All components are non handed.
y
It is recommended that the door, on which the door closer will be installed, be hung on ball bearing hinges.
y
Door must swing freely.
A separate door stop, supplied by others, is recommended to prevent damage to the door closer, closer arm, or to the door, frame
y
or adjacent walls.
Door and Frame must be properly reinforced, or use of special fasteners employed, to prevent the mounting screws from pulling
y
out.
All dimensions are given in inches with corresponding metric dimensions (millimeters) in parenthesis.
y
Door closer cover projects 2-1/8" (54 mm) from door surface.
y
WARNING
Attention Installer: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the
opening, and ASSA ABLOY makes no representations or warranties concerning what such impact may be in any specific
situation. When retrofitting any portion of an existing fire-rated opening, or specifying and installing a new fire-rated open-
ing, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with
all applicable codes and ratings.
855-557-5078 x 2 • www.accentra-assaabloy.com
Copyright © 2005, 2008, 2024, ASSA ABLOY ACCENTRA™ Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
80-9303-2215-010 Rev 3 05/24
Pull Side Installation
Closer Power
†
1
(Slim Line Cover)
Series
R3301*
(Full Cover)
Right Hand Door - RH
Left Hand Reverse - LHR
R3501*
