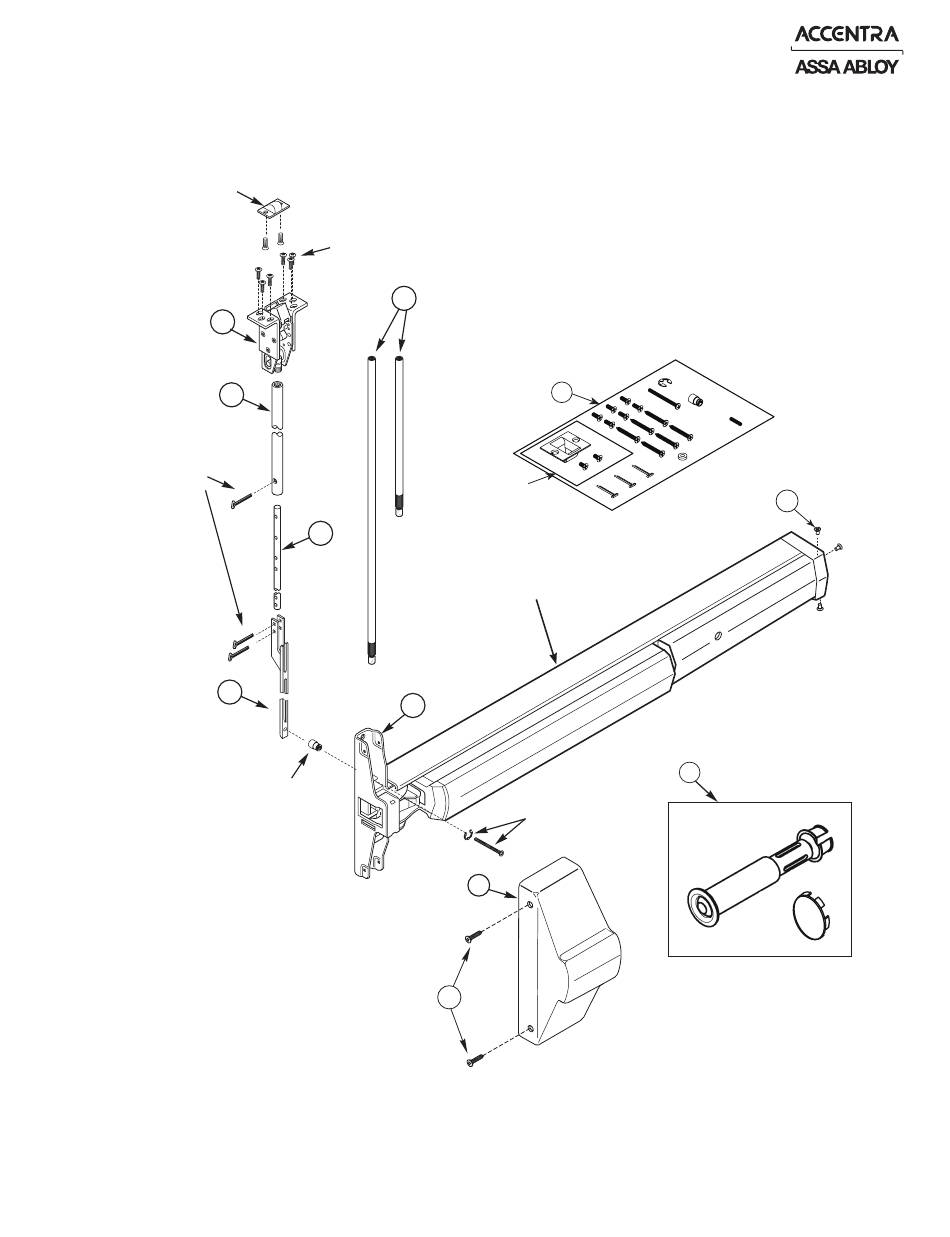

7160/7160F LBR CONCEALED VERTICAL ROD
(LESS BOTTOM ROD)
PART OF
CVR PACK
ITEM 46
PART OF
CVR PACK
ITEM 46
37
47
46
51
PART OF
CVR PACK
ITEM 46
761
STRIKE
23
PACKET
36
See Page 28-29 for Bar Assembly
52
1
55
PART OF
PART OF
CVR PACK
CVR PACK
ITEM 46
ITEM 46
2
23
7000 Series Architectural Exit Device Parts Manual
