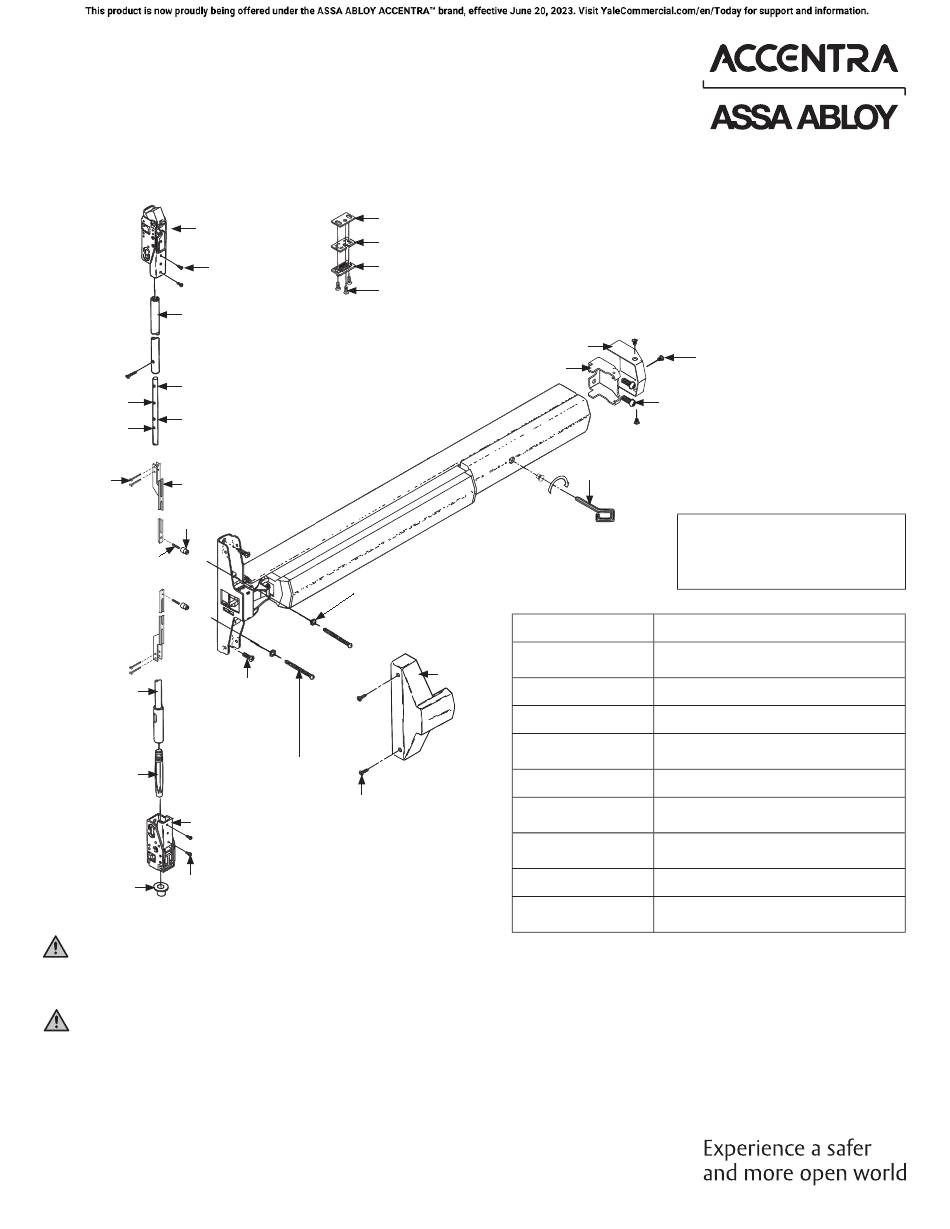

Assa Abloy ACCENTRA 7220 Installation Instructions Manual

7220
Concealed Vertical Rod Exit Device
Installation Instructions
Top Latch
(2) 10-24 x
1/2" PRHMS
Top Tube
8' (2.44m) Opening
7'6"(2.29m)
Opening
7'2" (2.18m) Opening
7' (2.13m)
Opening
(2) Arm & Bracket
(5)
Assembly
Cotter Pin
(2) Yoke Pin
(2)
Set Screw #8-32
Bottom Rod
(2) 1/4-20 X 1"
Assembly
PRHMS
(Special Head)
(2) #8-32
UNC-2A X 2" PHSMS
Deadbolt
(Assembly Aid)
Bottom Bolt Case
(2) 10-24 x 1/2" PRHMS
790 Strike
WARNING
This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other
reproductive harm. For more information go to www.P65warnings.ca.gov.
WARNING
Attention Installer: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the
opening, and ASSA ABLOY makes no representations or warranties concerning what such impact may be in any specific
situation. When retrofitting any portion of an existing fire-rated opening, or specifying and installing a new fire-rated opening,
please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all
applicable codes and ratings.
1-855-557-5078 Ext. 2 • www.accentra-assaabloy.com
Copyright © 1999, 2013, 2023, 2024, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in
whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
Shim (2 supplied)
Strike Plate
791 Strike
(3) 10-24 x 3/4" PFHMS
End Cap
End Clamp
(2) E-Rings
ABBREVIATION
PPH"AB"SMS
Cover
PRHMS
PHSMS
PFHUMS
PFHMS
(2) 8-32 x 5/16"
PRH"AB"SMS
PFHUMS
PTH"AB"SMS PHILLIPS
PPHMS
PFH"AB"SMS
All dimensions are in inches (mm)
unless otherwise noted.
(3) 8-32 x 5/16" PFHUMS
(2) 1/4-20 x 1" PPHMS
Dogging
Feature to hold bolts retracted and
Dogging Key
touchpad depressed, for push-pull
door operation.
To Dog Device
1. Insert dogging key.
2. Hold touchbar depressed.
3. Turn key 1/4 turn clockwise.
FASTENER DESCRIPTION
PHILLIPS PAN HEAD TYPE "AB" SHEET
METAL SCREW
PHILLIPS ROUND HEAD MACHINE SCREW
PHILLIPS HEAD SHEET METAL SCREW
PHILLIPS FLAT HEAD UNDER CUT
MACHINE SCREW
PHILLIPS FLAT HEAD MACHINE SCREW
PHILLIPS ROUND HEAD TYPE "AB" SHEET
METAL SCREW
PHILLIPS TRUSS HEAD TYPE "AB" SHEET
METAL SCREW
PHILLIPS PAN HEAD MACHINE SCREW
PHILLIPS FLAT HEAD TYPE "AB" SHEET
METAL SCREW
80-9472-0020-000 07/24
