Assa Abloy ACCENTRA 7130(F) Series Installation Instructions Manual

7130(F) Series
Mortise Exit Devices
Installation Instructions
Outside Trim
Device is packed ready for any ASSA
ABLOY 650F or 660F Series Trim.
(2) 12-12-24
FHPWMS
798 Universal Strike
Armor Front
Armor Front Screw
(2) 12-12-24
FHPWMS
Mortise Lock Chart
Function
Panic Label
Exit Only
F02 35K
F03 (Knob)
F03 (Lever) 35L
F05 38T
F06 (Knob) 38K
F08 (Lever) 38L
WARNING
Attention Installer: Any retrofi t or other fi eld modifi cation to a fi re rated opening can potentially impact the fi re rating of the
opening, and ASSA ABLOY makes no representations or warranties concerning what such impact may be in any specifi c
situation. When retrofi tting any portion of an existing fi re-rated opening, or specifying and installing a new fi re-rated opening,
please consult with a code specialist or local code offi cial (Authority Having Jurisdiction) to ensure compliance with all appli-
cable codes and ratings.
1-855-557-5078 Ext. 2 • www.accentra-assaabloy.com
Copyright © 1996, 2013, 2023, 2024, ASSA ABLOY ACCENTRA™ Access and Egress Hardware Group, Inc. All rights reserved.
Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is
prohibited.
Mortise Lock
(See Mortise Lock Chart)
Lock Number
Fire Label
35KF
35LF
38TF
38KF
38LF

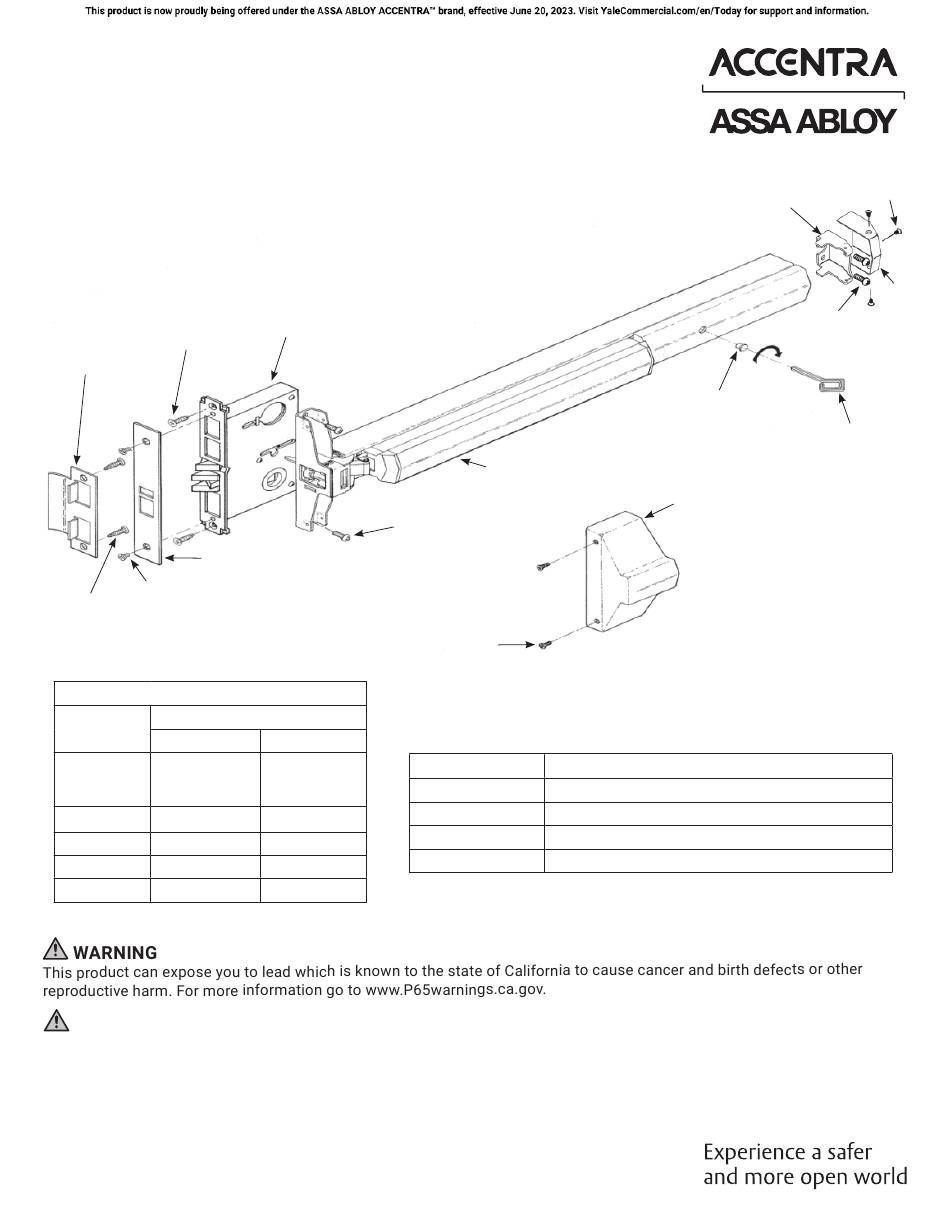

Device Assembly
(2) 1/4-20 x 3/4" PRHMS
(Special Head)
(2) 8-32 x 5/16"
PUFHMS
ABBREVIATION FASTENER DESCRIPTION
PPHMS PHILLIPS PAN HEAD MACHINE SCREW
PRHMS PHILLIPS ROUND HEAD MACHINE SCREW
FHPWMS FLAT HEAD PHILLIPS WOOD/MACHINE SCREW
PUFHMS PHILLIPS UNDER CUT FLAT HEAD MACHINE SCREW
(3) 8-32 x 5/16"
PUFHMS
End Clamp
(2) 1/4-20 x 1"
PPHMS
Hole Plug
(Fire Devices)
Dogging Key
Cover
Dogging
Feature to hold bolts retracted and
touchpad deressed, for push-pull
door operation.
To Dog Device
1. Insert dogging key.
2. Hold touchbar depressed.
3. Turn key 1/4 turn clockwise.
80-9470-0030-000 04/24
End Cap
