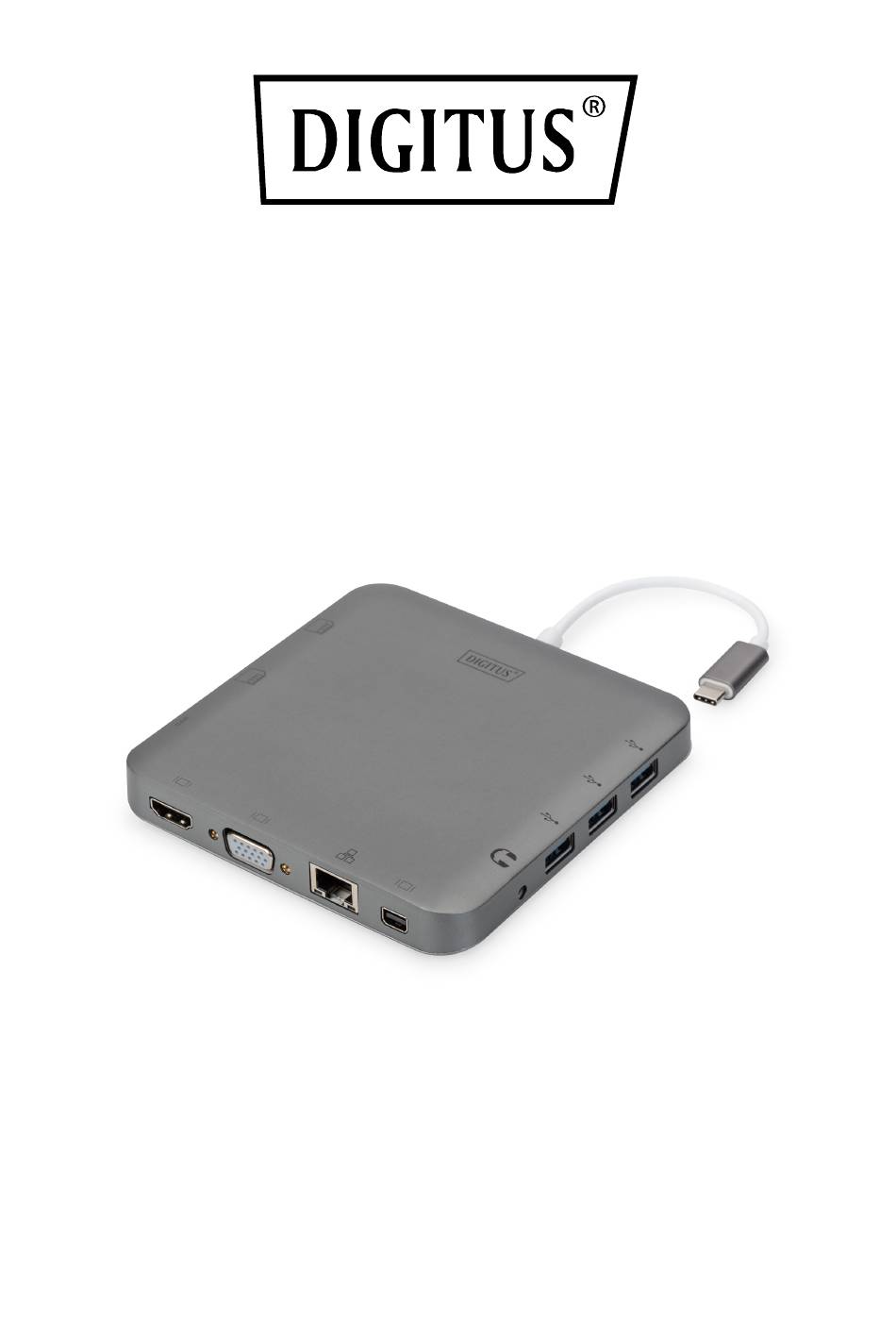

  • Page 1 Universal Docking Station, USB Type-C™ Quick Installation Guide DA-70876 Rev.3...

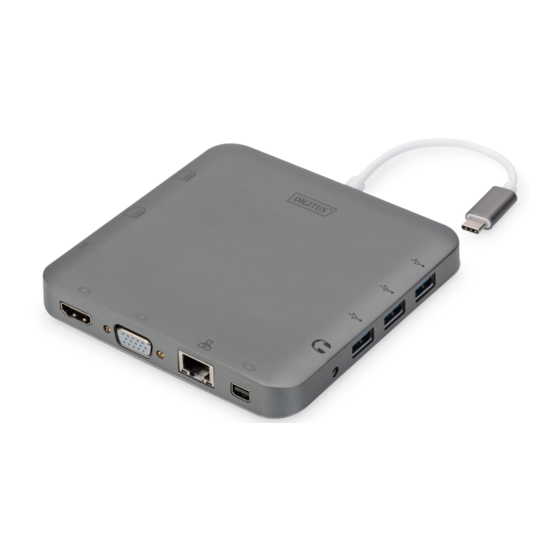

  • Page 2 1. INTRODUCTION The fully functional universal docking station, USB Type-C™ from Digitus offers you everything to create a fully equipped workspace. It offers three video interfaces (HDMI, MiniDP and VGA), where two monitors can be operated at the same time.

  • Page 3: Package Content

     Support Secure Digital v3.0 UHS-I (Reading speed max 70Mbps, Writing speed max 90Mbps)  Support MultiMediaCard (MMC) specification  Support Micro SD/SDHC/SDXC (up to 128 GB)  Supports: Mac OS 10.10.2 and above, Google Chrome, Windows: Windows 7 to Windows 10 Note The product is a Multi-Stream-Transport (MST) hub and supports the extended...

  • Page 4: Specifications

    4. SPECIFICATIONS Input/Output Connector Input USB-C Male x1 Output HDMI Female x1 Mini DP Female x1 VGA Female x1 USB-C Female x1 USB 3.0 Female x3 RJ45 X1 Stereo x1 SD card slot x1 Micro SD card slot x1 USB-C Female x1 for charging Environmental Operating Temperature 0°C to +45°C...

  • Page 5: Operation

    5. OPERATION 1) Connect the USB-C male port of this product to your USB-C notebook/ultrabook 2) Connect the three USB3.0 ports to three USB devices 3) Connect the Mini DisplayPort port of the Docking to display with Mini DisplayPort port with one Mini DisplayPort cable 4) Connect the HDMI port to HD display with one HDMI Cable 5) Connect the VGA port to HD display with one VGA Cable 6) Connect Gigabit Ethernet port of this product to Ethernet Router with an...

  • Page 6: Port Description

    Not all USB-C ports support all features of the USB Type-C™ standard. Make sure your notebook's USB-C port supports DisplayPort Alternate Mode (DP-Alt Modi) and USB Power Delivery (PD). The video output capability depends on the graphic card of your notebook and the connected monitor.
