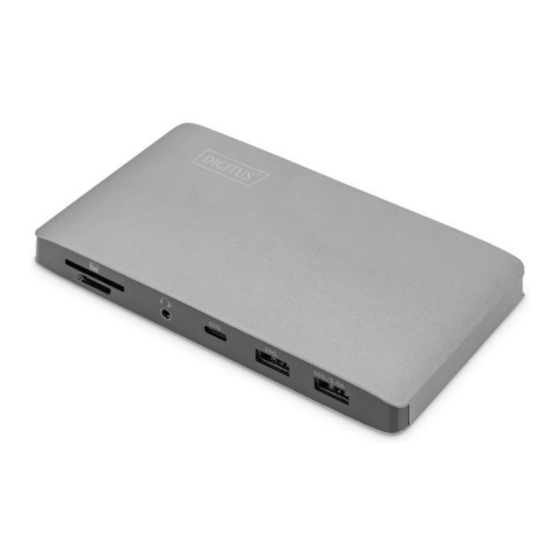

Thunderbolt 3 docking station 8k, usb type-c

Advertisement

Thunderbolt™ 3
Docking Station 8K,
USB Type-C™
Quick Installation Guide
DA-70895

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DA-70895 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Digitus DA-70895

  • Page 1 Thunderbolt™ 3 Docking Station 8K, USB Type-C™ Quick Installation Guide DA-70895...
  • Page 2 Product Introduction The Thunderbolt™ 3 Docking Station from DIGITUS® expands your notebook with 11 additional ports using just one USB-C™ connection. Among other features, it includes 2 DisplayPort video ports to connect a monitor, projector or TV. Thanks to dual monitor support, these can be operated simultaneously.
  • Page 3 Dual display support with Windows OS - Monitor mirroring  & extension Single display support with MAC OS - Monitor mirroring  3x USB 3.0 connections - 2x with up to 10 Gbps SuperSpeed  data transfer, one of the ports with BC 1.2 functionality for charging mobile devices (1.5 A max.), 1x with up to 5 Gbps SuperSpeed data transfer 1x Thunderbolt connection with Power delivery (PD) and date...
  • Page 4 USB-A (on back panel): Support USB3.2 Gen 1 up to 5Gbps; Support max 5V/900mA downstream charging USB-A 1 (on the side): Support USB3.2 Gen 2 up to 10Gbps; Support max 5V/1.5A downstream charging USB-A 2 (near Type-C) Support USB3.2 Gen 2 up to 10Gbps; Support max 5V/900mA downstream charging Type-C: Support USB3.2 Gen 2 up to 10Gbps;...
  • Page 5 1.2 Package Contents  1 x Thunderbolt™ 3 Docking Station 8K, USB Type-C™  1 x Thunderbolt™ 3 Connecting Cable (30 cm)  1 x Power Adapter  1 x QIG...
  • Page 6 1.3 Specifications Thunderbolt™ 3 Receptacle x1 Input DC Power Jack x1  DisplayPort Receptacle x2  RJ45 Receptacle x1 Input /  USB3.2-A 5G Receptacle x1 Output  USB3.2-A 10G Receptacle x2 Connector Output  USB Type-C 10G Receptacle x1 ...
  • Page 7 1.4 Panel Description Connect TBT 3 host or Thunderbolt™ Multi-Function DisplayPort 3 Receptacle (MFDP) Type-C Host DisplayPort Connect DP monitors 1.4 Receptacle x 2 Connect Router with Gigabit RJ45 Receptacle Ethernet (10M/100M/1000M) USB-A Connect USB-A devices 5G Receptacle DC Power Jack Connect 120W DC Power Adapter SD/Micro SD 3.0 Connect SD/Micro SD cards...
  • Page 8 2 Connection Diagram Memory Card Monitor Notebook USB Drive Tablet Power supply Headset Modem/Router Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address.
