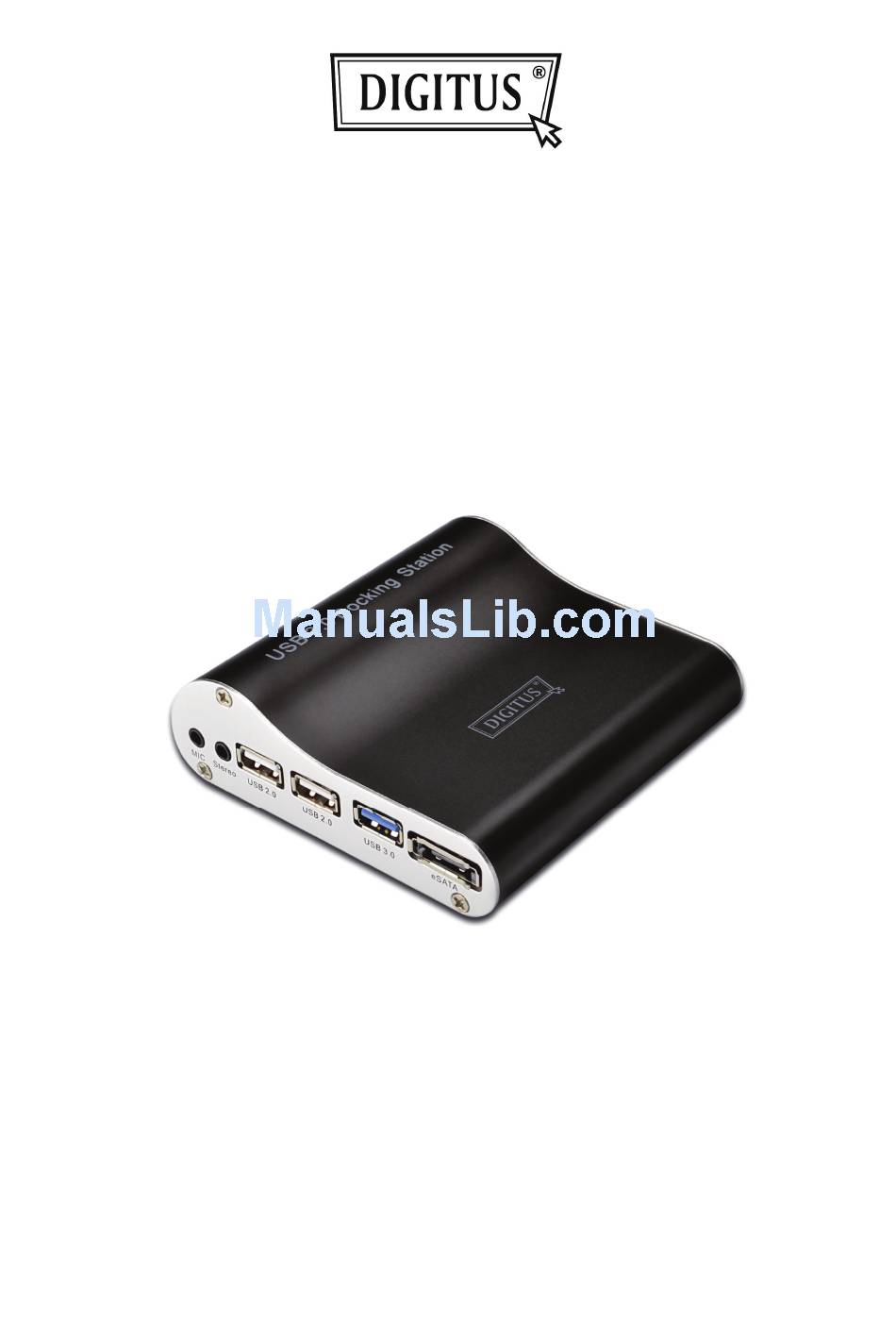

Page 1: Docking Station
USB 3.0 DOCKING STATION User Manual DA-70590... - Page 2 Table of Contents 1.0 Introduction and Features ..........1 2.0 Specifications ..............1 3.0 Package Contents ............2 4.0 Panel Descriptions ............3 5.0 Driver Installation ............4 6.0 Connection ..............5...

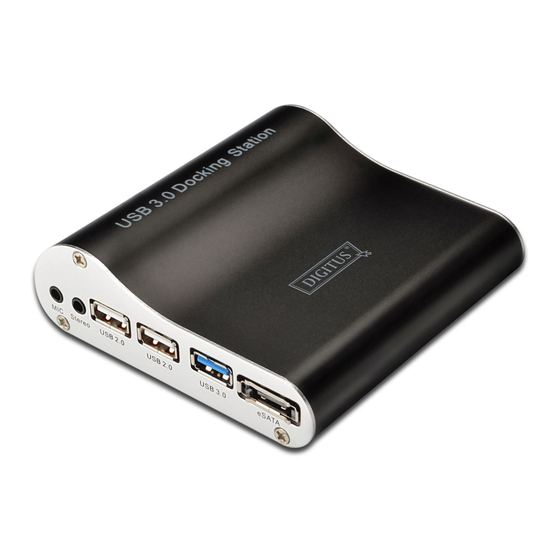

- Page 3 DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. 1.0 INTRODUCTION This USB 3.0 Docking Station uses universal USB technology to pass through critical signals such as video, LAN and peripheral connectivity.
-
Page 4: Specifications
2.0 SPECIFICATIONS Signal Inputs/Output Input Connector 1x Micro USB Female 1x HDMI Female Output Connector 1x eSATA Female 1x USB 3.0 Female 2x USB2.0 Female 1x Microphone 1x Earphone 1x RJ45 Operating Frequency Vertical Frequency Range 50/60Hz HDMI Video Amplifier Max up to 1.65Gbps/165MHz Bandwidth Resolutions(HDTV) -
Page 5: Package Contents
3.0 PACKAGE CONTENTS Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton: Main unit x 1 5V/DC Power Supply x 1 Micro USB 3.0 Cable x 1 ... -
Page 6: Panel Descriptions
4.0 PANEL DESCRIPTIONS 1. Micro USB 3.0 Connect this port to the USB 3.0 port of computer using one provided Micro USB 3.0 cable. 2. HDMI Out Connect this port to HDTV using one HDMI cable. 3. Out LED Indicate the status of the HDMI output. - Page 7 4. Ethernet Connect this port to Ethernet router or Hub 5. Power LED Indicate the status of the Power 6. DC/5V Connect this jack to 5V/2A power adapter 7. MIC Connect this port to Microphone device. 8. Stereo Connect this port to earphone device. 9.
- Page 8 6.0 CONNECTION 1) Plug the power adapter into the DC/5V jack of the Docking station and then connect the AC side of the power adapter into the wall outlet. 2) Connect Micro USB 3.0 female of the Docking station to USB 3.0 port of computer using one provided Micro USB 3.0 cable.
