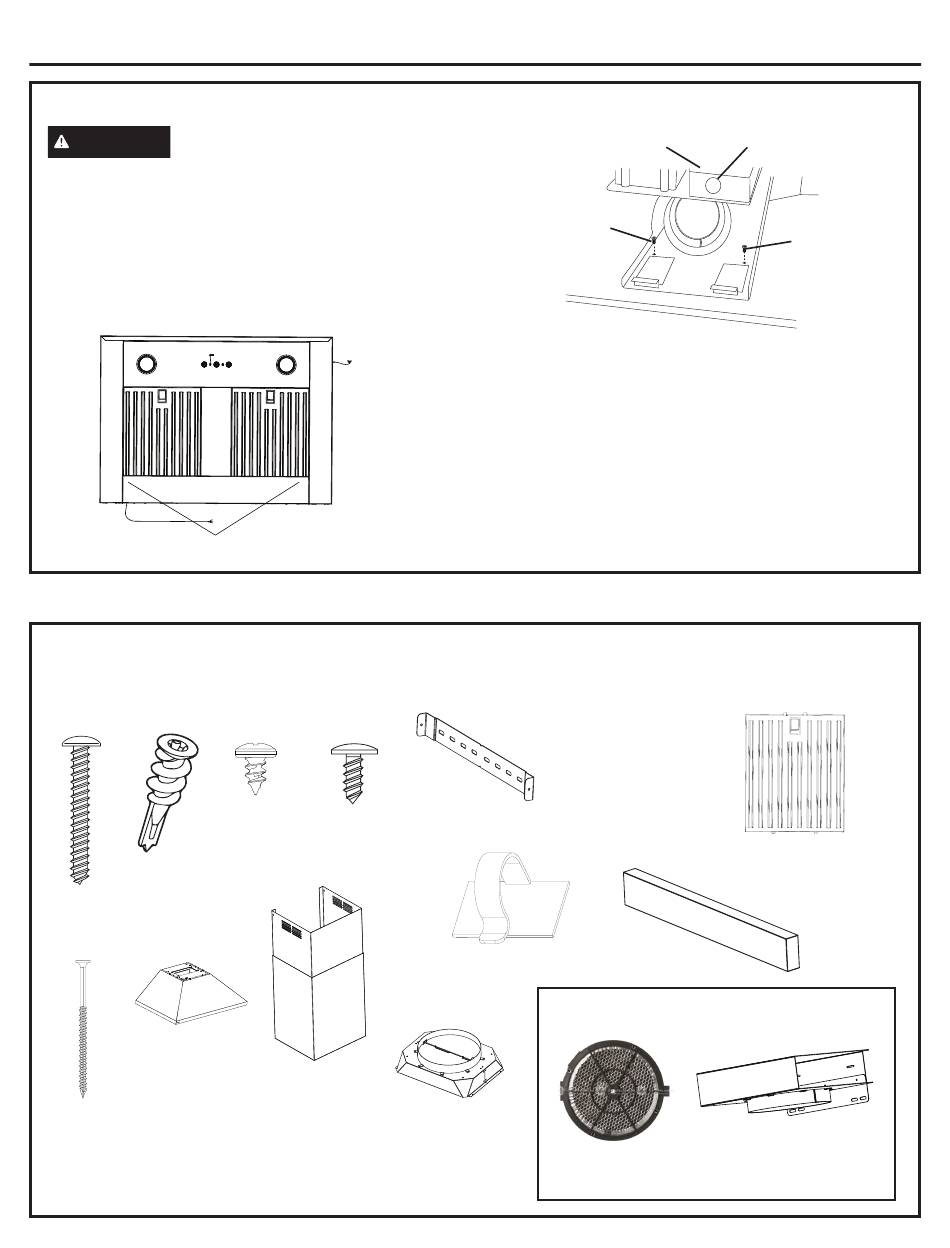

REMOVE THE PACKAGING

CAUTION
Wear gloves to protect against sharp
edges.
■ Remove the duct cover, parts box and foam
packaging.
■ Lift the hood out of the box.
■ Remove and properly discard the plastic wrapping.
■ Remove metal grease filters and side bar packaging.
Mounting screw

CHECK INSTALLATION HARDWARE

Locate the hardware accessory box packed with the
hood and check contents.
8 anchors
Nine 2"
658Dia37
wood
screws
Hood Body
Three 3"
Wood Screws
NOTE: Additional tools, materials and hardware are required to
construct your wall framing support.
31-7000240 Rev. 2
Installation Preparation
6 Damper
10 Duct
screws
cover
screws
Decorative duct
covers
Damper Assembly 8"
Junction box
Mounting screw
■ Remove junction box cover.
■ Remove knockout from junction box.
■ Install strain relief onto junction box.
2 Duct cover
brackets
1 Piece Self Adhesive
Cable Clips
Additional Parts for Recirculation Operation
Optional accessories purchased separately
2 charcoal filters
(UXCF91)
Knockout
2 Stainless Steel
Grease Filters (30")
or 3 Stainless Steel
Grease Filters (36")
Wood Bar
Recirculation box
(UXCN36)
Mounting
screw
