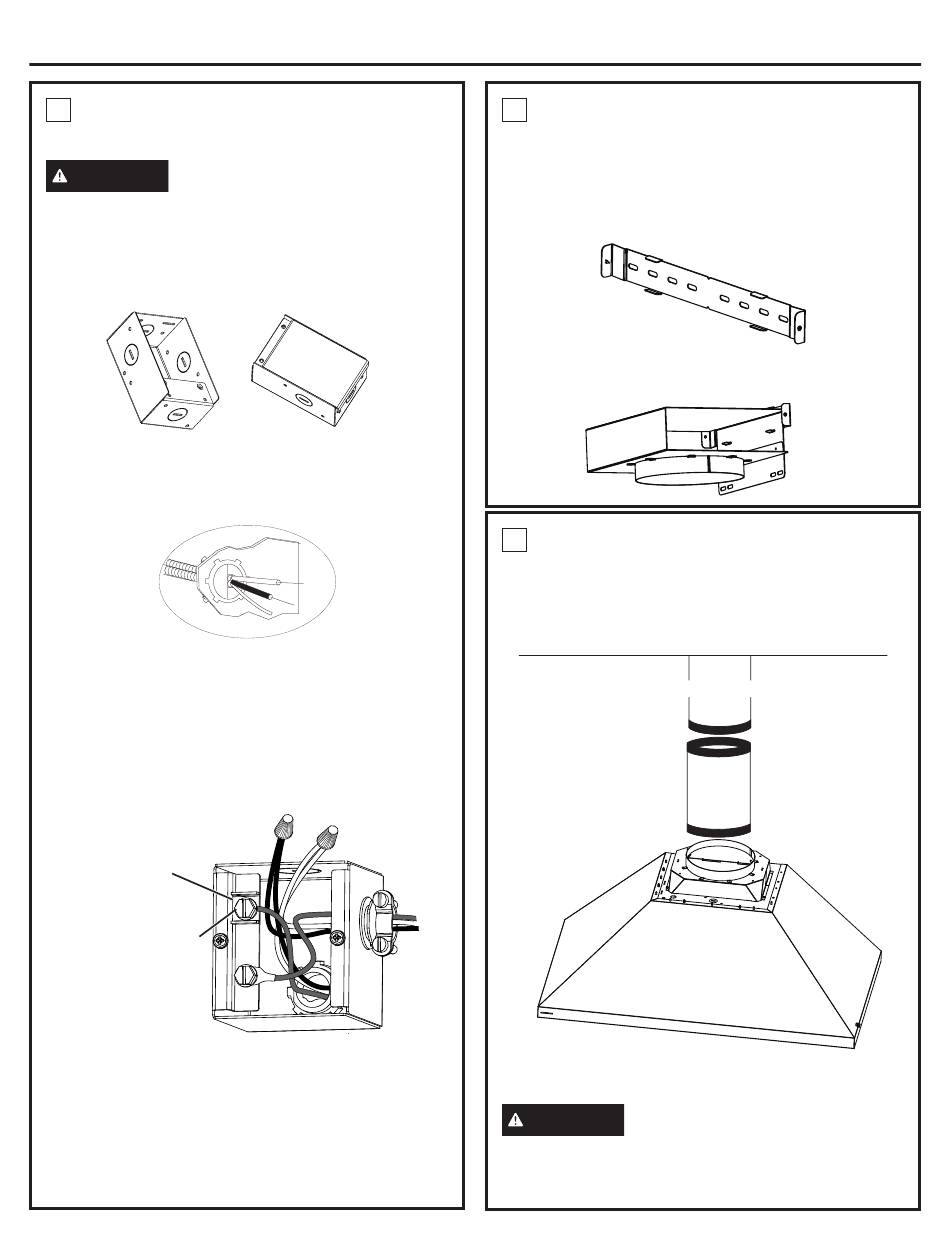

4 CONNECT ELECTRICAL

Verify that power is turned off at the source.
WARNING
If house wiring is not 2-wire with
a ground wire, a ground must be provided by the
installer. When house wiring is aluminum, be sure
to use UL approved anti-oxidant compound and
aluminum-to-copper connectors.
1. Remove junction box cover.
J Box without cover
2. Pull the house wiring through the knockout at the
top or back of the hood and secure with the strain
relief.
3. Use UL listed wire nuts to connect incoming white
to white, and black to black wires.
4. Loosen the green grounding screw (with grounding
bracket) in the junction box. Loop solid copper
house wire clockwise around the green grounding
screw and above the bracket. Firmly tighten the
screw over the loop.
Grounding Bracket
Green Grounding Screw
5. Replace junction box cover and ensure wires are
not pinched.
NOTE: For corded installation:
Use only with rangehood cord-connection kits that
have been investigated and found acceptable for use
with this model rangehood.
31-7000240 Rev. 2
Installation
J Box with cover
5 INSTALL RECIRCULATION BOX
(IF APPLICABLE)
1. Install the top bracket where the upper portion of the
cover stops using the provided anchors and wood
screws, aligning the center notch with the existing
drawn centerline. Make sure the bracket is level.
2. Using the tabs of the bracket, install the
recirculation box on the tabs.

6 CONNECT DUCTWORK

1. Connect duct from the bottom of the recirculation
box or connect the vented house ducting to the top
of the damper as shown.
2. Seal all connections with duct tape.
House Ducting
CAUTION
Do not use sheet metal screws at
the transition to ductwork connection. Doing so will
prevent proper damper operations. Seal connection
with tape only.
Ceiling
