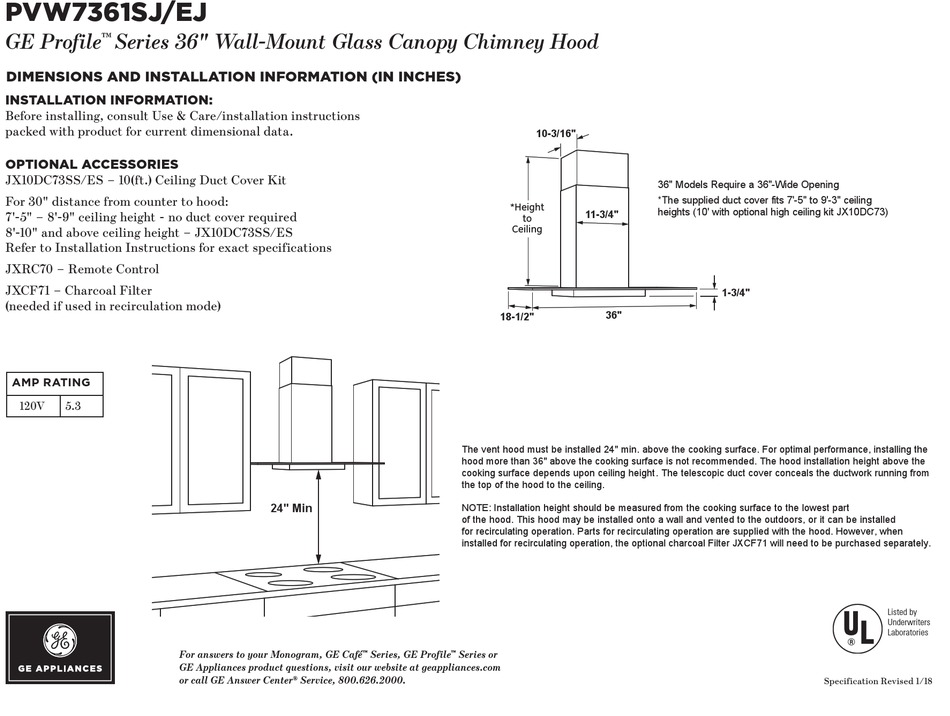

GE Profile PVW7361SJ Installation Instructions

PVW7361SJ/EJ
GE Profile Series 36" Wall-Mount Glass Canopy Chimney Hood
™
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)

INSTALLATION INFORMATION:

Before installing, consult Use & Care/installation instructions
packed with product for current dimensional data.
*Height
OPTIONAL ACCESSORIES
Ceiling
JX10DC73SS/ES – 10(ft.) Ceiling Duct Cover Kit
For 30" distance from counter to hood:
7'-5" – 8'-9" ceiling height - no duct cover required
8'-10" and above ceiling height – JX10DC73SS/ES
Refer to Installation Instructions for exact specifications
18-1/2"
JXRC70 – Remote Control
JXCF71 – Charcoal Filter
36" models require a 36"-wide opening
(needed if used in recirculation mode)
*The supplied duct cover fits 7'-5" to 9'-3" ceiling heights
(10' with optional high ceiling kit JX10DC73)
AMP RATING
120V 5.3
The vent hood must be installed 24" min. above the cooking surface. For optimal performance, installing the
hood more than 36" above the cooking surface is not recommended. The hood installation height above the
cooking surface depends upon ceiling height. The telescopic duct cover conceals the ductwork running from
For answers to your Monogram, GE Café
the top of the hood to the ceiling.
GE Appliances product questions, visit our website at geappliances.com
NOTE: Installation height should be measured from the cooking surface to the lowest part or call GE Answer Center
of the hood. This hood may be installed onto a wall and vented to the outdoors, or it can be installed
for recirculating operation. Parts for recirculating operation are supplied with the hood. However, when
installed for recirculating operation, the optional charcoal Filter JXCF71 will need to be purchased separately.
10-3/16"
11-3/4"
to
36"
24" Min
™
® Service, 800.626.2000.
*The supplied duct cover fits 7'-5" to 9'-3" ceiling heights
10-3/16"
*Height
to
Ceiling
1-3/4"
18-1/2"
36" models require a 36"-wide opening
*The supplied duct cover fits 7'-5" to 9'-3" ceiling heights
(10' with optional high ceiling kit JX10DC73)
The vent hood must be installed 24" min. above the cooking surface. For optimal performance, installing the
hood more than 36" above the cooking surface is not recommended. The hood installation height above the
cooking surface depends upon ceiling height. The telescopic duct cover conceals the ductwork running from
the top of the hood to the ceiling.
NOTE: Installation height should be measured from the cooking surface to the lowest part
of the hood. This hood may be installed onto a wall and vented to the outdoors, or it can be installed
for recirculating operation. Parts for recirculating operation are supplied with the hood. However, when
installed for recirculating operation, the optional charcoal Filter JXCF71 will need to be purchased separately.
The vent hood must be installed 24" min. above the cooking surface. For optimal performance, installing the
hood more than 36" above the cooking surface is not recommended. The hood installation height above the
Series, GE Profile ™ Series or
cooking surface depends upon ceiling height. The telescopic duct cover conceals the ductwork running from
the top of the hood to the ceiling.
NOTE: Installation height should be measured from the cooking surface to the lowest part
of the hood. This hood may be installed onto a wall and vented to the outdoors, or it can be installed
for recirculating operation. Parts for recirculating operation are supplied with the hood. However, when
installed for recirculating operation, the optional charcoal Filter JXCF71 will need to be purchased separately.
36"
18-1/2"
36" models require a 36"-wide opening
(10' with optional high ceiling kit JX10DC73)
36" Models Require a 36"-Wide Opening
*The supplied duct cover fits 7'-5" to 9'-3" ceiling
heights (10' with optional high ceiling kit JX10DC73)
11-3/4"
1-3/4"
24" Min
36"
24" Min
PVW7361SJ_EJ
1-3/4"
Listed by
Underwriters
Laboratories
Specification Revised 1/18
