9 INSTALL GREASE FILTERS

1. Remove protective film.
2. Insert the two back tabs of each filter into the back edge of the hood body.
3. Push the button on the latch to open the latch.
4. Install the front edge of the filter into the front edge of the hood body.
5. Release the latch, making sure it is fully engaged
by hearing a click of the latch and the button is
fully released.
Charcoal Filter (for recirculation installation only)
NOTE: DO NOT rinse, or put charcoal filter in an automatic dishwasher.
The charcoal filter is NOT included with the unit. Order charcoal filter UXCF91. It cannot be cleaned; it must
be replaced. It is recommended that the charcoal filter be replaced every 6 months or if it is noticeably dirty
or discolored.
To reduce the risk of fire and shock, when used in recirculation mode, use only charcoal filter UXCF91.
To inquire about purchasing replacement charcoal filters or to find the location of a dealer nearest you, please call
our toll-free number:
National Parts Center 800.626.2002
To Install
1. Remove the grease filters. See Filters section.

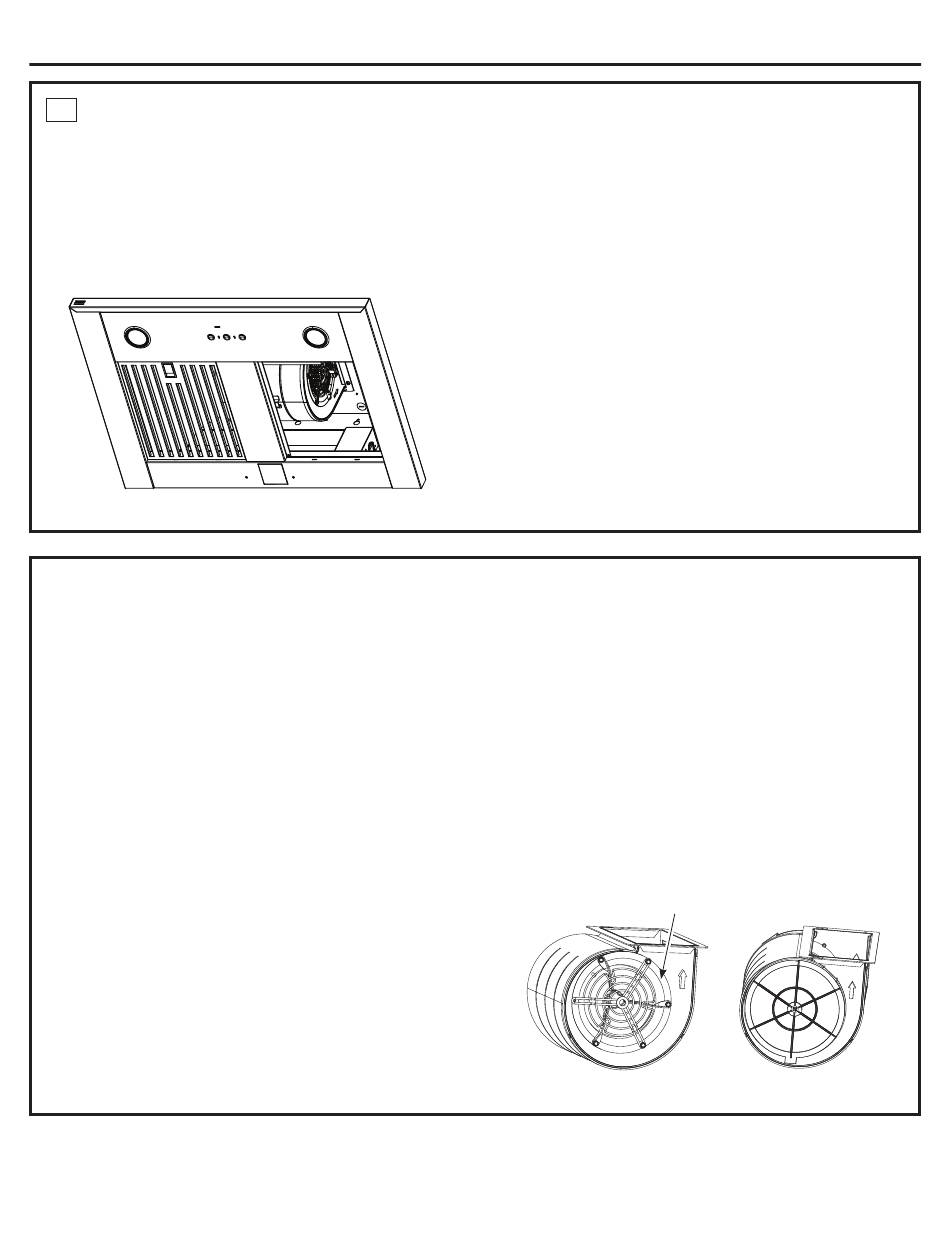

2. Install the charcoal filter mounts to either side of the motor using three screws per side.
3. Insert the tab on the charcoal filter into the triangular slot on the mount.
4. Clip the charcoal filter in until it is locked
5. Repeat with second filter on the other side of the motor.
6. Reattach the metal filters. See Filters section.
To Remove
1. Remove grease filters-See Filters section
2. Unclip the charcoal filter by pressing the release clip.
3. Carefully remove charcoal filter from tab.
