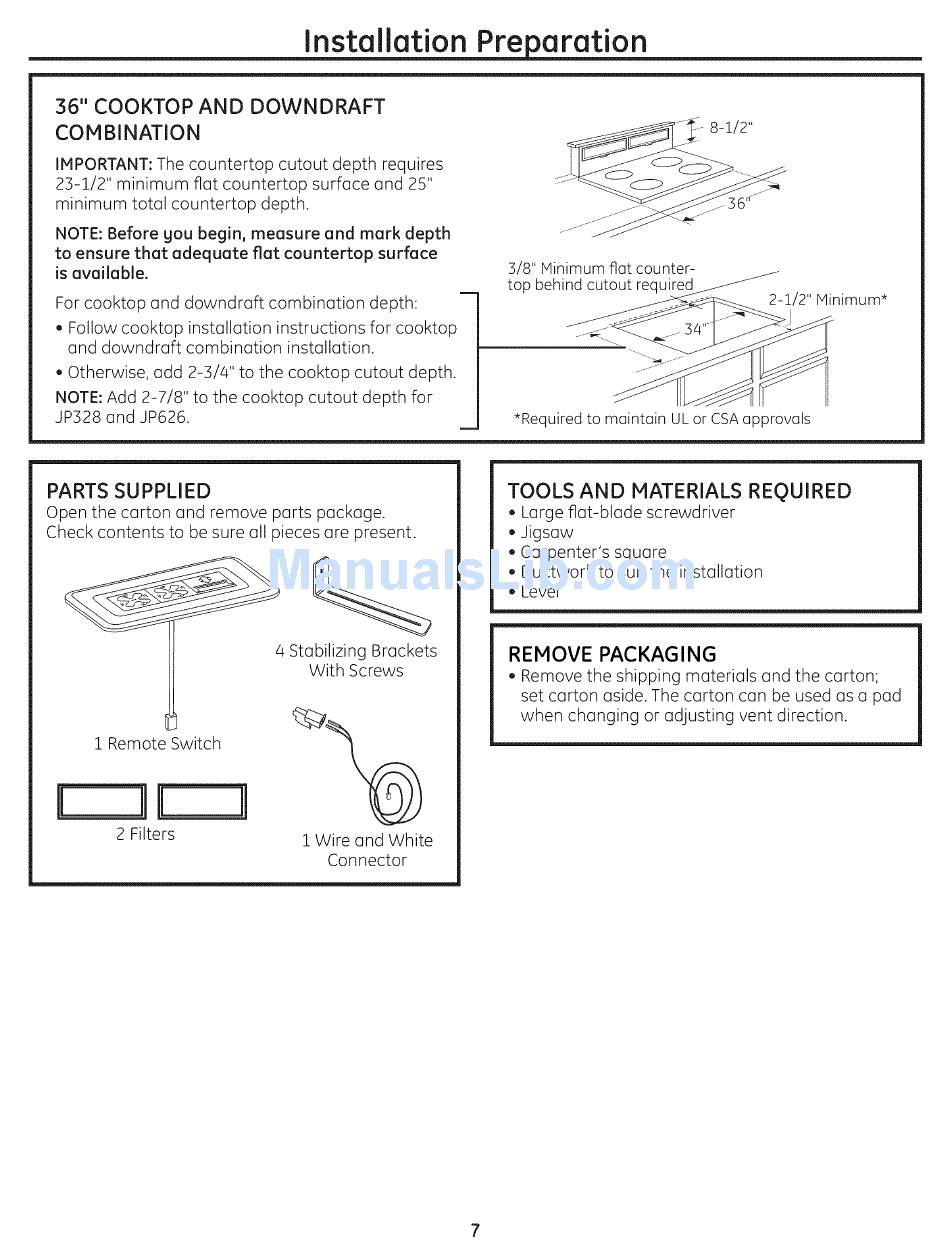

Installation Preparation
36" COOKTOP AND DOWNDRAFT
COMBINATION
IMPORTANT: The countertop cutout depth requires
23-i/2" minimum flat countertop surface and 25"
minimum total countertop depth.
NOTE: Before you begin, measure and mark depth
to ensure that adequate fiat countertop surface
isavailable.
For cooktop and downdraft combination depth:
, Follow cooktop installation instructions for cooktop
and downdraft combination installation.
• Otherwise, add 2-3/4" to the cooktop cutout depth.
NOTE: Add 2-7/8" to the cooktop cutout depth for
JP328 and JP626.
8-!/2"
3/8" Minimum flat counter-
top behind cutout requirec
*Required to maintain UL or CSA approvals
Minimum*
PARTS SUPPLIED
Open the carton and remove parts package.
Check contents to be sure all pieces are present.
1 Remote Switch
D
2 Filters
4 Stabilizing Brackets
With Screws
i
1 Wire and White
Connector
TOOLS AND MATERIALS REQUIRED
Large flat-blade screwdriver
• Jigsaw
, Carpenter's square
, Ductwork to suit the installation
, Level
REMOVE PACKAGING
, Remove the shipping materials and the carton;
set carton aside. The carton can be used as a pad
when changing or adjusting vent direction.
