Altronix AL624 Series Installation Manual page 2

FACTORY SET AT 12V
CUT J1 FOR 24V
CUT J2 FOR 6V
J1
J2
AC
AC AC
Red (DC) Green (AC)
ON ON
ON OFF
OFF ON
OFF OFF
Terminal Legend Function/Description
AC/AC Low voltage AC input.
12VDC @ 1.2A continuous supply current.
– DC +
24VDC @ 750mA continuous supply current.
+ BAT – Stand-by battery connections. Maximum charge rate 300mA.
Altronix is not responsible for any typographical errors.
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty
IIAL624 Kits - Rev. 090203
+ DC – BAT +
LED Diagnostics:
Power Supply Status
Normal operating conditions
Loss of AC. Stand-by battery supplying power.
No DC output. Short circuit or thermal overload condition.
No DC output. Loss of AC. Discharged or no battery present.

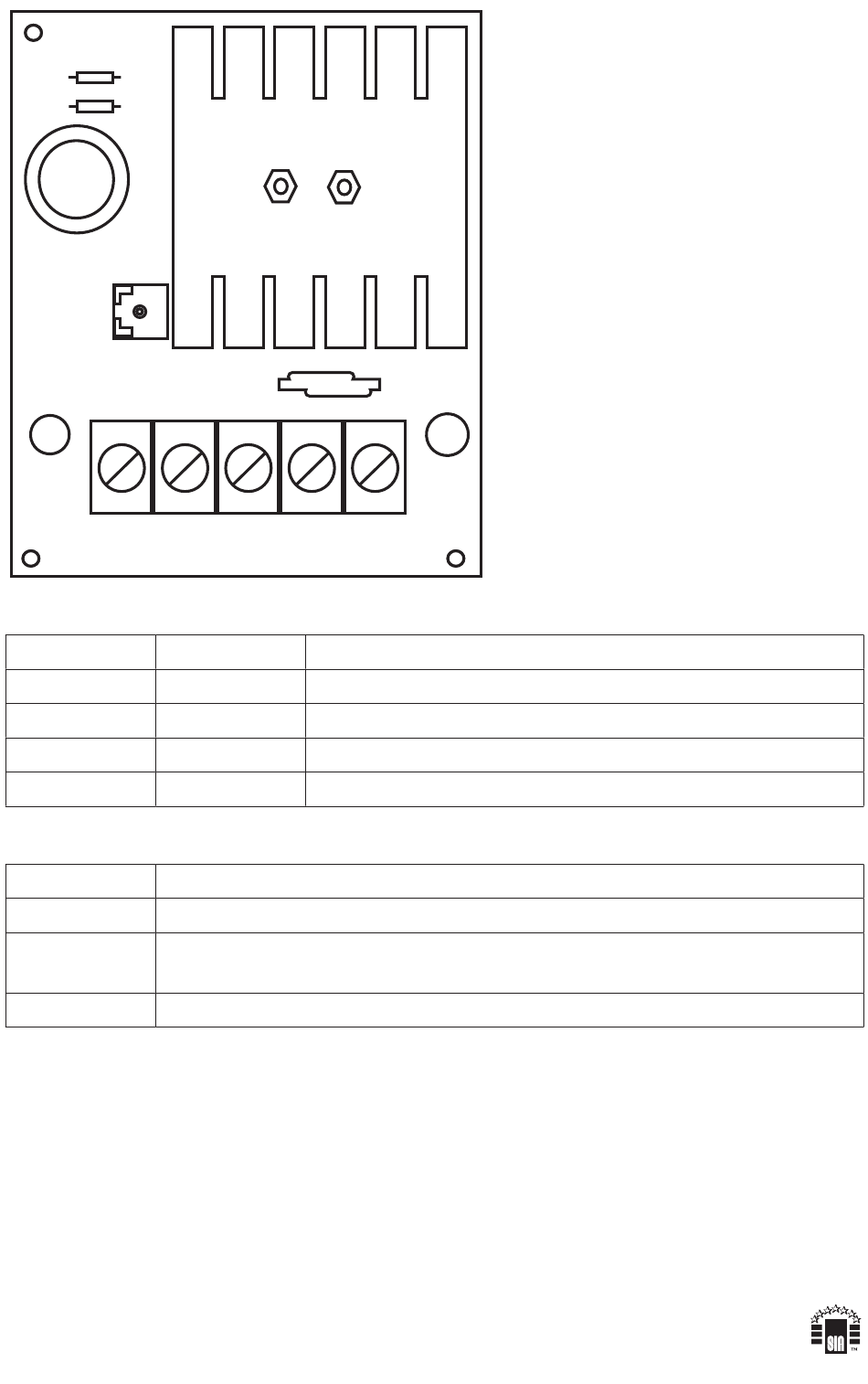

Terminal Identification:
DC
F21U
