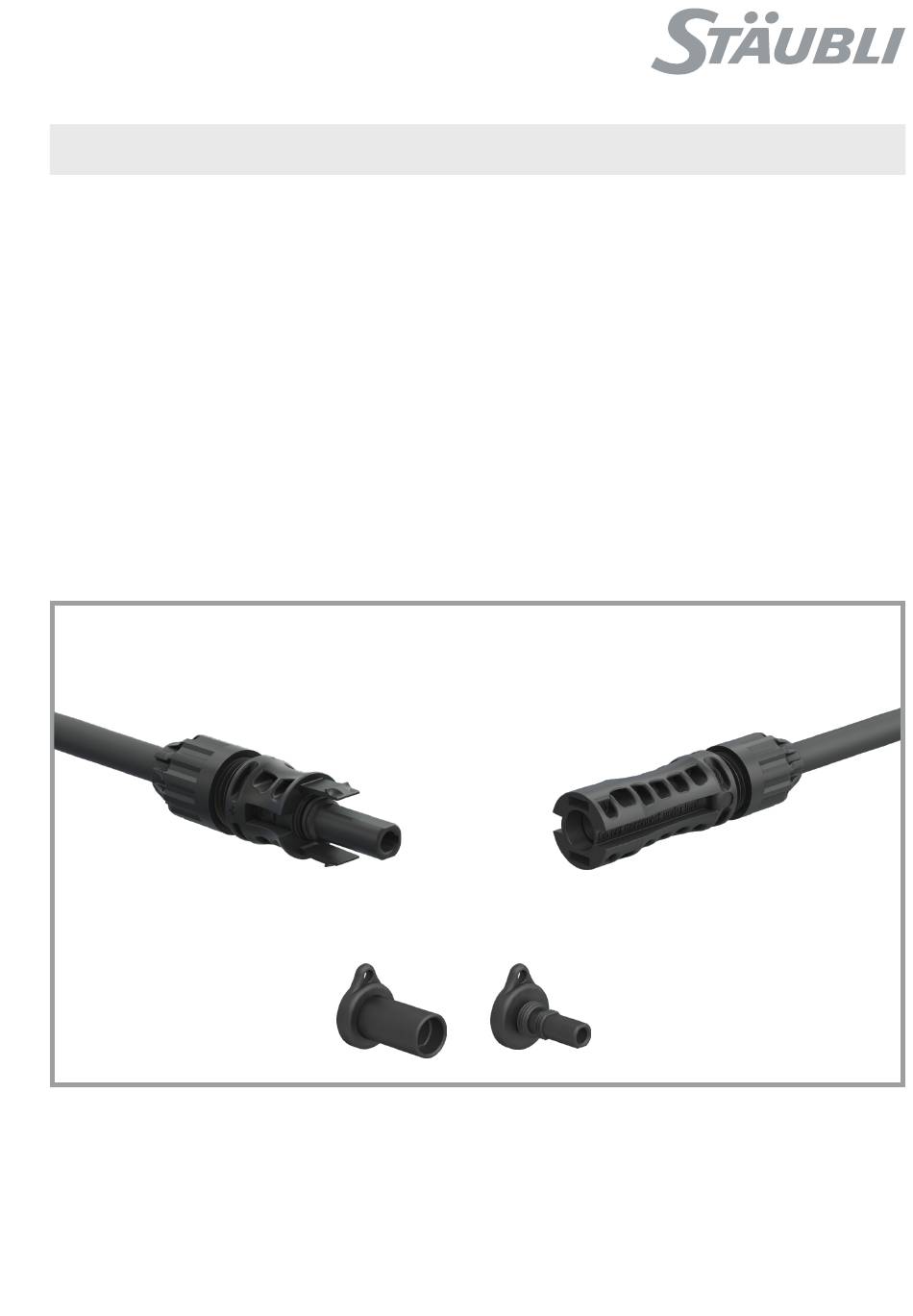

MA000 (de_en)
MA273 (cn_en)
安装说明
Montageanleitung
光伏母连接器 PV-KBT4-EVO 2-UR
光伏公连接器 PV-KST4-EVO 2-UR
MC4-Evo 2
目录
简介 ��������������������������������������������������������������������������������������������1
安全须知 �������������������������������������������������������������������������������������2
所需工具 �������������������������������������������������������������������������������������3
连接器选型指南 ��������������������������������������������������������������������������5
电缆准备 �������������������������������������������������������������������������������������6
压接 ��������������������������������������������������������������������������������������������7
安装检查 �������������������������������������������������������������������������������������8
插入和拔出 ����������������������������������������������������������������������������������9
安装注意事项 ����������������������������������������������������������������������������10
技术参数 �����������������������������������������������������������������������������������11
备注 ����������������������������������������������������������������������������������11 - 12
光伏母连接器
Female coupler
PV-KBT4-EVO 2/...
简介
MC4-Evo 2 连接器符合IEC 60529标准, 可确保达到 IP65 和 IP68
的高防护等级。 符合 NEC 2020 的连接器锁紧系统可确保最佳的连
接安全性。 若要解锁, 必须使用工具 PV-MS-PLS/2。
MA000 (de_en)
MA273 (cn_en)
Assembly instructions
Assembly instructions
PV female coupler PV-KBT4-EVO 2-UR
PV male coupler PV-KST4-EVO 2-UR
MC4-Evo 2
Content
Introduction ���������������������������������������������������������������������������������1
Safety Instructions �����������������������������������������������������������������������2
Tools required ������������������������������������������������������������������������������3
Guideline for configuring the connectors ��������������������������������������5
Cable preparation ������������������������������������������������������������������������6
Crimping ��������������������������������������������������������������������������������������7
Assembly check ��������������������������������������������������������������������������8
Mating and unmating �������������������������������������������������������������������9
Notes on installation ������������������������������������������������������������������10
Technical Data ���������������������������������������������������������������������������11
Notes ��������������������������������������������������������������������������������11 - 12
保护帽/Sealing caps
PV-BVK4
PV-SVK4
32.0716
32.0717
Introduction
MC4-Evo 2 connectors guarantee high ingress protection of IP65
and IP68 according to IEC 60529� The locking system of the
connectors in accordance with NEC 2020 guarantees optimum
prevention against unintended disconnection� Unlocking can be
realized only using the tool PV-MS-PLS/2�

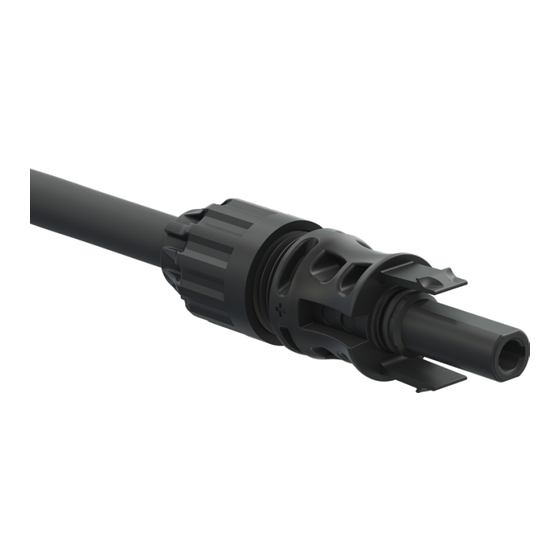

光伏公连接器
Male coupler
PV-KST4-EVO 2/...
1 / 12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC4-Evo 2 PV-KBT4-EVO 2-UR and is the answer not in the manual?

Questions and answers

Summary of Contents for Staubli MC4-Evo 2 PV-KBT4-EVO 2-UR

  • Page 1: Table Of Contents

    MA000 (de_en) MA273 (cn_en) MA000 (de_en) MA273 (cn_en) 安装说明 Montageanleitung Assembly instructions Assembly instructions 光伏母连接器 PV-KBT4-EVO 2-UR PV female coupler PV-KBT4-EVO 2-UR 光伏公连接器 PV-KST4-EVO 2-UR PV male coupler PV-KST4-EVO 2-UR MC4-Evo 2 MC4-Evo 2 目录 Content 简介 ��������������������������������������������������������������������������������������������1 Introduction ���������������������������������������������������������������������������������1 安全须知...
  • Page 2: 安全须知

    PV system, e�g�, as a LVDC component� If the component is 要了解更多信息, 请联系史陶比尔。 used for other purposes, then the requirements and specifi ca- • tions may be diff erent from the ones described in this document� www�staubli�com/electrical For more information, contact Stäubli • www�staubli�com/electrical 对人员的要求...
  • Page 3: 所需工具

    Order No. 1,5/2,5/4/6 mm² PV-AZM-156 32.6027-156 (14/12/10 AWG) 4/6/10 mm² PV-AZM-410 32.6027-410 (12/10/8 AWG) 注意: Note: 操作说明MA267, Operating instructions MA267, www.staubli.com/electrical www�staubli�com/electrical (ill. 2) (图 2) 压接钳PV-CZM...包括定位块和压接模具 Crimping pliers PV-CZM��� incl� locator and crimping die� 压接钳 压线范围 定位块 Crimping range Crimping pliers Locator 2.5/4/6 mm²...
  • Page 4: 连接器选型指南

    连接器选型指南 Guideline for configuring the connectors 1. MC4-Evo 2 在德国TÜV莱茵认证下的产品配置 1. MC4-Evo 2 product configuration along with TÜV Rheinland certifcation 与连接器连接的电缆应适用于光伏系统, 并符合 IEC 62930 标准 的要求。 Cables connected to the connector shall be suitable for use in 在表 1 中选择合适的配置。 通过使用 TÜV Rheinland、 TÜV photovoltaic systems and shall comply with the requirements of Rheinland/UL (...
  • Page 5: 电缆准备

    Attention 建议使用镀锡导线。 切勿使用无保护 (外露*) 或已生锈的导 Used tinned copper conductors� Do not use uncoated 线。 所有史陶比尔光伏电缆均具有高品质的镀锡导线。 出于 (bare*) nor already oxidized conductors� All Staubli solar 安全考虑, 史陶比尔禁止使用 PVC 电缆或 H07RN-F 型号的未 cables have high-quality, tinned conductors� For safety rea- 镀锡电缆。 sons, Stäubli prohibits the use of PVC cables and the use of non-tinned cables of type H07RN-F�...
  • Page 6: Crimping

    压接 Crimping (ill. 9) (图 9) 打开并握住夹钳 (K)。 Open clamp (K) and hold tight� • • 将插针置于适当的截面积范围内。 Insert the contact in the appropriate • • 向上旋转压接片。 cross-section range� • 松开夹钳 (K)。 Turn the crimping flaps (C) upwards� • • 压接完成。 Release clamp (K)�...
  • Page 7: 安装检查

    安装检查 Assembly check (ill. 13) (图 13) 将压接的插针插进公/母绝缘外壳, 直至 Insert the crimped contact into the 啮合。 轻轻拉动导线, 检查金属部分是否 insulator of the male or female coupler 正确连接。 until engaged� You will typically hear a “click” noise once fully engaged� Pull gently the cable to verify that the metal part is correctly engaged�...
  • Page 8: 插入和拔出

    插入和拔出 Mating and unmating (ill. 16) (图 16) 插入: Mating: 将电缆耦合器互插直到听到 “咔嗒” 声为 Mate the cable coupler until a „click“ 止。 轻轻拉动连接器以便确认是否正确 can be heard� Check correct engage- 啮合。 (最大拉力: 20 N) 。 ment by lightly pulling on the connector (maximum pulling force: 20 N)�...
  • Page 9: 安装注意事项

    安装注意事项 Notes on installation 说明 Note 如果要将本连接器用于光伏阵列以外的低压直流应用, 请查阅 If the connector is to be used in low-voltage DC applications 《史陶比尔技术说明报告》 中的信息。 other than those in a photovoltaic array, please consult the infor- Link mation as provided in the Stäubli Technical Description Report� Link 关于安装的一般注意事项...
  • Page 10: 技术参数

    技术参数 Technical Data 型号名称 MC4-Evo 2 Type designation 连接系统 Ø 4 mm Connector system DC 1500 V (IEC 62852:2014+Amd.1:2020) 额定电压 DC 1500 V (UL 6703) Rated voltage DC 1500 (JET) 39 A (2,5 mm²) 45 A (4,0 mm²) 额定电流 (IEC) Rated current (IEC) 53 A (6,0 mm²) 69 A (10,0 mm²)
  • Page 11 备注/Notes: MA273 11 / 12...
  • Page 12 生产商/Manufacturer: Stäubli Electrical Connectors AG Stockbrunnenrain 8 4123 Allschwil/Switzerland Tel. +41 61 306 55 55 +41 61 306 55 56 mail ec.ch@staubli.com www.staubli.com/electrical 12 / 12 MA273...
