MA129 (de_en)
Montageanleitung
Axiale Ø 4mm-Buchsen SLS410-BK
Inhalt
Sicherheitshinweise....................................................................2
Notwendiges Werkzeug ............................................................3
Vorbereitung der Leitung ...........................................................3
Montage ....................................................................................4
LS410-BK-I
22.1037
HK0.127
22.0060
MA129 (de_en)
Assembly instructions
In-line Ø 4mm sockets SLS410-BK
Content
Safety Instructions ......................................................................2
Tools required ............................................................................3
Preparation of the cable ............................................................3
Assembly ...................................................................................4
KT410-BK
22.2250
KT1-A
22.2040
KT1-S
22.2070
LS1-A
22.1019
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Staubli Multi-Contact SLS410-BK
Summary of Contents for Staubli Multi-Contact SLS410-BK

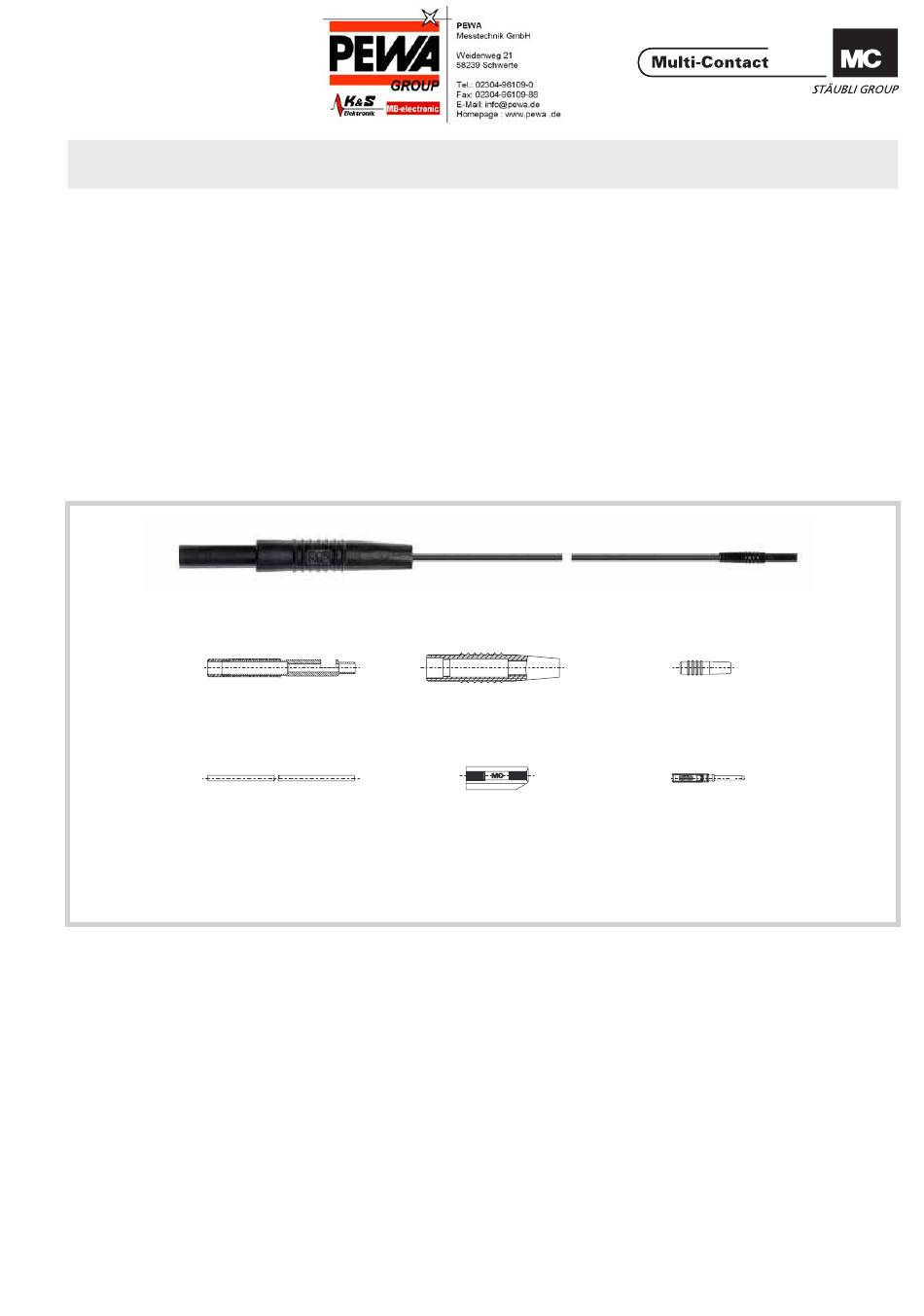

- Page 1 MA129 (de_en) MA129 (de_en) Montageanleitung Assembly instructions Axiale Ø 4mm-Buchsen SLS410-BK In-line Ø 4mm sockets SLS410-BK Inhalt Content Safety Instructions ..............2 Sicherheitshinweise..............2 Notwendiges Werkzeug ............3 Tools required ................3 Vorbereitung der Leitung ............3 Preparation of the cable ............3 Montage ..................4 Assembly ...................4 LS410-BK-I KT410-BK KT1-S...
- Page 2 Sicherheitshinweise Safety instructions Die Montage und Installation der Produkte darf ausschliess- The products may be assembled and installed exclusively by lich durch qualifi ziertes und erfahrenes Fachpersonal unter suitably qualifi ed and trained specialists duly observing all ap- Berücksichtigung aller anwendbaren gesetzlichen Sicher- plicable safety regulations.
- Page 3 Notwendiges Werkzeug Tools required (ill. 1) (ill. 1) Abisolierzange „Stripax“ Cable stripper “Stripax” Bestellnr. 25.0015 Order No. 25.0015 (ill. 2) (ill. 2) - Lötkolben 60W - Soldering iron 60W - Lötdraht - Solder z.B. bleifreies Lot Ø 1,5 e.g. lead free solder Ø 1,5 #58/405 (SN95.8Ag3.5Cu.7) #58/405 (SN95.8Ag3.5Cu.7) ANSI/J-STD-004...
- Page 4 Advanced Contact Technology Montage Assembly (ill. 6) (ill. 6) Die abisolierte Seite der Leitung 4 in Insert the stripped cable 4 into the die Bohrung des Steckers 6 einführen hole of plug 6 and bend accordingly. und in gezeigter Richtung zweimal umbiegen.
- Page 5 (ill. 11) (ill. 11) Leitung in Buchse 1 löten. Max. Solder cable in socket 1. Löttemperatur: +350°C. Max. solder temperature: +350°C. Buchse und Lötstelle müssen frei von Socket and solder area should be free austretendem Lötzinn sein. from excess solder. Hinweis: Note: Ein fi...
