Advanced Contact Technology
MA120 (de_en)
Montageanleitung
Thermo-Messleitung
LK410-TS, LK425-A/TS
Inhalt
Sicherheitshinweise....................................................................2
Notwendiges Werkzeug ............................................................3
Vorbereitung der Leitung ...........................................................3
Zusammenbau ...........................................................................3
LS410-TS
KT-TS1
KT-TS2,5
22.1013
22.7100
22.7110
MA120 (de_en)
Assembly instructions
Thermal test lead
LK410-TS, LK425-A/TS
Content
Safety Instructions ......................................................................2
Tools Required ............................................................................3
Preparation Of The Cable ............................................................3
Assembly ...................................................................................3
PLAST-E1,0
PLAST-E2,5
KT410
KT425-A
60.7190
60.7200
22.2140
22.2160
1 / 4
Advertisement
Table of Contents
Related Manuals for Staubli Multi-Contact LK410-TS
Summary of Contents for Staubli Multi-Contact LK410-TS

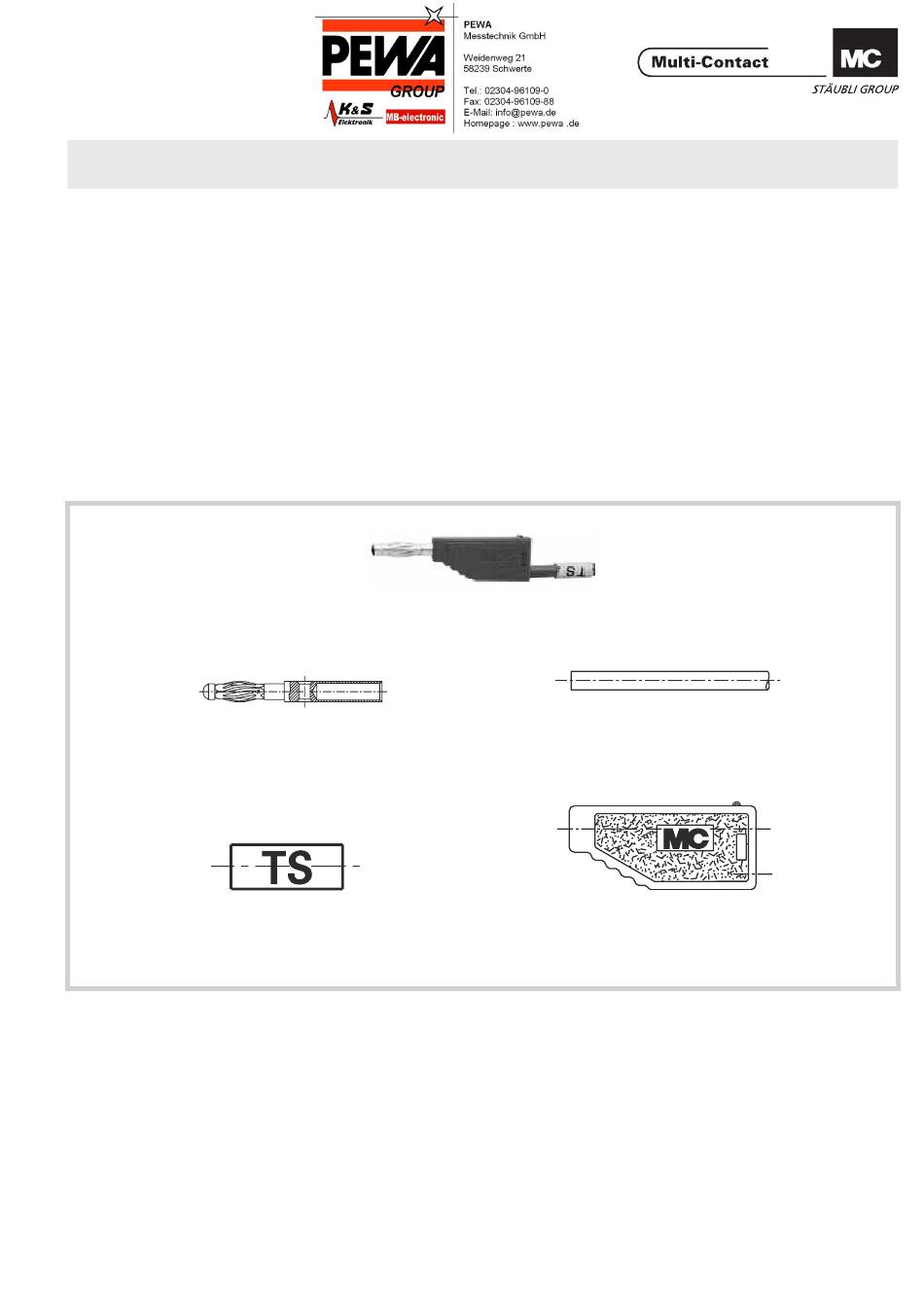

- Page 1 Advanced Contact Technology MA120 (de_en) MA120 (de_en) Montageanleitung Assembly instructions Thermo-Messleitung Thermal test lead LK410-TS, LK425-A/TS LK410-TS, LK425-A/TS Inhalt Content Sicherheitshinweise..............2 Safety Instructions ..............2 Notwendiges Werkzeug ............3 Tools required ................3 Vorbereitung der Leitung ............3 Preparation of the cable ............3 Zusammenbau ................3 Assembly ...................3 PLAST-E1,0 60.7190...
- Page 2 Advanced Contact Technology Sicherheitshinweise Safety instructions Die Montage und Installation der Produkte darf ausschliess- The products may be assembled and installed exclusively by lich durch qualifi ziertes und erfahrenes Fachpersonal unter suitably qualifi ed and trained specialists duly observing all ap- Berücksichtigung aller anwendbaren gesetzlichen Sicher- plicable safety regulations.
- Page 3 Advanced Contact Technology Notwendiges Werkzeug Tools required (ill. 1) (ill. 1) Abisolierzange „Stripax“ Cable stripper “Stripax” Bestell-Nr. 25.0015 Order No. 25.0015 (ill. 2) (ill. 2) - Lötkolben 60W - Soldering iron 60W - Lötdraht - Solder z.B. bleifreies Lot Ø 1,5 e.g.
