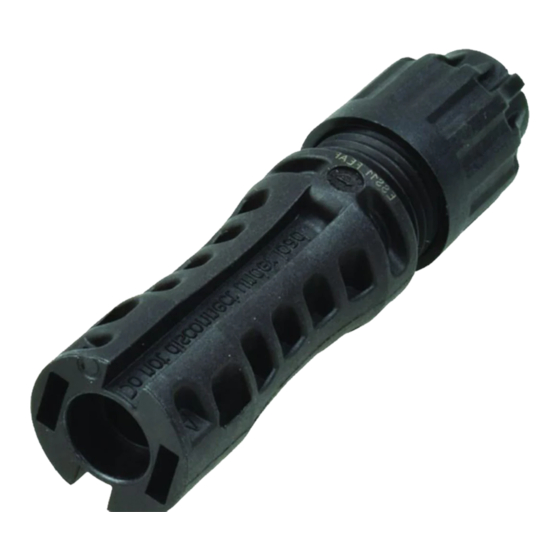

Female coupler
PV-KBT4-EVO 2A/...
MA298 (cn_en)
MA000 (de_en)
Assembly instructions
Assembly instructions
PV female coupler PV-KBT4-EVO 2A/...
PV male coupler PV-KST4-EVO 2A/...
MC4-Evo 2
Content
Introduction ���������������������������������������������������������������������������������1
Safety Instructions �����������������������������������������������������������������������2
Tools required ������������������������������������������������������������������������������3
Cable preparation ������������������������������������������������������������������������4
Guideline for configuring the connectors ��������������������������������������4
Crimping ��������������������������������������������������������������������������������������6
Assembly check ��������������������������������������������������������������������������7
Mating and disconnecting ������������������������������������������������������������8
Notes on installation ��������������������������������������������������������������������9
Technical Data ���������������������������������������������������������������������������10
保护帽/Sealing caps
PV-BVK4
PV-SVK4
32.0716
32.0717
光伏公连接器
Male coupler
PV-KST4-EVO 2A/...
1 / 12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PV-KBT4-EVO 2A Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Staubli PV-KBT4-EVO 2A Series

  • Page 1: Table Of Contents

    MA000 (de_en) MA298 (cn_en) MA000 (de_en) MA298 (cn_en) 安装说明 Montageanleitung Assembly instructions Assembly instructions 光伏母连接器 PV-KBT4-EVO 2A/… PV female coupler PV-KBT4-EVO 2A/… 光伏公连接器 PV-KST4-EVO 2A/… PV male coupler PV-KST4-EVO 2A/… MC4-Evo 2 MC4-Evo 2 目录 Content 简介 ��������������������������������������������������������������������������������������������1 Introduction ���������������������������������������������������������������������������������1 安全须知...
  • Page 2: 安全须知

    LVDC component� If the com- 要了解更多信息, 请联系史陶比尔。 ponent is used for other purposes, then the requirements and • specifi cations may be diff erent from the ones described in this www�staubli�com/electrical document� For more information, contact Stäubli • www�staubli�com/electrical 对人员的要求...
  • Page 3: 所需工具

    Order No. 1.5/2.5/4/6 mm² PV-AZM-156 32.6027-156 (14/12/10 AWG) 4/6/10 mm² PV-AZM-410 32.6027-410 (12/10/8 AWG) 注意: Note: 操作说明MA267, Operating instructions MA267, www�staubli�com/re-downloads�html www�staubli�com/re-downloads�html (ill. 2) (图 2) 压接钳PV-CZM...包括定位块和压接模具 Crimping pliers PV-CZM��� incl� locator and crimping die� 压接范围 型号 订货号 Crimping range Type Order No. 1.5/2.5/4 mm²...
  • Page 4: 电缆准备

    剪线钳PV-WZ-KS, Cable cutter PV-WZ-KS, 订货号: 32.6080 Order No� 32�6080 注意: Note: 操作说明 MA705, Operating instructions MA705, www�staubli�com/re-downloads�html www�staubli�com/re-downloads�html 电缆准备 Cable preparation 可以连接等级5和6的单芯多股结构电缆。 Cables with a strand class 5 and 6 shall be connected� 只使用镀锡铜电缆。 Use tinned copper cables only� 注意:...
  • Page 5 1. MC4-Evo 2 产品选型与 TÜV Rheinland 1. MC4-Evo 2 product configuration along with TÜV Rheinland certifcation 连接到连接器的电缆应适用于光伏系统且应符合 IEC 62930 的要 求。 Cables connected to the connector shall be suitable for use in 使用经过 TÜV Rheinland、 TÜV Rheinland/UL ( 双认证) 认证的电 photovoltaic systems and shall comply with the requirements of 缆时1),...
  • Page 6: Crimping

    (ill. 8) (图 8) 剥除电缆外层, 剥除的长度为 6.0 至 Strip cable insulation down by 6�0 mm 7.5 mm。 to 7�5 mm� 注意 Attention 在剥线时不要切断单股铜丝! Do not cut individual strands when stripping! 压接 Crimping (ill. 9) (图 9) 打开并握住夹钳 (K)。 Open clamp (K) and hold tight� •...
  • Page 7: 安装检查

    安装检查 Assembly check (ill. 13) (图 13) 将压接的插针插进公/母绝缘外壳, 直至 Insert the crimped contact into the 啮合。 轻轻拉动导线, 检查金属部分是否 insulator of the male or female coupler 正确连接。 until engaged� You will typically hear a “click” noise once fully inserted� Pull gently on the cable to check that the metal part is correctly engaged�...
  • Page 8: 插入和拔出

    插入和拔出 Mating and disconnecting (ill. 16) (图 16) 插入: Mating: 将电缆耦合器互插直到听到 “咔嗒” 声为 Mate the cable coupler until a „Click“ 止。 轻轻拉动连接器以便确认是否正确 can be heard� Check correct engage- 啮合。 (最大拉力: 20 N) 。 ment by lightly pulling on the connector (maximum pulling force: 20 N)�...
  • Page 9: 安装注意事项

    安装注意事项 Notes on installation 关于安装的一般注意事项 General notes on installation 必须为未插合的连接器安装保护帽 (插座端PV-BVK4订货号 Unmated connectors must be protected from environmental • • 32.0716; 插头端PV-SVK4订货号32.0717) 以防止环境影响 (湿 impact (moisture, dirt, dust, etc�) with sealing caps (socket 气、 灰尘等) 。 PV-BVK4, order No� 32�0716; plug PV-SVK4, order No� 切勿插合被污染的连接器。...
  • Page 10: 技术参数

    技术参数 Technical Data 型号名称 PV-KST4-EVO 2A/xy ; PV-KBT4-EVO 2A/xy Type designation 连接系统 Connector system Ø 4 mm 额定电压: DC 1500 V (IEC 62852:2014+Amd.1:2020) Rated voltage DC 1500 V (UL) 39 A (2.5 mm²) 额定电流 (IEC) 45 A (4.0 mm²) Rated current (IEC) 53 A (6.0 mm²) 69 A (10.0 mm²) 30 A (14 AWG)
  • Page 11 注意事项/Notes: MA298 11 / 12...
  • Page 12 注意事项/Notes: 生产商/Manufacturer: Stäubli Electrical Connectors AG Stockbrunnenrain 8 4123 Allschwil/Switzerland Tel� +41 61 306 55 55 +41 61 306 55 56 mail ec�ch@staubli�com www�staubli�com/electrical 12 / 12 MA298...
