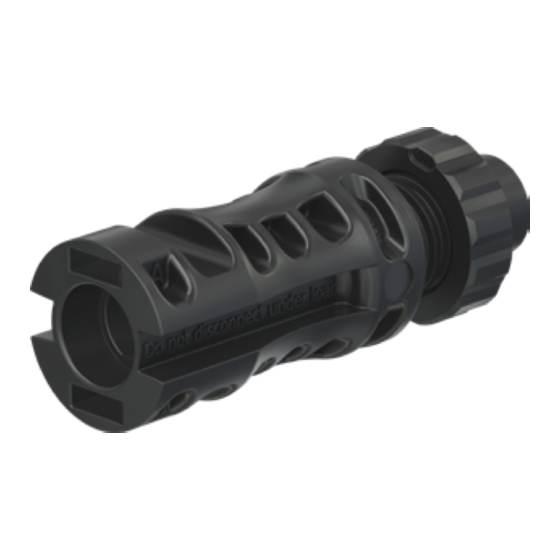

Staubli PV-ADB4-EVO 2A Series Assembly Instructions Manual

Staubli PV-ADB4-EVO 2A Series Assembly Instructions Manual

Female panel receptacle/ male panel receptacle
Hide thumbs Also See for PV-ADB4-EVO 2A Series:

Advertisement

Quick Links

MA299 (cn_en)
MA000 (de_en)
安装说明
Montageanleitung
光伏母面板插座 PV-ADB4-EVO 2A/...
光伏公面板插座 PV-ADS4-EVO 2A/...
目录
所需工具3
电缆准备4
压接5
插座安装7
安装检查 �������������������������������������������������������������������������������������8
插入和拔出9
安装注意事项 ����������������������������������������������������������������������������10
技术参数11
母面板插座
Female panel receptacle
PV-ADB4-EVO 2A/...
MA299 (cn_en)
MA000 (de_en)
Assembly instructions
Assembly instructions
PV Female panel receptacle PV-ADB4-EVO 2A/...
PV Male panel receptacle PV-ADS4-EVO 2A/...
MC4-Evo 2
Content
Safety Instructions �����������������������������������������������������������������������2
Tools required ������������������������������������������������������������������������������3
Cable preparation ������������������������������������������������������������������������4
Crimping ��������������������������������������������������������������������������������������5
Installation of receptacles �������������������������������������������������������������7
Assembly check ��������������������������������������������������������������������������8
Mating and disconnecting ������������������������������������������������������������9
Notes on installation ������������������������������������������������������������������10
Technical data ���������������������������������������������������������������������������11
保护帽/Sealing caps
PV-BVK4
PV-SVK4
32.0716
32.0717
公面板插座
Male panel receptacle
PV-ADS4-EVO 2A/...
1 / 12
