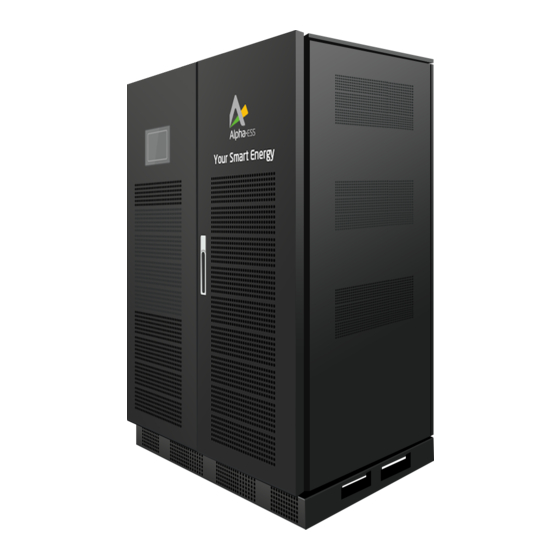

Energy storage system(ess) indoor with m48112-s
Hide thumbs
Also See for STORION-T30:
- Installation, operation & maintenance manual (59 pages) ,
- Installation manual (17 pages)
Table of Contents
Advertisement
Quick Links
@AlphaEnergyStorageSystem
@AlphaESS
Alpha ESS Co., Ltd.
+86 513 806 068 91
info@alpha-ess.com
www.alpha-ess.com
JiuHua Road 888, High-Tech Industrial Development
Zone 226300 Nantong City, Jiangsu Province
Alpha ESS Europe GmbH
+
49 610 3459 1601
europe@alpha-ess.de
www.alpha-ess.de
Paul-Ehrlich-Straße 1a 63225 Langen
Alpha ESS Australia Pty. Ltd.
+61 1300 968 933
australia@alpha-ess.com
www.alpha-ess.com.au
Unit 1, 2 Ralph Street Alexandria NSW 2015
Alpha ESS UK Co., Ltd
uk@alpha-ess.com
Drake House, Long Street, Dursley, gl11 4hh
@AlphaESS
@alpha_ess
Alpha ESS Suzhou Co., Ltd.
+86 512 6828 7609
info@alpha-ess.com
www.alpha-ess.com
Building 10-A, Canal Town Industrial Park,
99 Taihu E Rd, Wuzhong District, Suzhou 215000
Alpha ESS Italy S.r.l.
+39 599 239 50
info@alpha-ess.it
www.alpha-ess.it
Via Loda,17-41013 Castelfranco Emilia(MO)
Alpha ESS Korea Co., Ltd
+82 64 721 2004
korea@alpha-ess.com
2F, 19-4, Nohyeong 11-gil, Jeju-si, Jeju-do,
Republic of Korea
OPERATION & MAINTENANCE MANUAL OF
INSTALLATIONMANUAL
ENERGY STORAGE SYSTEM(ESS)
ENERGYSTORAGESYSTEM(ESS)
STORION-T30 (INDOOR,WITH M48112-S)
STORION-SMILE-T10(INDOOR)
V01
Advertisement
Table of Contents
Related Manuals for Alpha ESS STORION-T30
Summary of Contents for Alpha ESS STORION-T30
- Page 1 ENERGYSTORAGESYSTEM(ESS) @AlphaEnergyStorageSystem @AlphaESS @AlphaESS @alpha_ess STORION-T30 (INDOOR,WITH M48112-S) STORION-SMILE-T10(INDOOR) Alpha ESS Co., Ltd. Alpha ESS Suzhou Co., Ltd. +86 513 806 068 91 +86 512 6828 7609 info@alpha-ess.com info@alpha-ess.com www.alpha-ess.com www.alpha-ess.com Building 10-A, Canal Town Industrial Park, JiuHua Road 888, High-Tech Industrial Development...
-
Page 2: Table Of Contents
CONTENT Copyright Statement INTRODUCTION This manual is under the copyright of Alpha ESS Co., Ltd, with all rights reserved. Please keep the manual properly and operate in strict accordance 1.1 Brief Introduction with all safety and operating instructions in this manual. Please do not 1.2 Explanation of Terms... -
Page 3: Introduction
INTRODUCTION Introduction 1.1 Brief Introduction ANDROID LCD INTRODUCTION AND SET UP This manual applies for Storion-T30 Li-ion battery energy storage system, mainly 6.1 Running includes: 6.2 History (1) Safety introduction 6.3 Basic info Introduces the product use, operating notes and qualification of operators of T30 6.4 Set up... -
Page 4: Safety Instructions
INTRODUCTION SAFETY INSTRUCTIONS (3) Battery management system Safety Instructions Electronic equipment collection for monitoring the operating information of cells, packs and system units (such as voltage, current, temperature, protective 2.1 Manual Keeping parameter of batteries), evaluating the state of charge (SOC), the state of health This manual contains important information about operating the system. -
Page 5: Setting Of Warning Sign For Safety
SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS 2.10 Minimum Personal Protective Equipment 2.4 Setting of Warning Sign for Safety For the safety of operators, personal protective equipment are required. During While instructing, maintaining and repairing, in case of incorrect operation or the operation, following protective equipment are required: accident caused by unrelated personnel nearby, the suggestions below should be followed: Obvious signs should be set at front switch and rear-level switch in case of... -
Page 6: Ems Instruction
EMS INSTRUCTION EMS INSTRUCTION EMS Instruction NOTE: Through the up and down key, select the sub-menu, press the ENT key to enter the select sub-menu, press Return key to return to the previous layer. 3.1 Function Description 3.2.1. Main menu Status System status data History... -
Page 7: History
EMS INSTRUCTION EMS INSTRUCTION AndroidLCD Enable Enable No used Pvcb PV combiner box / PV inverter communication status Setting value>0 means buying electricity from the grid, setting Air_Con Air conditioner communication status Offset value<0 means selling electricity Dispatch Dispatch communication status to the grid Status Communication Start Time... - Page 8 EMS INSTRUCTION EMS INSTRUCTION Charge Set the charging end time of Set the SOC for ending GCSOCEnd End Time 1 the first stage charging by DG in SOC mode Charge Set the charging start time of Set the time to start charging by GCTimeStart Start Time 2 the second stage...
-
Page 9: Information
EMS INSTRUCTION EMS INSTRUCTION PCS AC wiring mode, three-phase four-wire GridType Factory Factory Reset system Reset Setting Local Set the control mode to local Reset CtrlMode No used Meter Remote Set the control mode to remote Protocol Scheduling protocol selection, Alpha/Nio 3.2.5. -
Page 10: Operation
OPERATION OPERATION After the power is on, the LED on the batteries and HV900112 starts flashing. Operation After waiting for about 2 minutes, check the status of each HV900112 on the EMS display. You can check it according to the following table. If the value displayed on the EMS and the use in the table below, the battery output is normal. -
Page 11: Ems Operation
EMS OPERATION EMS OPERATION If now the load power is >20kW, such as 30kW, the grid will supply load with EMS Operation 20kW, the rest 10kW will be supplied by T30. If the load power is > (setup Pmeter_offset + 30kW), the setup is invalid. For 5.1 Self-Consumption example, the load power is 55kW, then the grid will supply load with 25kW and T30 will supply 30kW. -
Page 12: Time Period Charge And Discharge Mode
EMS OPERATION ANDROID LCD INTRODUCTION AND SET UP 5.4 Time Period Charge and Discharge Mode Android LCD Introduction and Set up Turn on the function of force charge ： EMS->Setting-> Function->System 6.1 Running Mode-> Force Charge->Enable; Set up the first charge start time: EMS->Setting-> Function->System Mode-> Charge Start Time 1;... -
Page 13: Android Lcd Introduction And Set Up
ANDROID LCD INTRODUCTION AND SET UP ANDROID LCD INTRODUCTION AND SET UP 6.2 History Figure 6-2 System status interface 3. Click the status can see the message as shown in Figure 6-2. The above list Figure 6-4 History interface (1) shows current errors and warnings; the below list “History”... -
Page 14: Set Up
ANDROID LCD INTRODUCTION AND SET UP ANDROID LCD INTRODUCTION AND SET UP 6.4 Set up 6.4.1. System Select the highlighted icon “System” to access the settings of the function configuration. Figure 6-7 System Interface Figure 6-6 Press “System Figure 6-8 Set-up time interface Press “Time”... -
Page 15: Function
ANDROID LCD INTRODUCTION AND SET UP ANDROID LCD INTRODUCTION AND SET UP Figure 6-9 Set-up language Figure 6-11 Safety interface Click "Safety" to select the safe country; you can select the appropriate country Press “Language” to set the language. according to your country. 1741SA is the American standard. VDE is the German standard. -
Page 16: Dispatch
ANDROID LCD INTRODUCTION AND SET UP ANDROID LCD INTRODUCTION AND SET UP Meter Instruction 7.1 Function Description Figure 6-13 Function interface “Self-consumption” mode, ” Grid Charge” mode and ” Controlled Discharge” mode can be selected. NOTE: The “Self-consumption” mode is suitable the situation that the Gird Figure 7-1 Schematic diagram of the appearance of the meter construction is relatively prefect and there is no frequent power cut. -
Page 17: Introduction
METER INSTRUCTION METER INSTRUCTION 7.2 Introduction 7.2.2. Introduction to programming interface 7.2.1. Introduction to the display interface Under any display item in the menu, press "SET" to enter the "PASS" interface, then press "ENT" to display "0000", prompt for the password and then enter the Examples of display interface: password as 0001,If the password is entered incorrectly, then return to "0000"... -
Page 18: Setup In On-Grid Mode
METER INSTRUCTION ONLINE MONITORING 7.3.1. Setup in on-grid mode Online Monitoring Press "SET" to enter the programming interface; Enter the password 0001 and press "Enter"; 8.1 Register See "BUS1" and press "Enter"; See "Addr" and press "Enter" ; You have to create a new account on our web server for the normal monitoring. Use the up and down buttons to set the meter address.If the system is in the So please use the following steps: AC mode or Hybrid mode, the grid side meter is "001"... -
Page 19: Registering License
ONLINE MONITORING ROUTINE MAINTENANCE 8.2 Registering License Routine maintenance 9.1 Tool and Consumable Requirements List 9.1.1. Tools and equipment requirements Model specification Quantity Name Unit Remarks (precision) 2、4、6、8＂ …… Slotted screwdriver Phillips screwdriver 2、4、6、8＂ …… …… Wrench …… Multimeter Click Install new system to register the ……... -
Page 20: Routine Inspection
ROUTINE MAINTENANCE ROUTINE MAINTENANCE 9.2.1. Routine inspection Check the internal PCS internal temperature of the PCS, Once 6 PCS has no 9.2.1.1 Power on inspection temperature including battery months abnormal conditions temperature and module temperature Operators need to conduct daily inspections of the equipment, and maintain the Each PCS in the equipment by observing the status of the equipment indicator lights and PCS working... - Page 21 ROUTINE MAINTENANCE ROUTINE MAINTENANCE 9.2.1.2 Power off inspection Check whether the Cabinet Once 6 The ground screw is cabinet grounding is well grounding fixed normally months After the equipment has been running for a certain period of time, it is necessary connected to perform power outage maintenance on the equipment.
-
Page 22: Routine Maintenance
ROUTINE MAINTENANCE ROUTINE MAINTENANCE 9.2.2. Routine maintenance Check whether the Once 6 Foundation foundation of the cabinet 9.2.2.1 Power on maintenance No tilt or sink months is inclined or sinking Maintenance items Maintenance requirements Time Check that there is no There is no obvious Once 6 obvious odor inside the... -
Page 23: Notes
ROUTINE MAINTENANCE ROUTINE MAINTENANCE 9.2.2.2 Power off maintenance Security Check the warning labels and replace them if Once 6 months necessary Maintenance items Maintenance requirements Time Perform routine maintenance on the fan to Fan repair ensure that the fan operates normally, and Once 6 months dust cooling fan of the module 1.Battery... -
Page 24: Troubleshooting
Check if the communication cable -10℃., restart the system. connector between PCS If the problem is not resolved, please (Storion-T30-INV: port 9, 10) and TOP contact AlphaESS customer service PCS Lost PCS Lost BMU (EMS) is not plugged in and restart the system. - Page 25 TROUBLESHOOTING SPECIFICATION PARAMETER Fault LCD Fault Fault LCD Fault Fault Name Troubleshooting Fault Name Troubleshooting Category Display Category Display Check if the battery and TOP BMU Check whether the inverter is in the (BMU) communication cable connector remote control mode. If it is not the are not plugged in and restart the PCSModeFault remote control mode, please set it to...
