SBTL500 Series
User Manual
SBTL700 Series
Applicable Models: SBTL700, SBTL720
Date: December 2022
Doc Version: 1.0
English
Thank you for choosing our product. Please read the instructions carefully
before operation. Follow these instructions to ensure that the product is
functioning properly. The images shown in this manual are for illustrative
purposes only.
P a g e
| 1
For further details, please visit our Company's website
www.zkteco.com.
Copyright©2020 ZKTECO CO., LTD. All rights reserved.
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SBTL700 Series and is the answer not in the manual?

Questions and answers

Related Manuals for ZKTeco SBTL700 Series

Summary of Contents for ZKTeco SBTL700 Series

  • Page 1 Follow these instructions to ensure that the product is functioning properly. The images shown in this manual are for illustrative purposes only. For further details, please visit our Company’s website www.zkteco.com. P a g e Copyright©2020 ZKTECO CO., LTD. All rights reserved.
  • Page 2 Copyright © 2022 ZKTECO CO., LTD. All rights reserved. Without the prior written consent of ZKTeco, no portion of this manual can be copied or forwarded in any way or form. All parts of this manual belong to ZKTeco and its subsidiaries (hereinafter the "Company" or "ZKTeco").
  • Page 3 SBTL700 Series User Manual relating to the use of the information contained in or referenced by this manual, even if ZKTeco has been advised of the possibility of such damages. This manual and the information contained therein may include technical, other inaccuracies or typographical errors.
  • Page 4 User Manual About the Company ZKTeco is one of the world’s largest manufacturer of RFID and Biometric (Fingerprint, Facial, Finger-vein) readers. Product offerings include Access Control readers and panels, Near & Far-range Facial Recognition Cameras, Elevator/floor access controllers, Turnstiles, License Plate Recognition (LPR) gate controllers and Consumer products including battery-operated fingerprint and face-reader Door Locks.
  • Page 5 The general information which helps in performing the operations faster. The information which is significant. Care taken to avoid danger or mistakes. The statement or event that warns of something or that serves as a cautionary example. P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 6: Table Of Contents

    ..........................13 INGERPRINT ERIFICATION ............................14 ERIFICATION MENU INTRODUCTION ........................16 ......................16 ARAMETER ETTINGS ESCRIPTION ......................25 RROR ODE AND ROUBLESHOOTING WIRING DIAGRAM ..........................27 WARRANTY COVERAGE ......................... 28 P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 7: Device Operating Instructions

    Do not use the machine when there is lightning, in order to prevent damage to the machine. Make sure that the system protection ground is reliably connected to prevent personal injury. P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 8: Overview

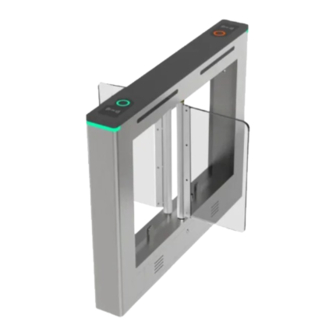

    SBTL700 Series User Manual Overview The SBTL700 series multi-functional brushless anti-collision swing barrier turnstile is an intelligent channel management equipment developed and produced by our company for many years. The equipment organically integrates machinery, electronics, microprocessor control and various reading and writing technologies. Through the configuration of various reading and writing equipment, the use of reliable safety protection devices, real-time alarm system and direction indication interface, the intelligent control and management of the channel are jointly coordinated.

  • Page 9: Features

    Anti-collision function: The swing arm will open to form a certain angle when it is impacted.  When the external force disappears, the swing arm automatically returns to protect the movement. P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 10: Technical Specifications

    SUS201 with black baking paint (1.2mm thickness) Barrier Material Acrylic Emergency Mode Support Security Level Medium MCBF 2 million Opening Time 0.8s Noise of Opening ≤60dB Rated Power 120W P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 11: Appearance And Dimensions

    SBTL700 Series User Manual Appearance and Dimensions SBTL700’s appearance and dimensions are shown below: P a g e | 10 Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 12: Product Components And Work Principle

    Product Components and Work Principle Mechanical System The mechanical system of the SBTL700 series includes the chassis and the core component. The chassis is a carrier where the Direction indicator, Reader, Infrared sensor, and the Door lock are installed. The core component mainly consists of the Motor, Frame, Bearing, and swing Arm.

  • Page 13: System Composition

    Normal Open Mode: In this working mode, the turnstile is always open. Normal Close Mode: In this working mode, the turnstile is always closed. Testing Mode: In this working mode, the turnstile performs auto-test. P a g e | 12 Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 14: Function Introduction

    Recommended fingers: It is recommended to use index, middle, or ring finger for registration and avoid using the thumb or little finger, as they are difficult to accurately press onto the fingerprint reader. Too low Too close to the edge Vertical P a g e | 13 Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 15: Card Verification

    Access Controller. The device enters the card authentication mode when a user presses his/her card to the card reading area. P a g e | 14 Copyright©2022 ZKTECO CO., LTD. All rights reserved.
  • Page 16 SBTL700 Series User Manual P a g e | 15 Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 17: Menu Introduction

    Set the length of time after the gate is opened and no one passes, the gate will automatically close. The opening time of the inbound and outbound can be set between 0 to 99 and the default value is 6. P a g e | 16 Copyright©2022 ZKTECO CO., LTD. All rights reserved.
  • Page 18 The infrared stacking time can be set between 0 to 30 and the default value is 3. Power Failure Opening Direction 0: Left open  1: Right open  P a g e | 17 Copyright©2022 ZKTECO CO., LTD. All rights reserved.
  • Page 19 Voice Test L-13 To automatically test whether the audio files stored in the device are complete and the voice quality is good. Press “ENT” button to exit. P a g e | 18 Copyright©2022 ZKTECO CO., LTD. All rights reserved.
  • Page 20 Can the Gate be Opened in the Channel 0: The channel can be swiped to open the gate  L-19 1: The channel can not be swiped to open the gate  P a g e | 19 Copyright©2022 ZKTECO CO., LTD. All rights reserved.
  • Page 21 The larger the number is set, the louder the volume. The valid value for Alarm Voice of False Direction can be set between 0 to 41 and the default value is 0. P a g e | 20 Copyright©2022 ZKTECO CO., LTD. All rights reserved.
  • Page 22 0: Swing barrier  1: Flap barrier  With or Without Clutch 0: No  1: Yes  P a g e | 21 Copyright©2022 ZKTECO CO., LTD. All rights reserved.
  • Page 23 The larger the value, the faster the motor speed, and the smaller the value, D-13 the slower the motor speed. The valid value for Slave Motor Speed can be set between 1 to 100 and the default value is 65. P a g e | 22 Copyright©2022 ZKTECO CO., LTD. All rights reserved.
  • Page 24 Acceleration Current Time D-20 The larger the value, the faster the motor starts, and the smaller the value, the slower the motor starts. P a g e | 23 Copyright©2022 ZKTECO CO., LTD. All rights reserved.
  • Page 25 If the two gates are not synchronized, by adjusting D-11master motor speed and from the master motor speed D-13, that speed is fast to adjust that small. P a g e | 24 Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 26: Error Code And Troubleshooting

    Door_AOpen 1 //AOpen to Limit #define Door_BOpen 2 //BOpen to Limit #define Door_AOpening 3 //AOpening #define Door_BOpening 4 //BOpening #define Door_AColseing 5 //AClosing #define Door_BColseing 6 //BClosing P a g e | 25 Copyright©2022 ZKTECO CO., LTD. All rights reserved.
  • Page 27 14 // Open the gate B in the plug turn Door_A_Closeing_Stall #define 15//Close the gate A in the plug turn Door_B_Closeing_Stall #define 16//Close the gate B in the plug turn Door_Emer_After_Close #define P a g e | 26 Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 28: Wiring Diagram

    SBTL700 Series User Manual Wiring Diagram Check circuit according to the following wiring diagram: P a g e | 27 Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 29: Warranty Coverage

    Damage caused by incorrect operation in violation of the operating procedures. Damage caused by unauthorized maintenance of the product. Abnormalities and damage caused by the use of very poor conditions and the use of the environment P a g e | 28 Copyright©2022 ZKTECO CO., LTD. All rights reserved.
  • Page 30 ZKTeco Industrial Park, No. 32, Industrial Road, Tangxia Town, Dongguan, China. Phone : +86 769 - 82109991 : +86 755 - 89602394 www.zkteco.com Copyright © 2022 ZKTECO CO., LTD. All Rights Reserved. P a g e | 29 Copyright©2022 ZKTECO CO., LTD. All rights reserved.
