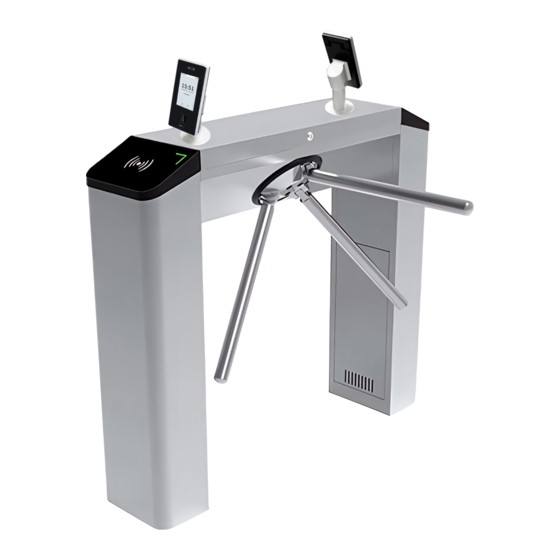

ZKTeco TS2000 Plus Series Installation Manual
ZKTeco TS2000 Plus Series Installation Manual

ZKTeco TS2000 Plus Series Installation Manual

Hide thumbs Also See for TS2000 Plus Series:

Advertisement

Quick Links

Installation Guide
ECTS-A122-SH (TS2000 Plus)
Version: 1.0
Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between the
actual product and the written information in this manual.

Advertisement

loading
Need help?

Need help?

Do you have a question about the TS2000 Plus Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ZKTeco TS2000 Plus Series

  • Page 1 Installation Guide ECTS-A122-SH (TS2000 Plus) Version: 1.0 Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between the actual product and the written information in this manual.
  • Page 2 Revision History Description Revision Date Author Reviewer Yang Kaijin Original Document 01/08/2024 V1.0...
  • Page 3 1 Installation Requirements It is recommended that the device be installed on a level and solid floor. If the floor is uneven or not strong enough to hold the device in place, resurface the floor or use a pedestal mount to alleviate the change problem.
  • Page 4 3 Preparation Before installing the device, make sure you have the following items: For removing or installing screws on the device. Screwdriver: Pencil: To mark the device size and screw hole locations. To drill holes according to the marked screw holes. Electric Drill: Wrench: To secure the M12 expansion screw on the device.
  • Page 5 Use the key to open the device chassis and then remove the covers. ① ② Use a pencil to mark down the screw holes, wire holes, and conduits of the device. 165mm Conduit X2 (L:105XW:30mm) 105mm Screw Hole X4 30mm Wire Hole X2 (φ80mm) Conduit 945mm...
  • Page 6 Take out the device and use an electric drill to create holes based on the markings. Screw Hole Concrete ② ① According to the mark of the device , use a cutting machine to create two conduits on the device that is 30mm wide, 105mm length and 100mm deep.
  • Page 7 After drilling, clean up debris and dust, then reposition the device at the installation site. Verify if the drilled holes and conduits align with the marks on the device. ① ②...
  • Page 8 Place the 20mm diameter PVC pipe into the conduit, thread the power cable, Ethernet cable, and fire signal cable through the PVC pipe to connect the power supply, controller, and fire alarm. Test all device functions for normal operation, disconnect the power supply once confirmed, and fill the conduit with concrete.
  • Page 9 Power Ethernet Cable Cable Fire Signal Cable φ20mm PVC Pipe φ20mm PVC Pipe Align the device with the drilled holes. Next, insert the bolts and secure them using a wrench. Finally, add the washers and the nuts, and tighten them securely with a wrench. Washer Bolt Washer...
  • Page 10 Install the chassis covers and use the key to lock it. ② ① Use the key to open the top lid of the device. ② ①...
  • Page 11 Align the arm assembly with the internal chassis assembly , and then secure it with the screws. ① ② Close the top lid and lock i ① ②...
  • Page 12 We suggest marking a warning line on the floor after installation. This serves as a reminder for users to wait outside the marked area until the previous user completes the verification process and passes through the device.
  • Page 13 5 Wiring Diagram...
  • Page 14 ZKTeco Industrial Park, No. 32, Industrial Road, Tangxia Town, Dongguan, China. Phone : +86 769 - 82109991 : +86 755 - 89602394 www.zkteco.com Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.
