Product Name and Model Number
User Manual
SBT2000S Swing Barrier Turnstile
Date: September 2020
Doc Version: 1.0
English
Thank you for choosing our product. Please read the instructions carefully
before operation. Follow these instructions to ensure that the product is
functioning properly. The images shown in this manual are for illustrative
purposes only.
P a g e
| 1
For further details, please visit our Company's website
www.zkteco.com.
Copyright©2020 ZKTECO CO., LTD. All rights reserved.
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SBT2000S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ZKTeco SBT2000S

Summary of Contents for ZKTeco SBT2000S

  • Page 1 Follow these instructions to ensure that the product is functioning properly. The images shown in this manual are for illustrative purposes only. For further details, please visit our Company’s website www.zkteco.com. P a g e Copyright©2020 ZKTECO CO., LTD. All rights reserved.
  • Page 2 Copyright © 2020 ZKTECO CO., LTD. All rights reserved. Without the prior written consent of ZKTeco, no portion of this manual can be copied or forwarded in any way or form. All parts of this manual belong to ZKTeco and its subsidiaries (hereinafter the "Company" or "ZKTeco").
  • Page 3 SBT2000S Swing Barrier Turnstile User Manual relating to the use of the information contained in or referenced by this manual, even if ZKTeco has been advised of the possibility of such damages. This manual and the information contained therein may include technical, other inaccuracies or typographical errors.
  • Page 4 User Manual About the Company ZKTeco is one of the world’s largest manufacturer of RFID and Biometric (Fingerprint, Facial, Finger-vein) readers. Product offerings include Access Control readers and panels, Near & Far-range Facial Recognition Cameras, Elevator/floor access controllers, Turnstiles, License Plate Recognition (LPR) gate controllers and Consumer products including battery-operated fingerprint and face-reader Door Locks.
  • Page 5 The general information which helps in performing the operations faster The information which is significant Care taken to avoid danger or mistakes The statement or event that warns of something or that serves as a cautionary example. P a g e Copyright©2020 ZKTECO CO., LTD. All rights reserved.

  • Page 6: Table Of Contents

    ....................................12 NTRODUCTION ......................................... 15 RROR ................................16 IRING IAGRAM AND UNCTION MAINTENANCE ..........................18 ....................................18 HASSIS AINTENANCE ..................................18 OVEMENT AINTENANCE ................................... 18 OWER UPPLY AINTENANCE TROUBLESHOOTING.......................... 19 P a g e Copyright©2020 ZKTECO CO., LTD. All rights reserved.

  • Page 7: Overview

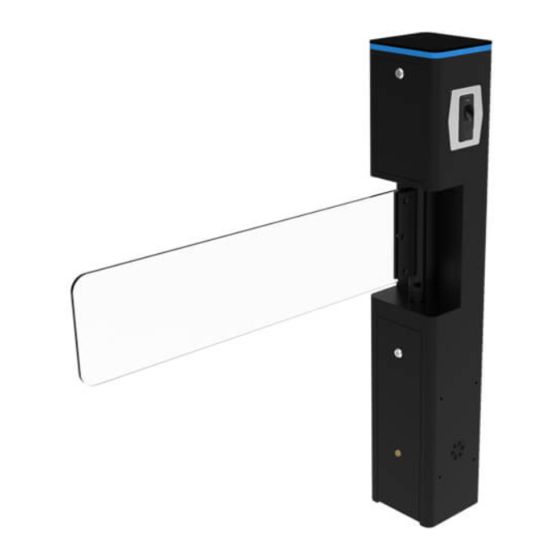

    The SBT2000S swing barrier turnstile is designed for smooth and silent operation and draws very little power. It is made of SPCC which makes SBT2000S swing barrier turnstile highly durable. These barriers are normally held in a locked position, thus denying access to the secured side. Upon SBT2000S’s reader (RFID and/or fingerprint) positively recognizing a user’s valid access card or fingerprint, its barriers swing...

  • Page 8: Mechanical System

    Transformer:-The voltage is step down by a transformer to 24V and supplied to the control panel. PGIC10-SV Reader Card Reading Area Control Board Clutch Motor Air Switch 24V Power Supply IR Sensor P a g e Copyright©2020 ZKTECO CO., LTD. All rights reserved.

  • Page 9: Working Principle

    User Manual Working Principle When the power is turned on, SBT2000S performs Power-on Self-Test. If no failure is detected, the barrier starts to operate normally. If a failure is detected, the system displays related messages and Error code on the LCD display screen so that the user can have a quick knowledge of the technical issue and solve the problem.

  • Page 10: Installation

    100 mm between the swing barrier turnstile and the wall needs to be reserved for ease of installing the device. The SBT2000S swing barrier turnstile may form a single channel, or two channels with a SBT2000S swing barrier turnstile, as shown in below figure.
  • Page 11 SBT2000S installation holes and cabling positions are shown in the below figure. Mark out the screw holes at the center of the stand, and the edge of the chassis base on the ground according to the sizes (as shown in the above figure).
  • Page 12 SBT2000S Swing Barrier Turnstile User Manual P a g e | 11 Copyright©2020 ZKTECO CO., LTD. All rights reserved.

  • Page 13: Menu & Their Functions

     Correct Barrier Position(02EXXX) (02E001) Zero position  (02E002) Left opening position  (02E003) Right opening position  Adjust the position only when SBT2000S is installed properly. P a g e | 12 Copyright©2020 ZKTECO CO., LTD. All rights reserved.
  • Page 14 The larger the number, the longer the deceleration time and the more stable the swing arm operation. The Left Gate Closing Deceleration Distance value can be set between 10 to 25 and the default value is 16. P a g e | 13 Copyright©2020 ZKTECO CO., LTD. All rights reserved.
  • Page 15  In/Out Voice Exchange(16EXXX) (16E000) Right in, left out (default)  (16E001) Right out, left in  Anti-crush Setting(17EXXX) (17E000) Stop anti-crush (default)  (17E001) Close  P a g e | 14 Copyright©2020 ZKTECO CO., LTD. All rights reserved.

  • Page 16: Error Code

    ER0008 Clutch Locked ER016 The code disk detection failed. ER032 Electric Motor Shaft Lock Protection failure ER064 Electric Motor output anomaly ER128 Fire protection failure during Self-Check P a g e | 15 Copyright©2020 ZKTECO CO., LTD. All rights reserved.

  • Page 17: Wiring Diagram And Function

    SBT2000S Swing Barrier Turnstile User Manual Wiring Diagram and Function Check circuit according to the following wiring diagram: P a g e | 16 Copyright©2020 ZKTECO CO., LTD. All rights reserved.
  • Page 18 LED light: It is connected to the light belt on the top of the device. IR Sensor: It is connected to the swing arm/barrier to achieve anti-crush function. P a g e | 17 Copyright©2020 ZKTECO CO., LTD. All rights reserved.

  • Page 19: Maintenance

    • Replace the aging electronic components. Note: SBT2000S swing barrier maintenance must be maintained by professional personnel, especially the movement and the electric control part. For ensuring operational safety, cut off the power supply when the barrier is not in use.

  • Page 20: Troubleshooting

    2. Check if the gate signal of the access controller is connected to the gate controller. 3. Enter menu to see if current mode is set to “card unavailable”. P a g e | 19 Copyright©2020 ZKTECO CO., LTD. All rights reserved.
  • Page 21 ZKTeco Industrial Park, No. 26, 188 Industrial Road, Tangxia Town, Dongguan, China. Phone : +86 769 - 82109991 : +86 755 - 89602394 www.zkteco.com Copyright © 2020 ZKTECO CO., LTD. All Rights Reserved.
