Installation Guide

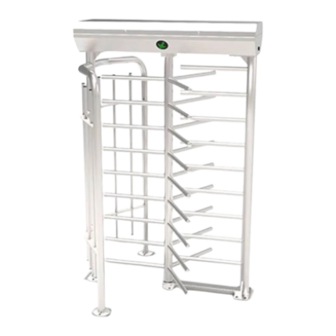

Full Height Turnstile Series
Applicable Models: FHT2300 Series, FHT2300D Series,
FHT2400 Series, FHT2400D Series
Date: July 2022
Doc Version: 1.1
English
Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between the
actual product and the written information in this manual.
Advertisement
Related Manuals for ZKTeco FHT2300 Series
Summary of Contents for ZKTeco FHT2300 Series
- Page 1 Applicable Models: FHT2300 Series, FHT2300D Series, FHT2400 Series, FHT2400D Series Date: July 2022 Doc Version: 1.1 English Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between the actual product and the written information in this manual.
-
Page 2: Installation Requirements
Except for the hex wrench, all other tools should be prepared on your own. The FHT2300 series, FHT2300D series, FHT2400 series and FHT2400D series have only slight differences in appearance, but the installation, wiring and use are the same, and the following is an example of... -
Page 3: Installation
3 Installation Place the frame to the installation site, and mark the floor following the periphery of the legs. ① ② ②... - Page 4 Below is a drawing of the Full Height Turnstile Series mounting hole locations and dimensions in millimeters. There may be errors, please refer to the actual product. 274.64 410.29 575.00 70.00 FHT2300Series 274.64 416.40 197.50 155.00 197.50 416.40 274.64 FHT2300DSeries...
- Page 5 47.60 70.00 629.31 575.00 FHT2400Series 8.00 8.02 47.63 164.00 682.39 146.00 146.00 682.39 47.63 FHT2400DSeries...
- Page 6 Take the frame aside and use the electric drill according to the drawn screw and wiring holes. ① ② Clean up the fragments and dust after drilling, then place the frame on the installation site again. Check whether the drilled holes corresponds to the mark on the device. User must pull the power cable and Ethernet from the machines and put them into the wire slot.
- Page 7 Align the frame with the drilled holes. Then, insert the bolts accordingly and fix them with a wrench. Finally, insert the washer and nut, tighten it with a wrench. Put the mainframe box on the frame, after connect the power cable, Ethernet and Tether Cable, fix up with M12 screws.
- Page 8 Note: Pay attention to the details in green circle, both of them should be in vertical direction. Upward view Planview of rotor of three arm barrier (120°) position and direction before installation The rotor direction should be place like this.
- Page 9 Put the whole rotating part in the middle of the frame and mainframe box and then fix up with screws and connection block. ③ ④ ① ②...
- Page 10 Front Bottom...
-
Page 11: Wiring Diagram
4Wiring Diagram After fixing the device, open the mainframe-box to connect power wire and reader. Pull out the reader and power cord from both sides of the column and connect to the corresponding interface. - Page 12 ZKTeco Industrial Park, No. 32, Industrial Road, Tangxia Town, Dongguan, China. Phone : +86 769 - 82109991 : +86 755 - 89602394 www.zkteco.com Copyright © 2022 ZKTECO CO., LTD. All Rights Reserved.
