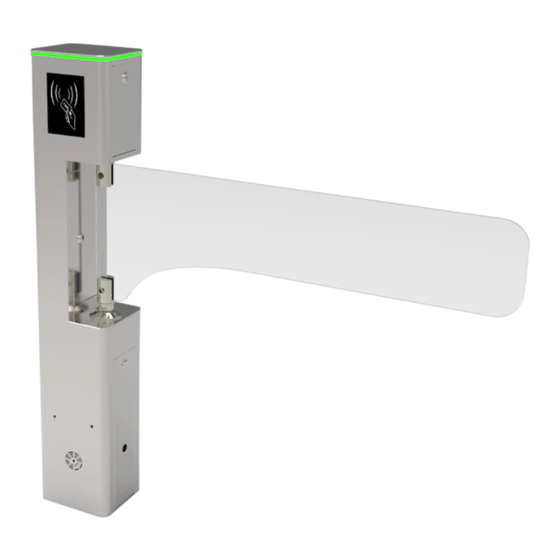

Swing barrier turnstile
Hide thumbs Also See for SBT1000S:

Advertisement

Quick Links

Swing Barrier Turnstile User Manual
Applicable Models: SBT1000S
Version: 1.2
Date: May. 2018
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SBT1000S and is the answer not in the manual?

Questions and answers

Summary of Contents for ZKTeco SBT1000S

  • Page 1 Swing Barrier Turnstile User Manual Applicable Models: SBT1000S Version: 1.2 Date: May. 2018...
  • Page 2: Table Of Contents

    Contents Chapter 1 Product Introduction ................................1 1.1 Model number and access control ............................1 1.2 Chassis and dimensions ................................1 1.3 Mechanical system ..................................1 1.4 Electronic control system ................................1 1.5 The working principle of swing barrier turnstile system ..................2 1.6 Product related parameters ...............................
  • Page 3: Chapter 1 Product Introduction

    √ 1.2 Chassis and dimensions SBT1000S series, with stainless steel housing, provide simple and beautiful design with anti-corrosion. It is provide orderly and civilized passage to people while eliminating illegal personnel access. In case of emergency, it ensures timely evacuation channel smoothly and convenient personnel.
  • Page 4: The Working Principle Of Swing Barrier Turnstile System

    3) After receiving the signal from the access controller, the control panel sends valid control signals to the electric motor and opens the barrier. 1.6 Product related parameters Dimension(mm) SBT1000S: L=200, W=185, H=1100 AC100-120V/200-...
  • Page 5: Chapter 2 The Installation Of The Product

    100mm between the swing barrier turnstile and the wall needs to be reserved for ease of installing the device. The SBT1000S swing barrier turnstile may form a channel, or form two channels with a SBT1000S swing barrier turnstile,as shown in figure 2-2A;...
  • Page 6 Figure 2-3A Mark out the screw hole centers of the stand, and the edge of the chassis base on the ground according to the sizes as shown on the figure 2-3A. Use a hammer drill to perforate M12 screw holes and then install the screws.
  • Page 7: Chapter 3 Menu Operation

    Chapter 3 Menu Operation 3.1 Function introduction There are 4 keys on the control panel, including "UP", "DOWN", "ENT" and "ESC". UP: to move up menu item or increase the value. DOWN: to move down menu item or increase the value. ENT: to enter setting menu item or confirm the current modified value.
  • Page 8 4. Opening mode setting 1) Bi-direction swiping card 2) Left direction swiping card 3) Right direction swiping card 4) Bi-directional prohibition Press ''ENT'' key to modify, press “UP/DOWN” to select opening mode, press ''ESC'' to exit. The default value is Bi-direction swiping card. 5.
  • Page 9: Wiring Diagram And Function

    When the gate closes, if the infrared sensors is triggered, the swing arm stops moving. 13. Version V2.1.2 3.3 Wiring diagram and function Check circuit according to the following wiring diagram: SBT1000S series Motor Wiring diagram 485A EGND 458B AP-R:IR3...
  • Page 10: Chapter 4 Product Maintenance

    Chapter 4 Product Maintenance 4.1 Chassis maintenance The chassis is made up of 304 stainless steels. There may be rust stains on its surface after using for a long time. Regularly sand the surface along the grain softly and carefully, Coat the surface with anti-rust oil, do not cover the infrared sensor.
  • Page 11: Chapter 5 Troubleshooting

    Chapter 5 Troubleshooting Number Failure description Analysis and solution Motor resistance may be too large, Gate open, but it is not in place Increase the value of minimum compensation speed. 1. Check if the speaker wire is loose. No sound 2.
