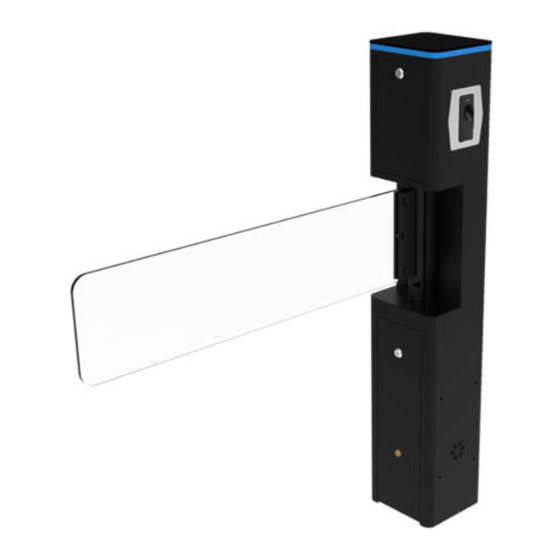

- Page 1 Installation Guide SBT2000S Swing Barrier Turnstile Version: 1.0 Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between the actual product and the written information in this manual.
- Page 2 The installation position of the swing barrier turnstile depends on its size. A distance of 100mm between the swing barrier turnstile and the wall needs to be reserved for ease of opening the top cover of the machine to perform maintenance and adjustment. The reference figure is shown below: 2274.02 2174.02 Figure 2-1 SBT2000S Series Dual-lane...
- Page 3 The power and signal wires should be set separately to easily distinguish strong and weak power. Please invite professional personnel to complete the wiring. The device must be connected to the ground. Below is the outline and dimensions of SBT2000S: Figure 3-1...
- Page 4 Figure 4-1. Drill the holes with Ф14 and embed M12 anchor screws or expansion screws. As shown on the Figure 4-2. Figure 4-1 1. Drill hole 2. Implantation of 3. Fix screw the screw SBT2000S Figure 4-2...
- Page 5 PVC conduits are laid 100mm under the ground, with the height of the exposed part not exceeding 100mm. In addition, the conduit outlet is bent back to prevent the ingress of water into the conduit. SBT2000S series installation holes and cabling positions is shown in Figure 4-3: Air Switch 2274.02...
- Page 6 Connect the online cables and perform the power-on test. Wait for 10 seconds for the turnstile to complete the self-test program. At the same time, check if the indicators work properly. If everything works fine, you can tighten the screws and fix the device. If an exception occurs, please contact your vendor.
- Page 7 5 Wiring Diagram Below is the wiring diagram:...
