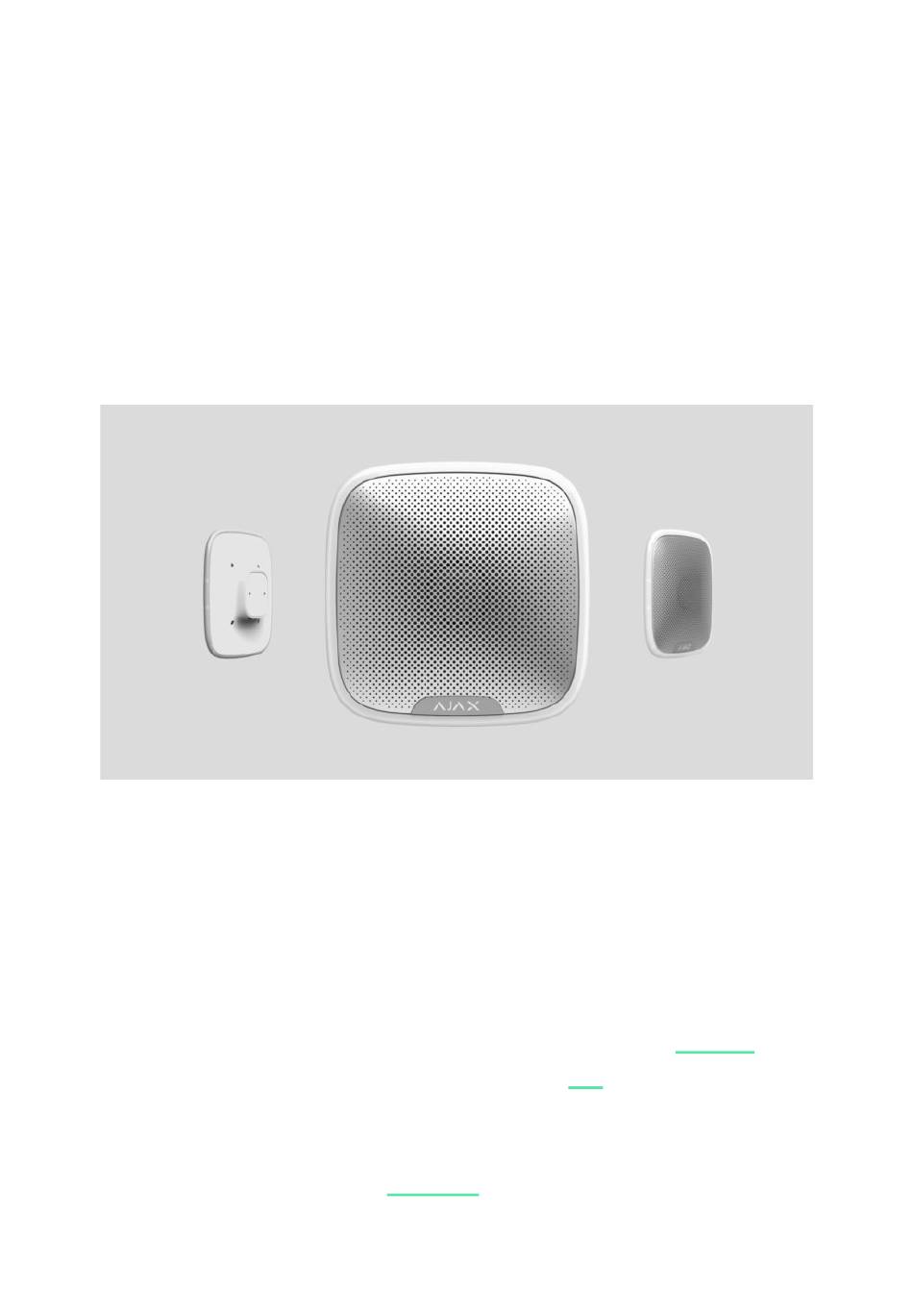

StreetSiren User Manual | Ajax Systems Support

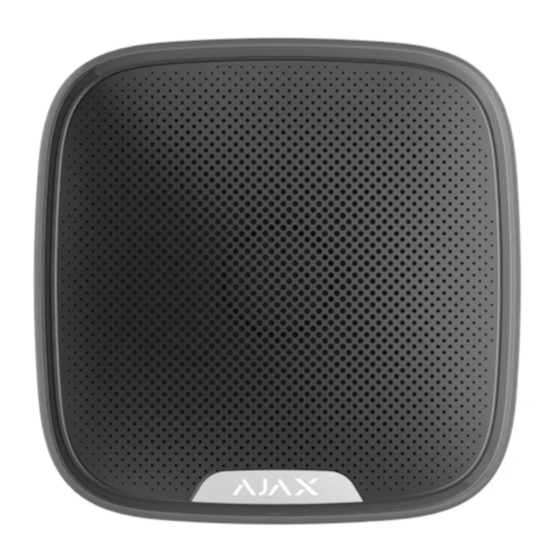

StreetSiren is a wireless outdoor alerting device with a sound
volume of up to 113 dB. Equipped with a bright LED frame and pre-
installed battery, StreetSiren can be quickly installed, set up, and
operate autonomously up to 5 years.
Connecting to the Ajax security system via the secured
protocol, StreetSiren communicates with the
to 1,500 m in line of sight.
The device is set up via the
Windows. The system notiPes users of all events through push
https://support.ajax.systems/en/manuals/streetsiren/?_ga=2.81606036.2098530096.1592217829-412135719.1591971279
StreetSiren User Manual
Updated May 27, 2020
Ajax apps
at a distance of up
hub
for iOS, Android, macOS, and
15-06-2020 12:45
radio
Jeweller
Pagina 1 van 17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the StreetSiren and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AJAX StreetSiren

Summary of Contents for AJAX StreetSiren

  • Page 1 StreetSiren User Manual Updated May 27, 2020 StreetSiren is a wireless outdoor alerting device with a sound volume of up to 113 dB. Equipped with a bright LED frame and pre- installed battery, StreetSiren can be quickly installed, set up, and operate autonomously up to 5 years.

  • Page 2: Functional Elements

    Plus integration modules. The Ajax security system can be connected to a central monitoring station of a security company. Buy street siren StreetSiren Functional elements 1. LED frame 2. Light indicator 3.

  • Page 3: Operating Principle

    StreetSiren is equipped with a tamper button and an accelerometer. The tamper button is triggered when the device body is opened, and the accelerometer is activated when someone’s try to move or dismount the device.
  • Page 4 StreetSiren User Manual | Ajax Systems Support 15-06-2020 12:45 1. Following the hub user guide, install the . Create an Ajax app account, add the hub, and create at least one room. 2. Switch on the hub and check the internet connection (via Ethernet cable and/or GSM network).
  • Page 5 The connection request is transmitted brieay: at the moment of switching on the device. StreetSiren switches off automatically after failing to connect to the hub. To retry the connection, you do not need to switch it off. If the device has already been assigned to another hub, switch it off and follow the standard pairing procedure.
  • Page 6 StreetSiren User Manual | Ajax Systems Support 15-06-2020 12:45 app. The update of the detector statuses in the list depends on the device ping interval set in the hub settings (the default value is 36 seconds). Please note that only 10 sirens can be connected to one hub States 1.
  • Page 7 StreetSiren User Manual | Ajax Systems Support 15-06-2020 12:45 The temperature of the device which is Temperature measured on the processor and changes gradually The signal strength between the hub Jeweller Signal Strength and device The connection status between the hub...
  • Page 8 StreetSiren User Manual | Ajax Systems Support 15-06-2020 12:45 1. Devices 2. StreetSiren 3. Settings Setting Value First Peld Device name, can be edited Selecting the virtual room to which the Room device is assigned Selecting the security group to which the siren is assigned.
  • Page 9 StreetSiren User Manual | Ajax Systems Support 15-06-2020 12:45 levels: from 85 dB — the lowest to 113 dB — the highest Alarm Volume *the volume level was measured at a distance of 1 m Settling the time of the siren alarm...

  • Page 10: Performance Testing

    StreetSiren User Manual | Ajax Systems Support 15-06-2020 12:45 Indication Event Indication Emits an acoustic signal (the duration Alarm depends on the settings) and the LED frame blinks red Switching on The LED frame blinks once The LED frame lights up for 1 second,...
  • Page 11 StreetSiren User Manual | Ajax Systems Support 15-06-2020 12:45 The Ajax security system allows conducting tests for checking the functionality of connected devices. The tests do not start straight away but within a period of 36 seconds when using the standard settings. The test time start depends on the settings of the detector polling period (the Jeweller menu settings in hub settings).
  • Page 12 It is strictly prohibited to disassemble the device under voltage! Do not use the device with a damaged power cord. Mounting Before mounting StreetSiren, make sure that you have selected the optimal location and it is in compliance with the guidelines of this manual! https://support.ajax.systems/en/manuals/streetsiren/?_ga=2.81606036.2098530096.1592217829-412135719.1591971279...
  • Page 13 StreetSiren User Manual | Ajax Systems Support 15-06-2020 12:45 Installation process 1. If you are going to use an external power supply (12 V), drill a hole for the wire in SmartBracket. Before installation, make sure that there the wire insulation is not damaged! You need to drill a hole in the mounting panel to lead out the external power supply wire.

  • Page 14: Maintenance

    StreetSiren User Manual | Ajax Systems Support 15-06-2020 12:45 3. Put StreetSiren on the SmartBracket panel and turn it clockwise. Fix the device with a screw. Fixing the siren to the panel with a screw makes it diUcult for intruders to remove the device quickly.

  • Page 15: Tech Specs

    StreetSiren User Manual | Ajax Systems Support 15-06-2020 12:45 Tech specs Type of notiPcation Sound and light (LEDs) 85 dB to 113 dB at a distance of 1 m Sound notiPcation volume (adjustable) Operating frequency of the piezo 3.5 ± 0.5 kHz...

  • Page 16: Complete Set

    StreetSiren User Manual | Ajax Systems Support 15-06-2020 12:45 Complete Set 1. StreetSiren 2. SmartBracket mounting panel 3. Battery CR123A (pre-installed) – 4 pcs 4. Installation kit 5. Quick Start Guide Warranty Warranty for the “AJAX SYSTEMS MANUFACTURING” LIMITED LIABILITY COMPANY products is valid for 2 years after the purchase and does not apply to the pre-installed battery.

  • Page 17: Need Help

    StreetSiren User Manual | Ajax Systems Support 15-06-2020 12:45 Need help? In this section you’ll Pnd detailed manuals and educational videos about all features of Ajax. And in case you need help of a technical specialist, we’re available 24/7. Send request https://support.ajax.systems/en/manuals/streetsiren/?_ga=2.81606036.2098530096.1592217829-412135719.1591971279...
