StreetSiren DoubleDeck Fibra User manual

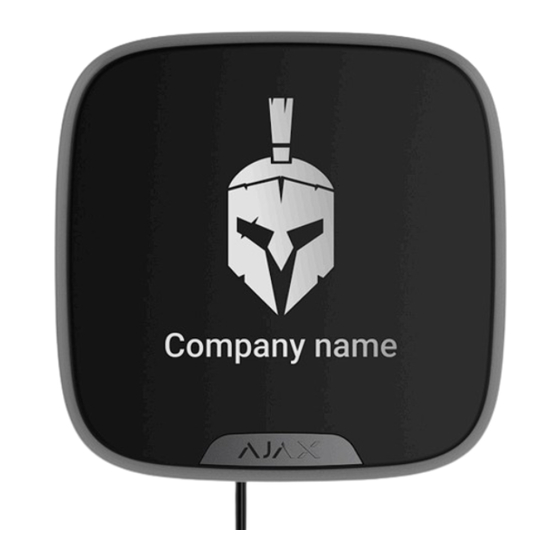

StreetSiren DoubleDeck Fibra is a wired siren of the Ajax system with the ability
to install a branded faceplate. Equipped with a LED frame and piezoelectric
alarm indicator producing sound volume up to 113 dB. For both indoor and
outdoor installation.
The siren is compatible with
hubs radio signal range extenders ocBridge Plus
,
StreetSiren DoubleDeck works as part of the Ajax system, exchanging data with
the hub via the secure protocol of Fibra wired technology. The communication
range is up to 2,000 m when connected via twisted pair U/UTP cat.5.
StreetSiren DoubleDeck is the device of the Fibra wired product line. The
installation, sale, and administration of these devices are performed only by
accredited Ajax partners.
Updated January 10, 2024
Hub Hybrid (2G)
and
,
Hub Hybrid (4G)
. Connection to other
, and
uartBridge
is not provided.

Advertisement

loading
Need help?

Need help?

Do you have a question about the StreetSiren DoubleDeck Fibra and is the answer not in the manual?

Questions and answers

Related Manuals for AJAX StreetSiren DoubleDeck Fibra

Summary of Contents for AJAX StreetSiren DoubleDeck Fibra

  • Page 1 StreetSiren DoubleDeck Fibra User manual Updated January 10, 2024 StreetSiren DoubleDeck Fibra is a wired siren of the Ajax system with the ability to install a branded faceplate. Equipped with a LED frame and piezoelectric alarm indicator producing sound volume up to 113 dB. For both indoor and outdoor installation.

  • Page 2: Functional Elements

    6. SmartBracket mounting panel. To remove the panel, slide it down. 7. Perforated part for the output of Fibra line cables, by which the siren is connected to the hub. 8. QR code and ID (serial number) of the siren. Used for connection to the Ajax system. Tamper button .

  • Page 3: Operating Principle

    Operating principle 00:00 00:12 StreetSiren DoubleDeck Fibra is a wired Ajax siren with the ability to install a branded faceplate. The device is equipped with a piezoelectric buzzer for sound alerting and an LED frame for visual alerting. The siren has a sealed battery that is used to power the device.
  • Page 4 Alarm volume and duration By alarm the siren sounds from 3 seconds to 3 minutes, emitting a sound volume of 85 to 113 dB. In the Ajax apps, you can set the duration and volume of the alarm, as well as determine which devices will activate the siren.
  • Page 5 Ajax apps. Learn more Sending events to the monitoring station The Ajax system can transmit alarms to the PRO Desktop monitoring app, as well as to the central monitoring station (CMS) using SurGard (Contact ID), SIA...

  • Page 6: Selecting The Installation Site

    When an alarm is received, the monitoring station operator of the security company knows what happened and where the rapid response unit has to be sent. Addressability of Ajax devices allows you to transmit to PRO Desktop and to the CMS events, device type, its assigned name and location (room, group).
  • Page 7 If the siren cannot be placed at this height, it can be installed lower. Follow placement recommendations when designing the Ajax system for an object. The security system should be designed and installed by professionals.
  • Page 8 Fibra systems are available in this article Topologies Ajax security systems support two topologies: Beam (Radial wiring) and Ring. Connecting devices using a Ring topology will be implemented in the next OS Malevich updates. Hardware update of Hub Hybrid is not required.
  • Page 9 Beam (Radial wiring) Ring Occupies one line output of the hub. Occupies two line outputs of the hub. Up to 8 lines on the same hub. Up to 4 rings on the same hub. Up to 2,000 m of wired communication for the Up to 500 m of wired communication for the same line.

  • Page 10: Preparing For Installation

    Cable length and type The maximum communication range for wired connection using the Beam (Radial) topology is 2,000 meters, and that using the Ring topology is 500 meters. Recommended cable types: U/UTP cat.5 4 × 2 × 0.51, copper conductor. Signal cable 4 ×...

  • Page 11: Cable Routing

    cable will be affected by fewer external factors that can impact the wear of the conductor and its insulating layer. As a rule, system cables are laid at the construction or repair stage, after the object has been wired. If impossible to install cables inside the walls, route them so that the cable is su ciently protected and hidden from prying eyes.

  • Page 12: Installation And Connection

    Observe the permissible bend radius of the cable. It is speci ed by the manufacturer in the cable speci cations. Otherwise, you risk damaging or breaking the conductor. Preparing cables for connection Remove the insulating layer of the cable and strip the cable with a special insulation stripper.
  • Page 13 4. Turn the siren over while holding the front and back of the body. Remove the protective plastic panel. When installing the panel, do not remove the plastic frame and do not remove the LED strip from the seat. 5. Drill a hole in the plastic protective plate at the de ned location. 6.
  • Page 14 8. Fit the protective plastic panel in place (the Ajax logo on the connection side of the LED strip to the board) with little effort. The properly mounted plastic panel will protrude above the LED frame no more than 1.0 to 1.5 mm.
  • Page 15 3. Remove the SmartBracket mounting panel from the device and cut out the perforated part to output cables from the bottom of the siren or through the wall. 1 — for the output of cables through the wall. 2 — for cable output from the bottom of the siren. 4.
  • Page 16 2.5 meters or more. 8. Install the device on the SmartBracket mounting panel. 9. Turn on lines power in the Ajax PRO app (Hub → Settings → Lines → Lines Power Supply). When power is applied, the LED lighting will notify you that the device is turned on.
  • Page 17 3. Make sure that the hub is on and has Internet access via Ethernet and/or mobile network. You can do this in the Ajax app or by looking at the hub’s LED indicator. It should light up white or green.

  • Page 18: Functionality Testing

    StreetSiren DoubleDeck works with one hub only. After connecting to a new hub, the siren stops exchanging commands with the old one. Once added to a new hub, StreetSiren DoubleDeck is not removed from the device list of the old hub. Functionality testing Tests available for StreetSiren DoubleDeck Fibra:...
  • Page 19 Volume Level Test 6. Run the test following the prompts of the app. Icons The icons show some of the device states. You can view them in Ajax apps: 1. Select a hub in the Ajax app. 2. Go to the Devices tab.
  • Page 20 The device was not transferred to the new hub. Learn more States The states include information about the device and its operating parameters. StreetSiren DoubleDeck states can be found in the Ajax apps: 1. Select a hub in the Ajax app. 2. Go to the Devices tab.
  • Page 21 The acceptable error between the value in the app and the temperature at the installation site: 2°C. The value is updated as soon as the siren identi es a temperature change of at least 1°C. You can con gure a scenario by temperature to control automation devices.
  • Page 22 Closed — the siren is installed on the SmartBracket mounting panel. Normal state of the enclosure. Front lid open — the integrity of the siren casing has been violated. Check the state of the siren enclosure. Device detached from surface — the siren has been removed from the SmartBracket mounting panel.
  • Page 23 Beeps Settings When enabled, the siren noti es about arming Arming/Disarming and disarming by ashing the LED and a short beep. When enabled, the siren noti es you when the Night mode Night Mode Activation/Deactivation is switched on/off by ashing the LED and making a short beep.
  • Page 24 The number of the hub’s Fibra line to which the Line No. siren is connected. Settings To change the siren settings in the Ajax app: 1. Go to the Devices tab. 2. Select StreetSiren DoubleDeck from the list. 3. Go to Settings by clicking on the gear icon 4.
  • Page 25 The room name is displayed in the text of SMS and noti cations in the events feed. Selecting the group to which the siren is assigned. You can select one or all groups: If the siren is assigned to a certain group, it noti es about alarms and events of this group only.
  • Page 26 Volume Test for the protected object. Learn more Opens StreetSiren DoubleDeck User Manual in User Guide the Ajax app. Permanent Deactivation Allows the user to disconnect the device without removing it from the system. Three options are available:...
  • Page 27 No — the device operates normally and transmits all events. Entirely — the device will not execute system commands, and the system will ignore alarms and other noti cations from the device. Lid only — the system will ignore noti cations about the triggering of the device tamper.
  • Page 28 When enabled, the siren beeps to signal about a delay when entering. Entry Delays Learn more When enabled, the siren beeps to signal about a delay when leaving. Exit Delays Learn more When enabled, the siren beeps to signal about a delay when entering Night Mode in the Entry Delays in Night Mode...
  • Page 29 The volume level was measured 1 m away from the siren. Setting the siren response to device alarms In Ajax apps, you can separately con gure the siren’s reaction to the alarms of each detector in the system. The function is useful if you do not need to activate the siren in case of the alarm of a speci c device.
  • Page 30 You can con gure the siren response to alarm when the panic button is pressed in the Ajax apps. To con gure the siren’s response to pressing the panic button in Ajax apps 1. Open the Ajax app. 2. Go to the Devices tab.
  • Page 31 The siren after-alarm indication does not work for always active detectors, if the detector was triggered when the system was disarmed. To enable the siren after-alarm indication, in Ajax PRO app 1. Go to the siren settings: Hub → Settings → Service → Sounds and Alerts.
  • Page 32 3. Press Select Devices and select the required sirens. The new parameters will be saved. 4. Click Back. All settings will be applied. How to set up Chime If Chime on opening is enabled, the siren informs you with a short beep if the opening detectors are triggered when the system is disarmed.
  • Page 33 6. Set the volume of the beeps. 3 options are available (the volume level was measured at a distance of 1 meter from the siren): 1. Quiet — 85 dB. 2. Loud — 100 dB. 3. Very loud — 113 dB. The speci ed Beep Volume also applies to the volume of beeps when arming/disarming and the delay when entering/leaving.

  • Page 34: Maintenance

    Use a soft dry cloth suitable for equipment care. Do not use substances that contain alcohol, acetone, gasoline, or other active solvents to clean the siren. Technical speci cations All technical speci cations of StreetSiren DoubleDeck Fibra Compliance with standards Setup in compliance with EN requirements Complete set 1.

  • Page 35: Warranty

    Warranty for products of Limited Liability Company “Ajax Systems Manufacturing” is valid for 2 years after purchase. If the device does not function correctly, please contact Ajax Technical Support rst. In most cases, technical issues can be resolved remotely. Warranty obligations...
  • Page 36 Email Subscribe...
