AJAX StreetSiren S DoubleDeck Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
StreetSiren S DoubleDeck Jeweler
StreetSiren S DoubleDeck Jeweler ist eine kabellose Außen- und Innensirene
mit einer Halterung für die Markenfrontplatte. Es ist mit einem LED-Rahmen und
einer piezoelektrischen Alarmanzeige ausgestattet, die eine Lautstärke von bis
zu 113 dB erzeugt. Es kann auch über ein externes 12-V⎓-Netzteil mit Strom
versorgt werden.
arbeitet innerhalb des Ajax-Systems und ist über das geschützte
Protokoll mit einem Hub
Hindernisse beträgt bis zu 1.500 Meter. StreetSiren S DoubleDeck läuft mit
einer vorinstallierten Batterie bis zu 5 Jahre.
Diese Produktlinie wird für Projekte entwickelt. Nur akkreditierte Ajax Systems-Partner
können Superior-Produkte installieren und verwalten.
Die Produktlinien Superior, Fibra und Baseline sind untereinander kompatibel. Dies
eröffnet zahlreiche Möglichkeiten für den Aufbau beliebig kon gurierter Systeme.
Funktionselemente
Benutzerhandbuch
Aktualisiert3. Juli 2023
verbunden . Die Kommunikationsreichweite ohne
Jeweler-

Advertisement

loading
Need help?

Need help?

Do you have a question about the StreetSiren S DoubleDeck and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AJAX StreetSiren S DoubleDeck

Summary of Contents for AJAX StreetSiren S DoubleDeck

  • Page 1 Jeweler- Protokoll mit einem Hub verbunden . Die Kommunikationsreichweite ohne Hindernisse beträgt bis zu 1.500 Meter. StreetSiren S DoubleDeck läuft mit einer vorinstallierten Batterie bis zu 5 Jahre. Diese Produktlinie wird für Projekte entwickelt. Nur akkreditierte Ajax Systems-Partner können Superior-Produkte installieren und verwalten.

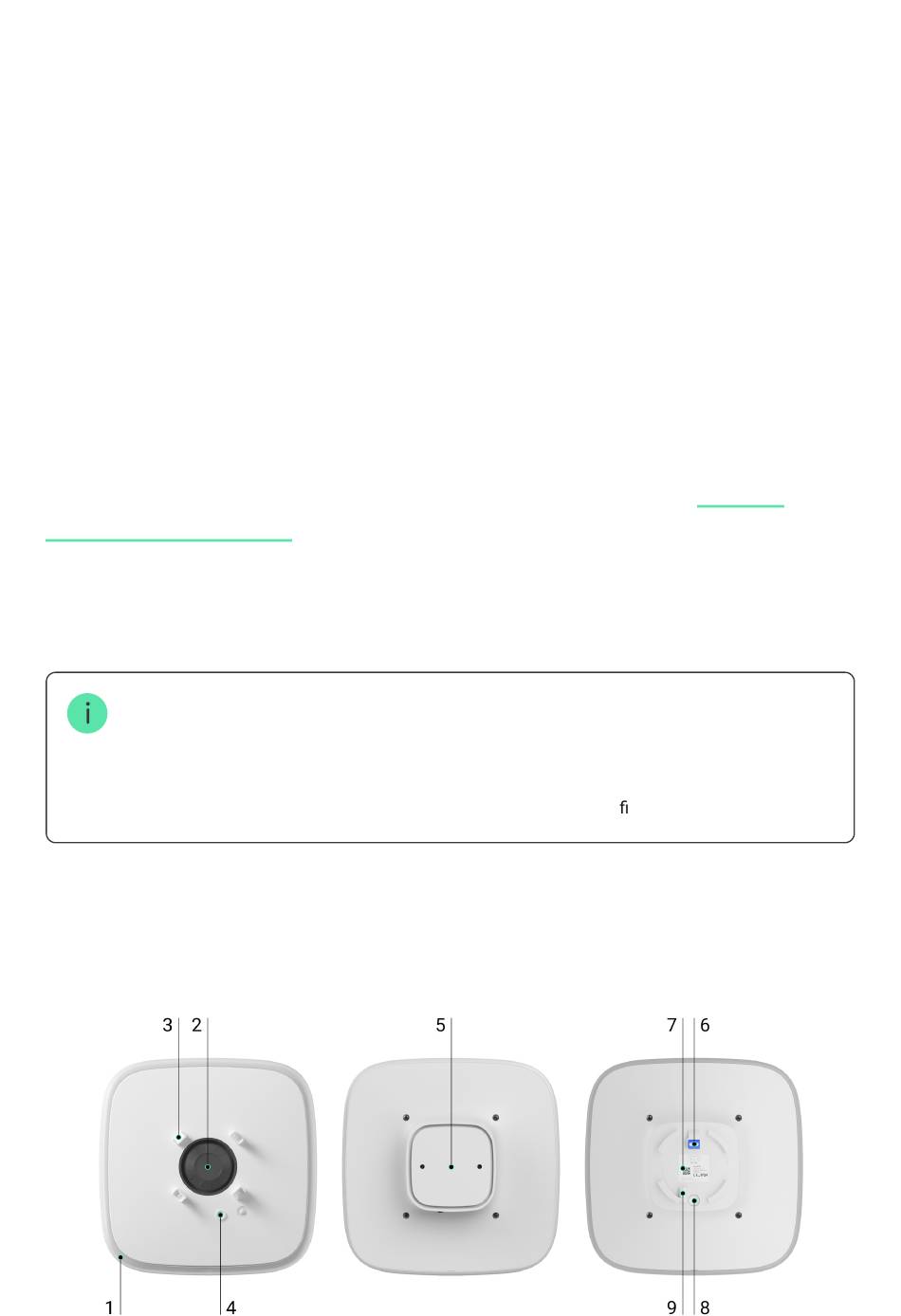

  • Page 2 8. An / aus Schalter. 9. Platz zum Befestigen des SmartBracket-Panels mit einer Schraube. Das Brandplate ist separat erhältlich. Kompatible Hubs und Range Extender Für den Betrieb des Detektors ist ein Ajax-Hub mit der Firmware Malevich 2.16 und höher erforderlich. Hubs Funksignal-Reichweitenverlängerer...
