StreetSiren Fibra User Manual

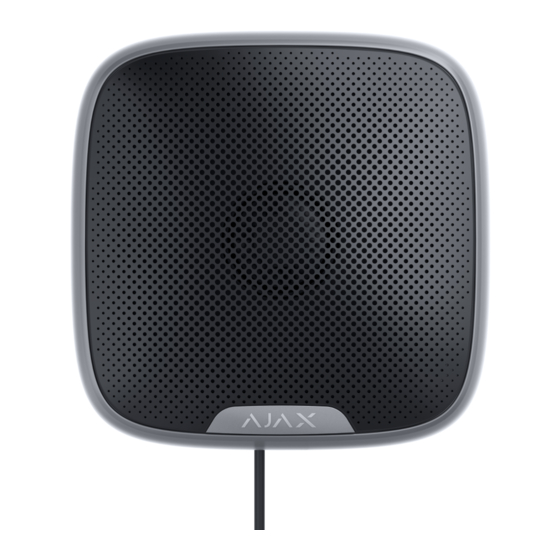

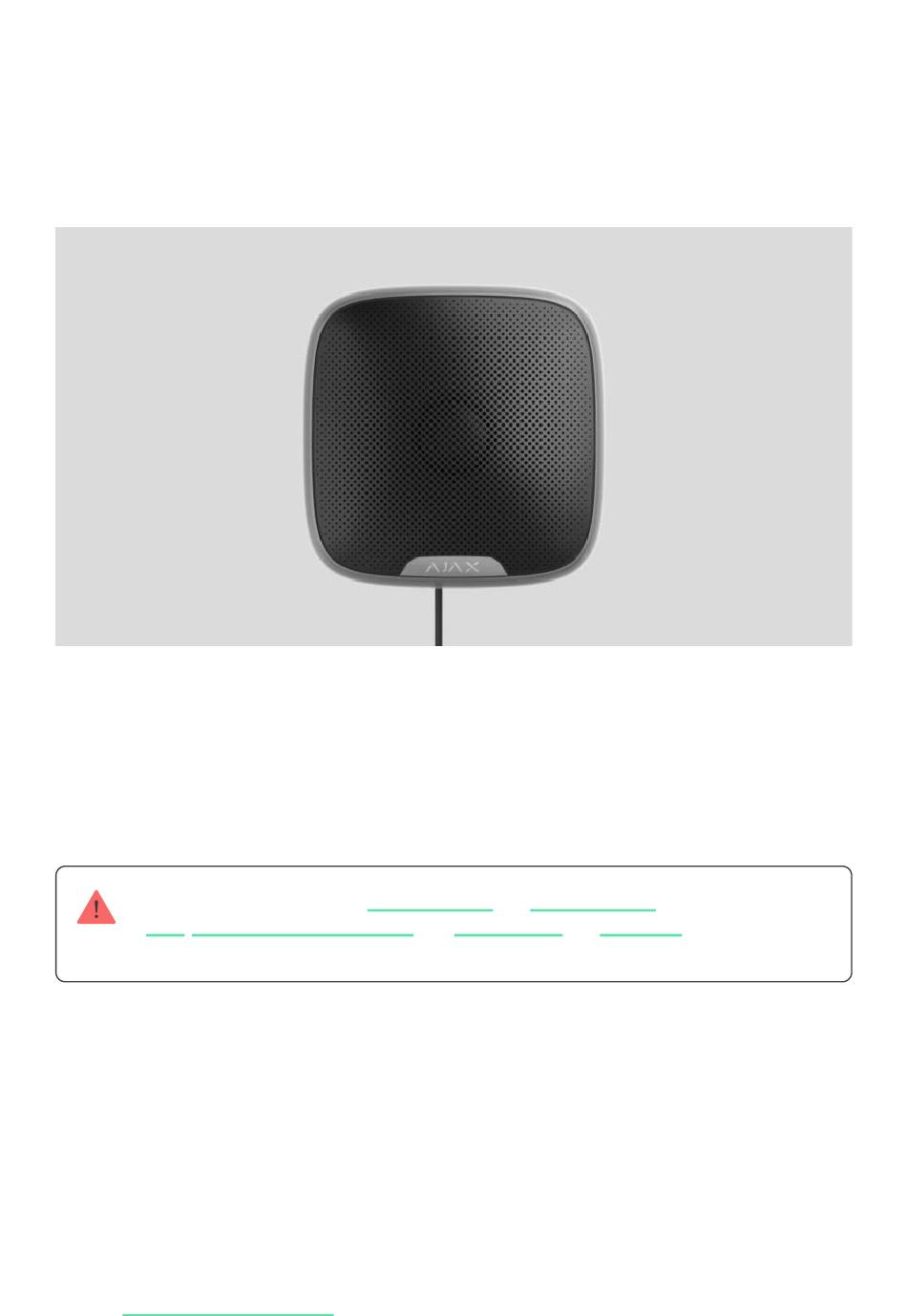

StreetSiren Fibra is a wired siren of the Ajax security system. Equipped with a
LED frame and piezoelectric alarm indicator producing sound volume up to 113
dB. For both indoor and outdoor installation.
The siren is compatible with
hubs radio signal range extenders
,
Integration with other security systems is not provided.
StreetSiren Fibra only works as a part of the Ajax security system,
communicating with the hub via the secure Fibra protocol. The wired connection
range is up to 2000 meters when connected via the twisted pair U/UTP cat.5.
StreetSiren Fibra is the device of the new Fibra wired product line. Such devices
can only be purchased, installed and administered by accredited Ajax partners.
Buy StreetSiren Fibra
Updated June 21, 2022
Hub Hybrid (2G)
and
Hub Hybrid (4G)
, and
ocBridge Plus
. Connection to other
and
uartBridge
is not supported.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the StreetSiren Fibra and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AJAX StreetSiren Fibra

Summary of Contents for AJAX StreetSiren Fibra

  • Page 1 StreetSiren Fibra User Manual Updated June 21, 2022 StreetSiren Fibra is a wired siren of the Ajax security system. Equipped with a LED frame and piezoelectric alarm indicator producing sound volume up to 113 dB. For both indoor and outdoor installation.

  • Page 2: Functional Elements

    Functional elements Operating principle StreetSiren Fibra is a wired outdoor siren. The device is equipped with a piezoelectric buzzer for sound alerting and an LED frame for visual alerting. StreetSiren Fibra performs two tasks: It informs about alarms and indicates the arming mode.
  • Page 3 When alarmed, the siren sounds for 3 to 180 seconds, producing a sound volume of 85 to 113 dB. In the Ajax apps, you can set the duration and volume of the alarm, as well as determine which detectors will activate the siren.
  • Page 4 Addressability of each Ajax device allows you to send not only events to the PRO Desktop or to the CMS but also the type of the device, the name of the device, and the virtual room to which the detector is assigned.
  • Page 5 Consider the placement recommendations when designing your facility’s security system. Design and installation of the security system should be carried out by professionals. A list of authorized o cial Ajax partners is available here Design and preparation For the system to work correctly, it is important to properly design the project and install all devices correctly .
  • Page 6 cables. Do not allow cables to sag. The raceway should be hidden from view if possible — for example, behind furniture. We recommend laying cables inside walls, oors, and ceilings. This will provide greater security: the cables will not be visible, and it will be impossible for an intruder to access them.

  • Page 7: Installation And Connection

    3. In places where the LED indication of the siren will not be visible. Installation and connection Before installing StreetSiren Fibra, make sure that you have selected the optimal location and that it meets the conditions of this manual. Cables must be hidden from view and located in a place that is di cult for intruders to access to reduce the likelihood of sabotage.
  • Page 8 When connecting to the device terminals, do not twist the wires together; solder them. The ends of the wires that will be inserted into the terminals should be tinned or crimped with special tips. This will ensure a reliable connection. Follow safety procedures and regulations for electrical installation work.
  • Page 9 4. Run the cable from the hub into the siren enclosure through the hole made. 5. Connect the wires to the terminals according to the scheme below. Follow the polarity and connection order of the wires. Securely fasten the wires to the terminals.
  • Page 10 11. Turn on the hub to supply the connected siren with power. When power is applied, the siren’s LED frame will notify that the device is turned on. Add StreetSiren Fibra to the system 13. Conduct the Fibra signal strength test. The recommended signal strength value is two or three bars.

  • Page 11: Adding To The System

    Adding to the system The siren is only compatible with Hub Hybrid (2G) and Hub Hybrid (4G). Adding and con guring Fibra devices is only possible through the Ajax PRO app by a user with administrator rights. Types of accounts and their rights Before adding a device 1.
  • Page 12 Save. If the device adds to the hub successfully, it will disappear from the list of devices available to add. 6. The devices added to the hub will appear in the list of devices in the Ajax app. Device status updates depend on the Fibra settings; the default value is 36 seconds.
  • Page 13 The siren enclosure is open (tamper is triggered). There is no connection with the hub via the Fibra protocol. Icons The icons display some of StreetSiren Fibra states. You can view them in the Ajax app on the Devices tab.
  • Page 14 Parameter Meaning Clicking on opens a list of StreetSiren Fibra malfunctions. Malfunction The eld is displayed if a malfunction is detected. Siren temperature. Measured on the processor and changes gradually. Acceptable measurement error between the value in the app and the room temperature: 2–...
  • Page 15 Duration of the alarm sound: 3 to 180 seconds Alarm duration, sec Set in increments of 3 seconds. Settings of the StreetSiren Fibra LED indication: Off — LED indication is off. Armed — LED blinks once every 2 seconds only when the system is armed.
  • Page 16 SmartBracket mounting panel. Device № Siren loop (zone) number. The number of the hub bus the siren is Bus № physically connected to. Settings To change StreetSiren Fibra settings in the Ajax app:...
  • Page 17 1. Go to the Devices tab. 2. Choose StreetSiren Fibra from the list. 3. Go to Settings by clicking on the gear icon 4. Set the required parameters. 5. Click Back to save the new settings. Settings Meaning Siren name. Displayed in the list of hub devices, SMS text, and noti cations in the events feed.
  • Page 18 3 to 180 seconds for each operation. Alarm duration, sec Set in increments of 3 seconds. Settings of the StreetSiren Fibra LED indication: Off — LED indication is off. Armed — LED blinks once every 2 seconds only when the system is armed.
  • Page 19 Use it to check how loud the siren is and Volume Level Test whether it can be heard in other rooms. Learn more Opens StreetSiren Fibra User Manual in the Ajax User Manual app. Allows to disable the device without removing it from the system.
  • Page 20 once per second to signal signal depends on the siren about an entry delay. settings. What is Delay When Entering/Leaving When enabled, the siren beeps once per second to signal about an exit delay. The volume of the sound Delay when leaving signal depends on the siren What is Delay When settings.
  • Page 21 1 m away from the siren. Setting up the processing of detector alarms Through the Ajax app, you can con gure which detector alarms can activate the siren. This will help to avoid situations when the siren sounds on water leak detection or any other alarm.
  • Page 22 Setting the response to pressing the panic button in the Ajax app The siren can respond to pressing the panic button in Ajax apps. Note that the panic button can be pressed even if the system is disarmed! For the siren to respond to pressing the panic button: 1.
  • Page 23 1. The system registers the alarm. 2. The siren plays an alarm sound (the duration and volume depend on settings). 3. The siren’s LED and the external LED (if connected) blink twice every 3 seconds until the system is disarmed. With after-alarm indication the users and passing security companies patrols can see that the system was triggered.

  • Page 24: Siren Settings

    Noti cations are con gured in two stages: setting up sirens and setting up opening detectors. What is Chime Siren settings 1. Go to the Devices tab. 2. Select the siren. 3. Go to its Settings by clicking the gear icon in the upper right corner.
  • Page 25 If an external contact is open (available if the External contact option is enabled). 6. Select the chime sound: 1 to 4 short beeps. Once selected, the Ajax app will play the sound. 7. Click Back to save and apply the settings.

  • Page 26: Functionality Testing

    Functionality testing The Ajax security system provides several types of tests that help you make sure that installation points of devices are selected correctly. StreetSiren Fibra tests do not start straight away but no later than over a single hub-detector ping period (36 seconds whith a default hub settings).

  • Page 27: Complete Set

    Warranty for the AJAX SYSTEMS MANUFACTURING Limited Liability Company products is valid for 2 years after the purchase. If the device does not function correctly, please contact the Ajax Technical Support rst. In most cases, technical issues can be resolved remotely.
