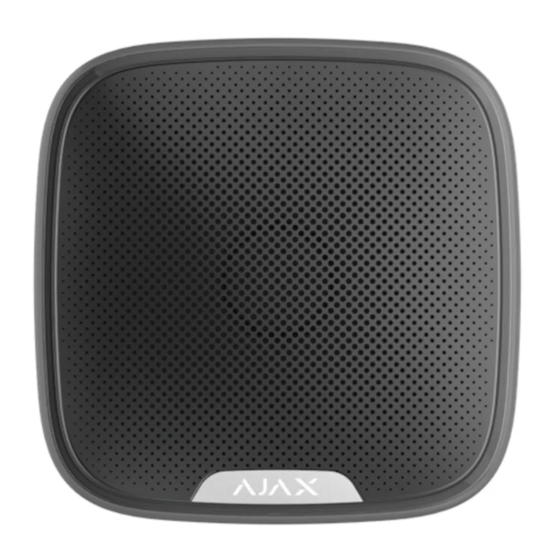

StreetSiren is a wireless outdoor alerting device with a sound volume of up to 113
dB. Equipped with a bright LED frame and pre-installed battery, StreetSiren can be
quickly installed, set up, and operate autonomously up to 5 years.
Connecting to the Ajax security system via the secured
StreetSiren communicates with the
sight.
The device is set up via the
system noti�es users of all events through push noti�cations, SMS, and calls (if
activated).
StreetSiren operates with
ocBridge Plus
StreetSiren User Manual
Posted on July 1, 2021
hub
Ajax apps
for iOS, Android, macOS, and Windows. The
Ajax hubs
only and does not support connecting via
integration modules.
Jeweller
at a distance of up to 1,500 m in line of
radio protocol,
uartBridge
or

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the StreetSiren and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AJAX StreetSiren

Summary of Contents for AJAX StreetSiren

  • Page 1 StreetSiren User Manual Posted on July 1, 2021 StreetSiren is a wireless outdoor alerting device with a sound volume of up to 113 dB. Equipped with a bright LED frame and pre-installed battery, StreetSiren can be quickly installed, set up, and operate autonomously up to 5 years.

  • Page 2: Functional Elements

    The Ajax security system can be connected to a central monitoring station of a security company. Buy street siren StreetSiren Functional elements 1. LED frame 2. Light indicator 3. Siren buzzer behind the metal net 4. SmartBracket attachment panel 5. External power supply connection terminals 6.
  • Page 3 StreetSiren is equipped with a tamper button and an accelerometer. The tamper button is triggered when the device body is opened, and the accelerometer is activated when someone’s try to move or dismount the device.
  • Page 4 StreetSiren switches off automatically after failing to connect to the hub. To retry the connection, you do not need to switch it off. If the device has already been...
  • Page 5 Please note that only 10 sirens can be connected to one hub States 1. Devices 2. StreetSiren Parameter Value The temperature of the device which is measured Temperature on the processor and changes gradually Jeweller Signal Strength The signal strength between the hub and device...
  • Page 6 Firmware Siren �rmware version Device ID Device identi�er Settings 1. Devices 2. StreetSiren 3. Settings Setting Value First �eld Device name, can be edited Selecting the virtual room to which the device is Room...
  • Page 7 If activated, the siren LED blinks once every 2 LED indication seconds when the security system is armed If activated, the siren indicates arming and Beep When Arming/Disarming disarming by LED frame blink and a short sound signal If activated, the siren will beep delays (available Beep on Entry/Exit delay from 3.50 FW version) Selecting the volume level of the siren beeper...
  • Page 8 5. Enable the Alert with a siren if the hub or detector lid is open option. Setting the response to pressing the panic button in the Ajax The siren can respond to pressing the panic button in Ajax apps. Note that the...
  • Page 9 3. Select the Service menu. 4. Go to Siren Settings. 5. Enable the Alert with a siren if in-app panic button is pressed option. Setting the siren after-alarm indication The siren can inform about triggerings in armed system by means of LED indication.
  • Page 10 Lid opening 3. Select the sirens needed. Go back to Siren Settings. The set parameters will be saved. 4. Click Back. All values will be applied. StreetSiren with �rmware version 3.72 and later supports this function. Indication Event Indication Emits an acoustic signal (the duration depends on...

  • Page 11: Performance Testing

    The LED frame corner lights up and goes out when the system is armed/disarmed, the alarm Low battery goes off, in case of dismounting or unauthorized opening Performance Testing The Ajax security system allows conducting tests for checking the functionality of...
  • Page 12 If the detector has low or unstable signal strength even after moving, use a radio signal range extender StreetSiren is protected from dust/moisture (IP54 class), which means it can be placed outdoors. The recommended installation height is 2.5 meters and higher.

  • Page 13: Installation Process

    Installation process 1. If you are going to use an external power supply (12 V), drill a hole for the wire in SmartBracket. Before installation, make sure that there the wire insulation is not damaged! You need to drill a hole in the mounting panel to lead out the external power supply wire.

  • Page 14: Maintenance

    Using the double-sided adhesive tape is not recommended either for a temporary nor permanent �xing. 3. Put StreetSiren on the SmartBracket panel and turn it clockwise. Fix the device with a screw. Fixing the siren to the panel with a screw makes it di�cult for intruders to remove the device quickly.

  • Page 15: Tech Specs

    Accelerometer 868.0 – 868.6 MHz or 868.7 – 869.2 MHz Frequency band depending on the region of sale hubs range Operates with all Ajax , and Compatibility extenders Maximum RF output power Up to 25 mW Modulation of the signal...

  • Page 16: Complete Set

    4. Installation kit 5. Quick Start Guide Warranty Warranty for the “AJAX SYSTEMS MANUFACTURING” LIMITED LIABILITY COMPANY products is valid for 2 years after the purchase and does not apply to the pre-installed battery. If the device does not work correctly, you should �rst contact the support service —...
