5-light 30" (762 mm)
Studio Makeup Station
Contents
Important User Information � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 2
Safety Precautions � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3
Required Tools� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3
Parts List � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
Fasteners - Not Supplied � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
Before Installation � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
Before Starting Assembly � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
Lighting � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6
Layout the Space � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6
Visit the Studio Makeup Station web page at wengercorp.com for more information.
Note: Please read and understand these instructions before proceeding�
Note: If you need additional information, contact Wenger Corporation using the information below�
©Wenger Corporation 2024
Wenger Corporation, 555 Park Drive, P�O� Box 448, Owatonna, Minnesota 55060-0448
Questions? Call�����USA: (800) 4WENGER (493-6437) • Worldwide: +1-507-455-4100 • wengercorp�com
8-light 30" (762 mm)
Studio Makeup Station
Printed in USA 2024-10
Installation Instructions
Studio
Makeup Station
®

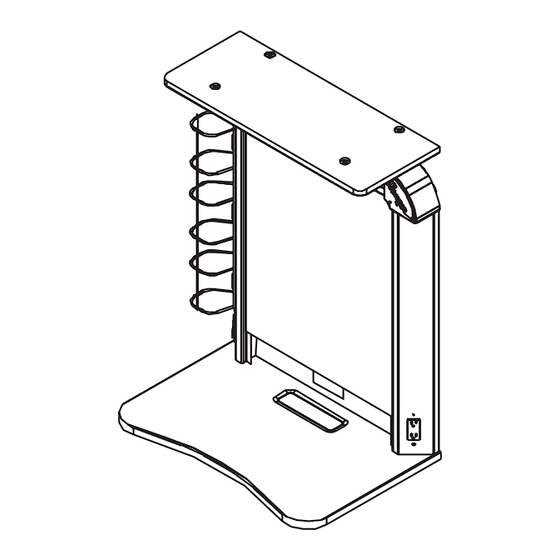

6-light 36" (914 mm)
Studio Makeup Station
Installation � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8
Install Mounting Bracket � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8
Install First Studio Makeup Station � � � � � � � � � � � � � � � � � � � � 10
Install Additional Studio Makeup Stations � � � � � � � � � � � � � � 14
Complete The Installation � � � � � � � � � � � � � � � � � � � � � � � � � � � 14
Attach The Mirror � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 15
Attach The Counter � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 15
Connect The Electrical Source � � � � � � � � � � � � � � � � � � � � � � � 16
Tackboard Installation � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 16
30" and 36" Models
9-light 36" (914 mm)
Studio Makeup Station
Part #187A200-07
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Wenger Studio Makeup Station
Summary of Contents for Wenger Studio Makeup Station
-
Page 1: Table Of Contents
Required Tools� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3 Install First Studio Makeup Station � � � � � � � � � � � � � � � � � � � � 10 Parts List �... -
Page 2: Important User Information
Wenger Corporation� Wenger Corporation does not assume any responsibility for any errors that may appear in these instructions� In no event will Wenger Corporation be liable for technical or editorial omissions made herein, nor for direct, indirect, special, incidental, or consequential damages resulting from the use or defect of these instructions�... -
Page 3: Safety Precautions
CAUTION CAUTION Never lift the Studio Makeup Station Do not connect the Studio Makeup Station assembly by the shelves or wire cages. to the electrical source until it's completely assembled. WARNING A licensed electrician must perform the electrical installation. The electrical source must be permanently wired and comply with local electrical codes. -
Page 4: Parts List
Parts List The Studio Makeup Station is shipped with all components in a single box, the main assembly, a corrugated sleeve containing the mirror, a hardware bag, the counter under the main assembly, the tackboard assembly (36" model only) in a corrugated sleeve, and the wall mounting bracket�... -
Page 5: Before Installation
1� Read and understand this installation instruction completely� 2� Open all cartons and make sure each includes a Studio Makeup Station, a hardware bag, the wall mounting bracket, a tackboard [36" (914 mm) model only], a mirror (packaged in a corrugated sleeve) and a counter�... -
Page 6: Lighting
30" (762 mm) model from an obstruction on either side (such as a wall, I-beam, cabinet, etc�)� c� If more than one Studio Makeup Station is being installed, measure 30" or 36" (depending upon the model) from the centerline and draw another vertical line for the centerline of the second station�... - Page 7 Before Installation (continued) Layout the Space (continued) *17-1/2" (445 mm) for 30" Model **30" (762 mm) for 30" Model 20-1/2" (521 mm) Minimum Distance to a Wall* Corner Top Surface Top edge of of Shelf mounting bracket Top of Shelf 68-1/2"...
-
Page 8: Installation
Installation Install Mounting Bracket 1� Remove the mounting bracket from the shipping box� 2� Locate the hardware bag and set it aside� 3� Align the mounting bracket to the wall with the top edge of the mounting bracket on the horizontal line and the centerline of the mounting bracket (user must mark the bracket centerline with chalk) aligned to the station centerline on the wall as shown below�... - Page 9 Installation (continued) Install Mounting Bracket (continued) 5� For walls with metal stud construction do as follows� a� Hold the mounting bracket in place and note the position of the studs� NOTICE The mounting bracket must cross at least one stud. b�...
-
Page 10: Install First Studio Makeup Station
Remove the cover and fold the sides down� CAUTION Cover At least two people are recommended to lift or move the Studio Makeup Station. 6-light or 5-light Unit The counter and the mirror cartons are shipped under the Studio Makeup Station... - Page 11 6� With two people working together, tilt the Studio Makeup Station into an upright position� a� Only handle the Studio Makeup Station by grasping the steel frame — do not lift or handle the Studio Makeup Station by grasping the wire light cages or the shelf. NOTICE Always start a row with a 6-light unit or a 5-light unit on the left end.
- Page 12 Place the frame onto the mounting bracket studs by engaging the studs with the frame upper bracket slots. Allow the Studio Makeup Station to rest on the two flange nuts on the mounting bracket studs. c. Screw a flange nut with the flange facing downward onto the top of each mounting bracket stud by hand.
- Page 13 NOTICE Always turn one nut clockwise and one nut counterclockwise the same amount to keep the Studio Makeup Station in the same relative position. This is important when leveling a group of Studio Makeup Stations. c. To lower the left side, turn the left lower flange nut clockwise and the right lower flange nut counterclockwise�...
-
Page 14: Install Additional Studio Makeup Stations
Complete the Installation 1� Fasten the bottom of the Studio Makeup Station frame to the wall with bottom frame clips as follows� a� Hold a bottom frame clip against the frame and mark the lower hole location for the wall anchor with a pencil as shown below�... -
Page 15: Attach The Mirror
Pan Head Screws 2� For drywalled wood stud or metal stud walls where a Studio Makeup Station only crosses one stud, a furring strip no smaller than 1" x 4" (not included) must be attached flush against the bottom of the counter. -
Page 16: Connect The Electrical Source
Notes to the Electrician: 1� The studio makeup station has separate conductors for the lights and the receptacle (see illustration below)� The wiring plan for the room may include separate circuits for lights and receptacles� 2� From N.E.C. Article 520.73 (2002): All lights and any receptacles adjacent to the mirror(s) and above the dressing table counter(s) installed in dressing rooms shall be controlled by wall switches installed in the dressing room(s)�...
