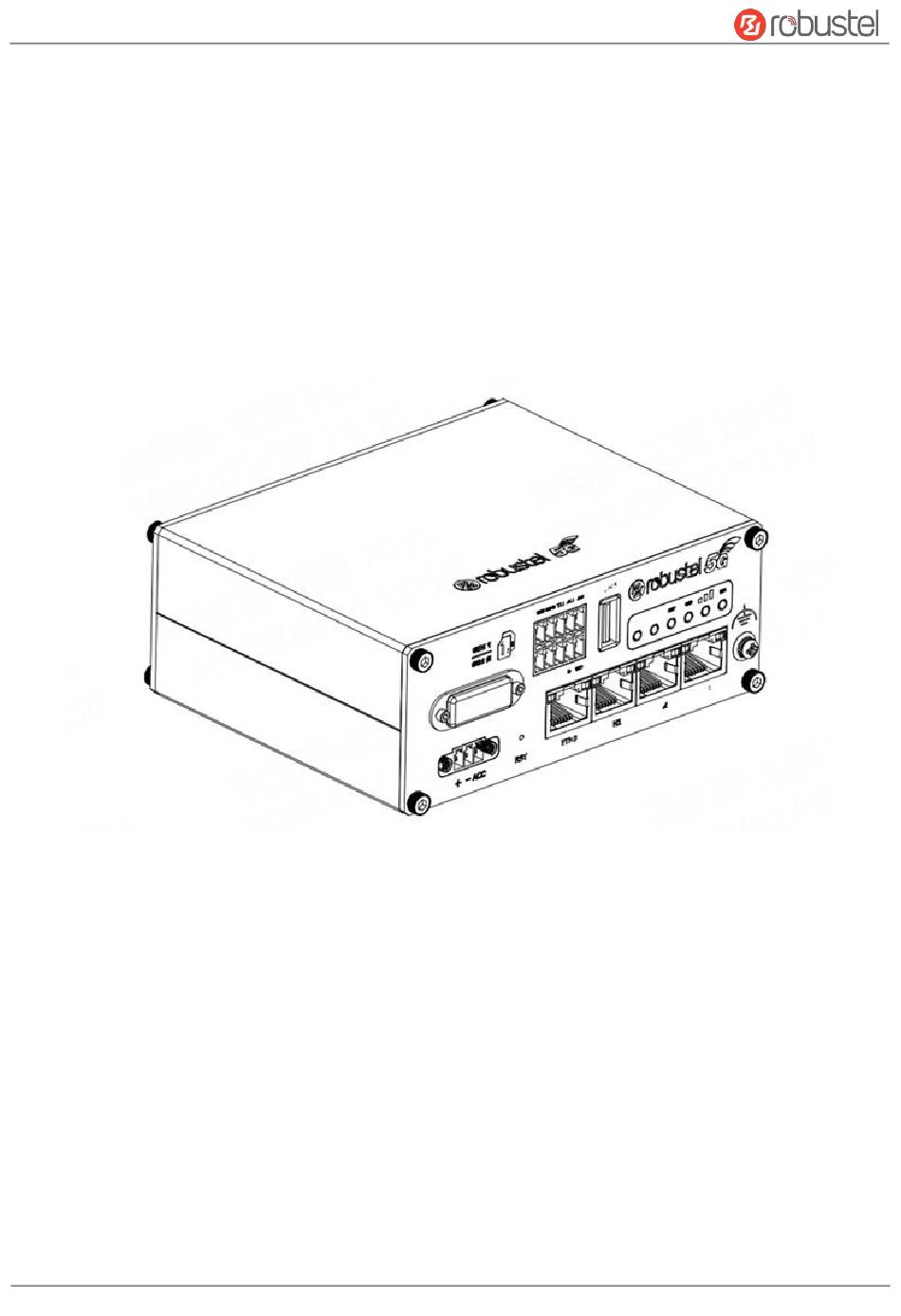

  • Page 1 Robustel R5020 Hardware Manual R5020 Hardware Manual Version: 1.0.6 Date: July 5, 2024 RT064_HM_R5020 1/13...
  • Page 2 Robustel R5020 Hardware Manual Regulatory and Type Approval Information Table 1: Toxic or Hazardous Substances or Elements with Defined Concentration Limits Name of Hazardous Substances the Part (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) (DEHP) (BBP) (DBP) (DIBP) Metal parts Circuit...
  • Page 3 Robustel R5020 Hardware Manual Radio Specifications for Europe RF technologies 3G, 4G, 5G, GNSS*, Wi-Fi Cellular Frequency* 3G: WCDMA: B1/B3/B8 4G: LTE FDD: B1/B3/B7/B8/B20/B28/B32 LTE TDD: B34/B38/B40/B42/B43 LAA: B46 5G: NSA/SA: n1/n3/n7/n8/n20/n28/n38/n40/n41/n77/n78 Wi-Fi Frequency 2.4 GHz: 2.412 - 2.472 GHz 5 GHz: 5.15 - 5.825 GHz...
  • Page 4 Cet émetteur ne doit pas être installé au même endroit ni utilisé avec une autre antenne ou un autre émetteur. Simplified EU & UK Declaration of Conformity We, Guangzhou Robustel Co., Ltd. are located at 501, Building #2, 63 Yongan Road, Huangpu District, Guangzhou, China, declare that this radio equipment complies with EU Radio Equipment Directive (RED) 2014/53/EU, Low Voltage Directive (LVD) 2014/35/EU, EMC Directive 2014/30/EU, UK Radio Equipment Regulations 2017, EMC Regulations 2016, Electrical Equipment (Safety) Regulations 2016.
  • Page 5 Robustel R5020 Hardware Manual The symbol indicates that the product should not be mixed with general household waste but must be sent to separate collection facilities for recovery and recycling. The symbol indicates that the product meets the requirements of the applicable EU directives.
  • Page 6 Robustel R5020 Hardware Manual Overview Robustel R5020 supports WCDMA 3G network, LTE 4G network, and NR 5G network to provide high-speed wireless network bandwidth for devices through wireless connection, and it has dual-SIM card backup to ensure stable wireless network connection.

  • Page 7: Interface Descriptions

    Robustel R5020 Hardware Manual Panel Layout (May Vary on Different Models) Front-View Back-View Interface Descriptions Power Supply. 3PIN 3.5mm pitch terminal block. Description Note Connect adapter or battery positive (red line) Connect adapter or battery negative (yellow line) Car ignition and flameout detection (green line)

  • Page 8: Led Indicator

    Note: The more details please refer to RT123_SM_RobustOS Software Manual, 2.3 Factory Reset. Ethernet Ports. There are four Ethernet ports on R5020, including ETH0 (Optional POE supported), ETH1, ETH2, ETH3. The ETH0 on the router can be configured as a WAN port, while ETH1, ETH2 and ETH3 can only be configured as a LAN port.

  • Page 9: Usb Interface

    Robustel R5020 Hardware Manual Digital IO & Serial Port. 2x5PIN 3.5mm pitch terminal block, 1 set of DO, 1 set of DI, 1 x RS232 and 1 x RS485. DI signal access, can be used for NPN/PNP type sensor signal or switch signal acquisition. DO signal output, can be used for NPN/PNP sensor control, please connect signals by referring to typical applications.

  • Page 10: Hardware Installation

    Robustel R5020 Hardware Manual Hardware Installation SIM Card Installation. Remove the SIM card cover to insert the SIM cards into the device, then screw up the cover. *Note: To ensure optimal performance and compatibility, it is recommended to use 2FF SIM cards that meet industrial-grade standards and feature an integrated design.

  • Page 11: Installation Method

    Robustel R5020 Hardware Manual Installation method： ② 35mm DIN Rail Installation Dimension diagram (unit:mm) ： Installation method： Grounding the Device. Grounding will help to prevent the noise effect due to electromagnetic interference (EMI). Connect the device to the site ground wire by the grounding screw before powering on.
  • Page 12 Robustel R5020 Hardware Manual Power Supply installation. Insert the power supply cord into the corresponding terminal block if needed, then insert the terminal block into the power connector. Connect the router to PC. Connect the Ethernet cable to any port labeled ETH0 to ETH3 on the bottom of the router, and connect the other end of the cable to your computer.
  • Page 13 Robustel R5020 Hardware Manual Login to the Device Connect the router’s Ethernet port to a PC with a After logging in, the home page of the web standard Ethernet cable. interface is displayed, then you can view system information and perform configuration on the Before logging in, manually configure the PC with device.
